Multi-Channel Layer Workflow Rules

Note:  These rules are only for layers and not applicable for Node Graph workflows.

Shader Models

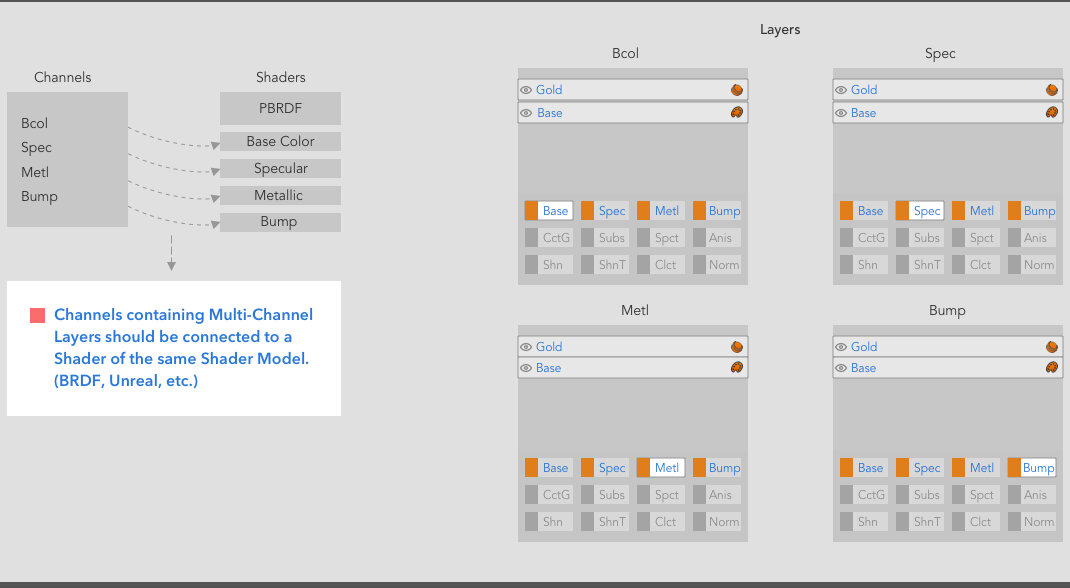

Channels containing multi-channel layers should be connected to a shader of the same shader model.

Channels containing multi-channel layers can be connected to multiple shaders with unique shader models but cannot be connected to multiple similar shaders.

Shader Inputs

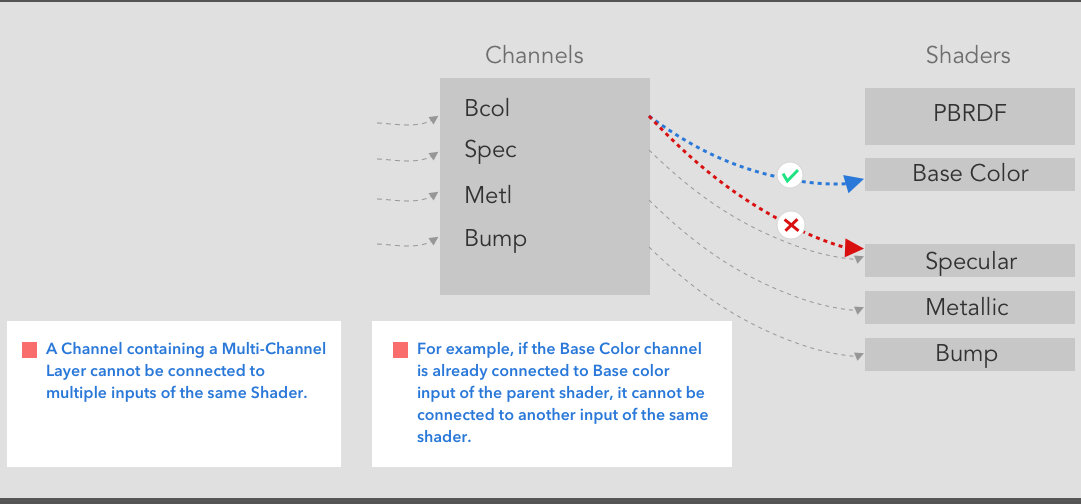

A channel containing a multi-channel layer cannot be connected to multiple inputs of the same shader.

Connecting New Channels to Shaders

Multi-channel layers are auto-extended when new channels are connected to the shader.

Article:  Read Q100488: Auto Extension and Auto Retraction of materials to learn more about auto-extension behaviour in Mari.

Disconnecting From a Shader

Multi-channel layers are converted within or removed from a channel when it is disconnected from the shader.

Use Cases

Auto-Extension Use Case

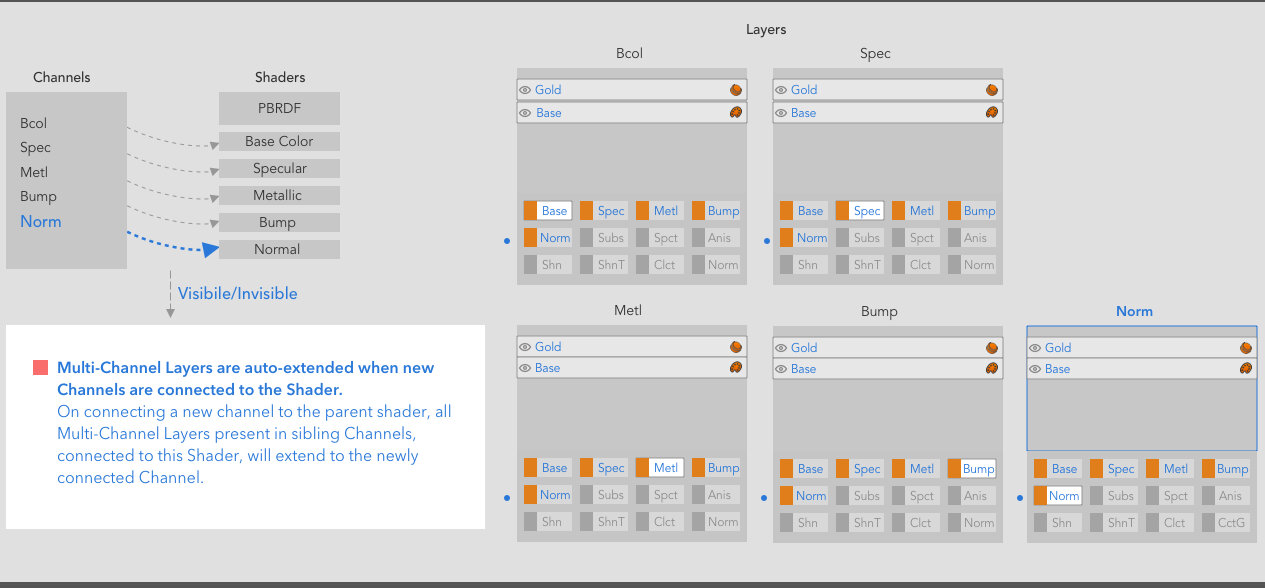

Multi-channel layers are auto-extended when new channels are connected to the shader.

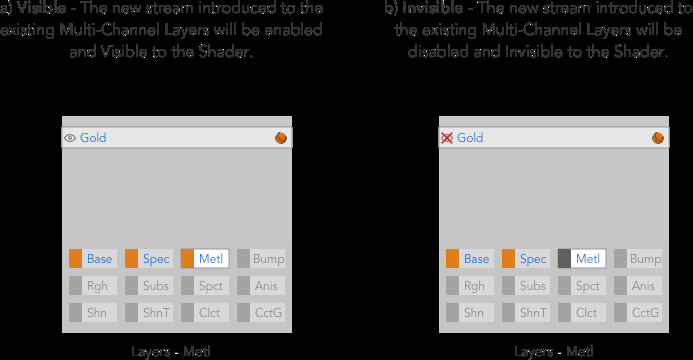

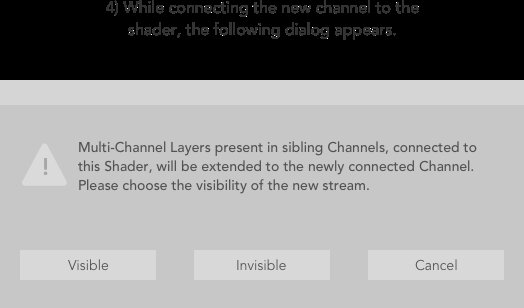

On connecting the new channel to the downstream shader, it should recognize the existing materials in layers and auto-extend to the new stream (connected channel) in the Multi-Channel Properties. The new stream, should be Visible or Invisible depending on the option selected in the dialog.



Note:  When a new channel is connected to a shader with no upstream multi-channel layers, the dialog will not appear as there is nothing to extend.

Multi-channel layers are converted within or removed from a channel when it is disconnected from the shader.

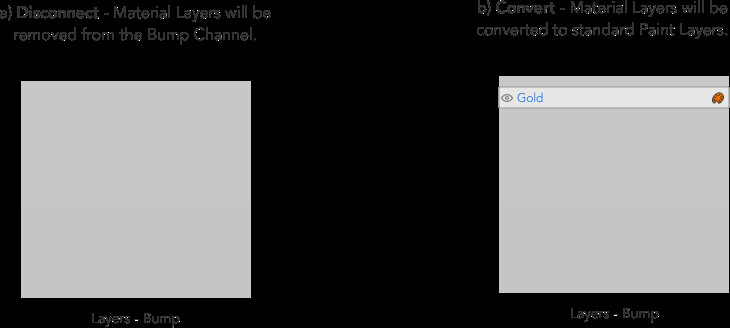

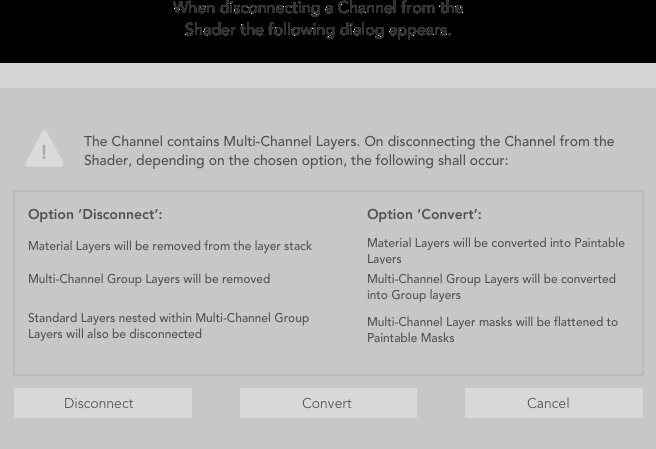

On disconnecting a channel from the downstream shader, its multi-channel layers should be disconnected, converted into standard layers, or removed depending on the option selected in the dialog.

Retraction Use Cases

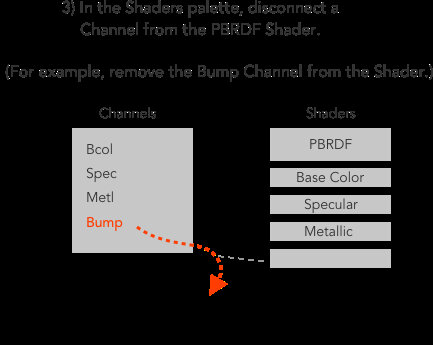

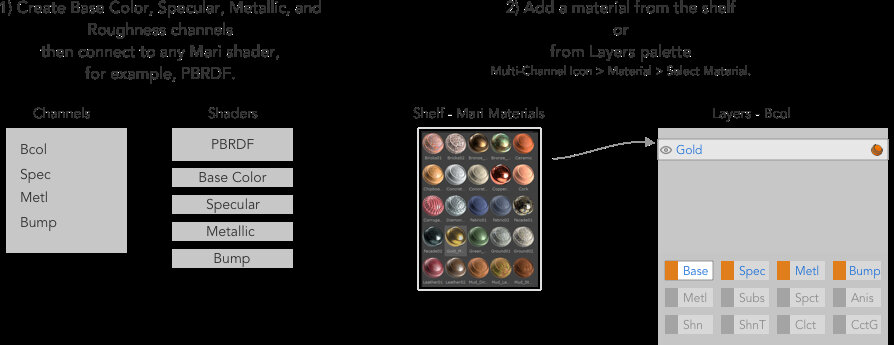

Case 1 - Material Layer

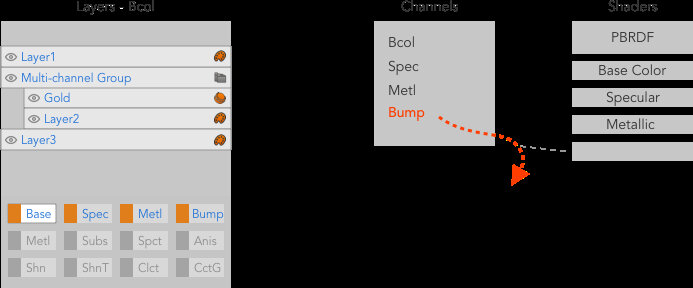

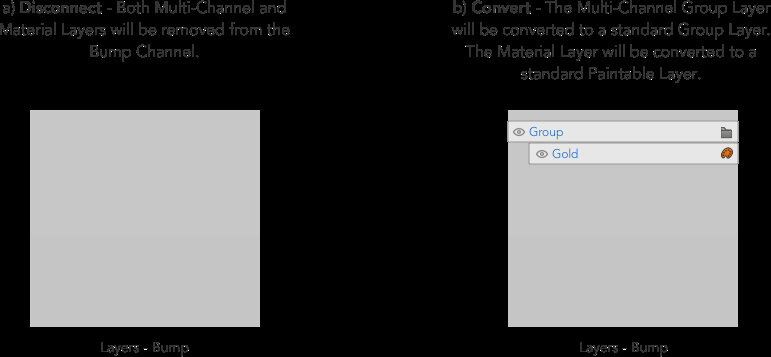

Case 2 - Material Layer with Multi-Channel Group

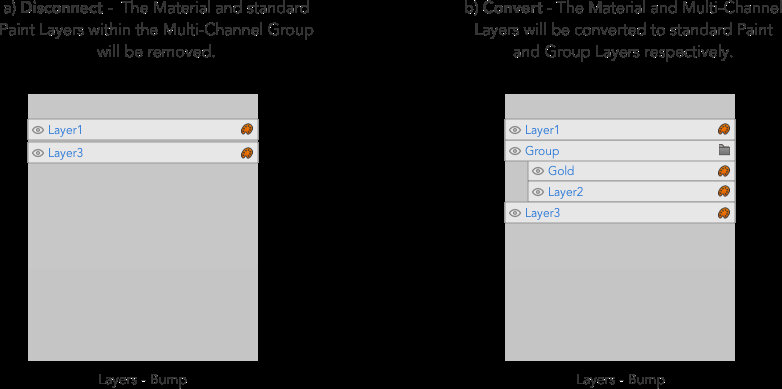

Case 3 - Multi-Channel Group with Standard Paintable Layers

Deleting Shaders

Deleting a shader will invoke retraction of multi-channel layers.

Deleting a shader from the Shaders palette triggers multi-channel retraction, as described above. The Retraction dialog sets the behavior for all Channels orphaned on shader deletion.

Merging Multi-Channel Layers

Merging multi-channel layers is not supported.

Grouping Materials

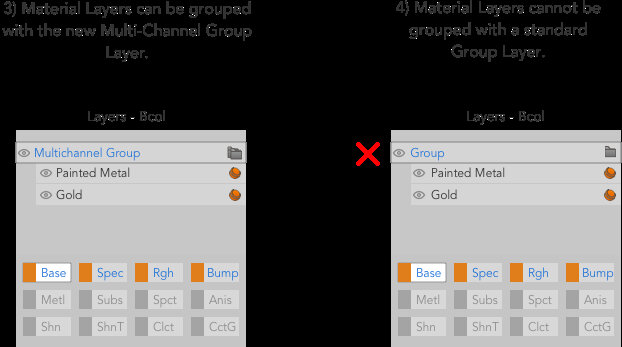

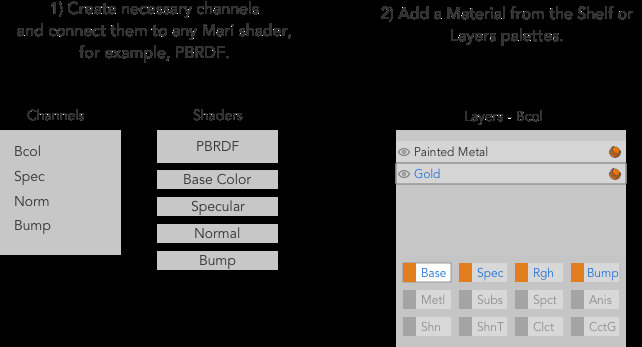

Materials cannot be grouped within a standard group layer.

Duplicating Shaders

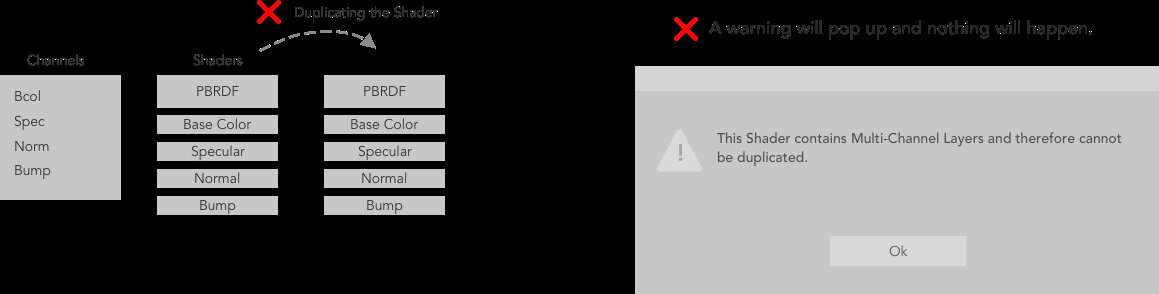

Shaders with upstream multi-channel layers cannot be duplicated.
