Bath Tile

The Bath Tile texture is one of the many procedurally generated textures provided with Modo. Procedural textures are mathematically created at render-time, and therefore have no fixed resolution, they can be magnified nearly infinitely with no visual loss in detail. The Bath Tile texture can be addressed by its two zones, the Background and Foreground colors. The texture modulates from one zone to the other based on your settings, each zone can have either a Value, or a Color and Alpha. The applied zone is dependent on the Layer Effects to which the texture is applied. For instance, if the texture is applied as a Displacement, the Value settings would be used, whereas setting the texture effect to Diffuse Color would use the Color and Alpha settings for Background and Foreground. This shader provides a square tile pattern with variable grout, tiles edges and tile height, similar to to the look of Bath Tile. The tiles can be staggered and random tiles can be removed.

Note: For information regarding adding and working with Shader Tree Items Layers, see the Shader Tree topic.

Note: Due to the nature of this procedural, the default Solid projection method produces no result. When applied, you need to modify the projection in the associated Texture Locator to a different type.
To select the Texture Locator, click on the small + icon preceding the layer name in the Shader Tree and click on the layer once revealed. In the Properties Panel, change the Projection Type to a UV map (see Working with UV Maps) or choose one of the geometric projection, such as Planar, Cylindrical, and Spherical, and size the texture accordingly.

Layer Properties

Enable	Toggles the effect of the layer on and off. This duplicates the functionality of toggling visibility in the Shader Tree. When disabled, the layer has no effect on the shading of the scene. However, Modo saves disabled layers with the scene, and they are persistent across Modo sessions.
Invert	Inverts the colors (RGB values) for the layer to produce a negative effect.
Blend Mode	Affects the blending between different layers of the same effect type. With this, you can stack several layers for different effects. For more about blending, see Layer Blend Modes.
Opacity	Changes the transparency of the current layer. If there are layers below this layer in the Shader Tree, reducing this value increasingly reveals the lower layers. Reducing the value always dims the effect of the layer.
Locator	Sets the association for the Texture Locator. Most texture layers have a Texture Locator that Modo automatically creates in the Item List. This defines the mapping of the texture (how Modo applies the texture) to the surface. You can specify alternate locators, but this is normally not required. Although you may want multiple texture items to share a single locator.
Projection Type	Defines how a texture/material is applied to a 3D surface. Types vary significantly in their effects. For a guide to each Projection Type see Projection Type Samples.
Projection Axis	The texture/material is projected down this axis. This applies to Planar, Cylindrical, Spherical, Cubic, Box, and, Light Probe projection types.

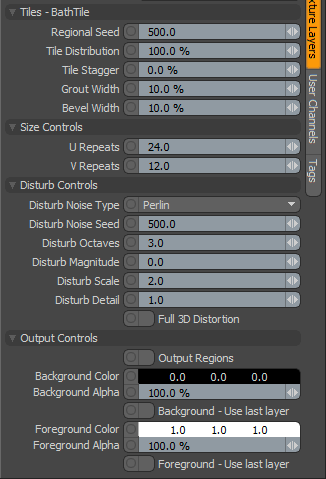

Bath Tile Properties

Tiles - Bath Tile
Regional Seed	The Seed value is the initial number used when generating the procedural values. Different Seed values produce different random variations and can be useful in changing the texture result, however, you need to use the same Seed value when it is necessary for items to retain the same variations.
Tile Distribution	Specifies the percentage of the surface covered by tiles.
Tile Stagger	Specifies the amount of staggering between tile rows. When the control is at a low value, the tiles line up vertically, with the tile rows becoming more staggered as the parameter is increased.
Grout Width	Specifies the amount of grout between the tiles.
Bevel Width	Specifies the width of the bevel on the tiles.
Disturb Controls - Alters the look of the generated procedural. The noise layer distorts the base texture based on the Disturb Magnitude.
Disturb Noise Type	Specifies the look of the texture distortion, with several Noise function types provided: • Perlin • Enhanced Perlin • Gradient • Value • Gradient Value • Impulse • Lattice • Bubble
Disturb Octaves	Similar to the Patch Levels setting, the Disturb Octaves value specifies the number of layers of noise when distorting the texture, in effect producing greater detail.
Disturb Magnitude	Specifies the strength of the distortion effect on the base procedural.
Disturb Scale	Specifies the size (scale) of the distortion effect on the base procedural.
Disturb Detail	Specifies the step size between each iteration of the noise used to disturb the texture.
Full 3D Distortion	Turns on Full 3D distortion, which yields better results, but takes longer to render.
Output Controls
Output Regions	When the Output Regions option is enabled, the procedural texture outputs random gray shades per region rather than outlines for tiles providing you a means to add random variety to the procedurally created texture. You can further control the amount of variation using the Regional HSV process layer.
Background Color/Value	Specifies the Color (or Value) of the texture's Background area, which ramps toward the Foreground Color/Value.
Background Alpha	Specifies the Alpha transparency of the Background Color.
Background - Use Last Layer	When enabled the Background Color area is completely transparent, revealing the shading results of any lower layers.
Foreground Color/Value	Specifies the Color (or Value) of the texture's Foreground area, which ramps toward the Background Color/Value.
Foreground Alpha	Specifies the Alpha transparency of the Foreground Color.
Foreground - Use Last Layer	When enabled the Foreground Color area is completely transparent, revealing the shading results of any lower layers.
