Waveforms

Concrete Texture Applied ArrowScallop Waveform Added To Concrete Texture

Each Enhance:Modo Waveform layer is a special type of Shader Tree layer that produces no results by itself because a Waveform layer modifies a similar texture layer below it in the Shader Tree hierarchy. For example, a Waveform layer would only affect a texture layer (such as a Diffuse layer) if the Waveform layer has its effect set to Diffuse and is above the texture layer. To affect a Displacement layer, you must change the Waveform layer's effect to Displacement as well. If you have multiple layers of the same type blended together, the Waveform layer only affects the nearest visible layer below it. Each Waveform type produces its own independent result.

If you are familiar with Photoshop's Curves functionality, then you might find it easier to understand the Waveform function. The Waveform function is a means to manipulate the values of the texture layer (just like Curves affect values in an image). If you make a graph of the input values versus the output values of a surface, the direct correlation of the input and output shows as a straight line. As you make adjustments to the graph, the values on the graph change. These adjusted values can modify the shades of gray across a procedural texture or the shape of a displacement map. In the examples, the image on the far left shows a displaced plane with an applied gradient ramp and offset that is the same height as its width to show a ramp at a 45-degree angle. If you apply various Waveform layers to the gradient, the other images show how the Waveform layers affect the values across the gradient ramp to illustrate the shaping ability of the Waveform function.


Displaced Plane

S-Curve Waveform

Sine Waveform

Stairs Waveform

Noise Waveform

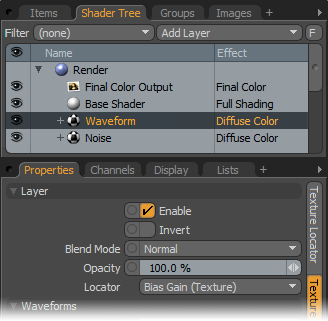

To work add a Waveform layer, select the Material Group item (for the texture) in the Shader Tree. Then, in the Add Layer list, select one of the available waveform options (Add Layer > Enhance:Modo Textures > a waveform). For additional information about adding layers and working with Shader Tree item layers, see the Shader Tree topic. Each waveform produces its own unique results. (Generally, the waveform's name suggests how it shapes the associated layer.) You can modify the attributes of the Waveform layer in its Properties panel.

Emodo Properties

Option

Description

Layer

Enable

Toggles the effect of the layer on and off to duplicate the functionality of toggling visibility in the Shader Tree. When disabled, the layer has no effect on the shading of the scene. However, Modo saves disabled layers with the scene, and they are persistent across Modo sessions.

Invert

Inverts the colors (RGB values) for the layer to produce a photonegative effect.

Blend Mode

Affects the blending between different layers of the same effect type. With this, you can stack several layers for different effects.

For more about blending, see the Layer Blend Modes topic.

Opacity

Changes the transparency of the current layer. Reducing this value increasingly reveals lower layers in the Shader Tree, if present, or dims the effect of the layer, itself, on the surface.

Locator

Sets the association for the Texture Locator. Most texture layers have a Texture Locator that Modo automatically creates in the Item List. This defines the mapping of the texture (how Modo applies the texture) to the surface. You can specify alternate locators, but the need to do so is rare. Still, you may want multiple texture items to share a single locator.

Waveform-Specific Controls

See below these tables for waveform-specific options and examples of those settings.

Layer Properties

Enable

Toggles the effect of the layer on and off. This duplicates the functionality of toggling visibility in the Shader Tree. When disabled, the layer has no effect on the shading of the scene. However, Modo saves disabled layers with the scene, and they are persistent across Modo sessions.

Invert

Inverts the colors (RGB values) for the layer to produce a negative effect.

Blend Mode

Affects the blending between different layers of the same effect type. With this, you can stack several layers for different effects.

For more about blending, see Layer Blend Modes.

Opacity

Changes the transparency of the current layer. If there are layers below this layer in the Shader Tree, reducing this value increasingly reveals the lower layers. Reducing the value always dims the effect of the layer.

Locator

Sets the association for the Texture Locator. Most texture layers have a Texture Locator that Modo automatically creates in the Item List. This defines the mapping of the texture (how Modo applies the texture) to the surface. You can specify alternate locators, but this is normally not required. Although you may want multiple texture items to share a single locator.

Projection Type

Defines how a texture/material is applied to a 3D surface. Types vary significantly in their effects. For a guide to each Projection Type see Projection Type Samples.

Projection Axis

The texture/material is projected down this axis. This applies to Planar, Cylindrical, Spherical, Cubic, Box, and, Light Probe projection types.

Waveform Properties

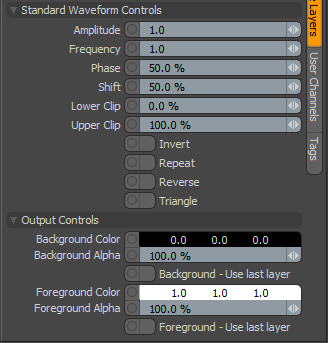

Waveform Controls

Standard Waveform Controls

Amplitude

Controls the maximum value of the waveform and scales all other values in relation to this maximum. Click to view examples of various Amplitude settings.

Frequency

Controls the number of waveform occurrences in a single cycle. A waveform only cycles multiple times when you enable Repeat. Click to view examples of various Frequency settings.

Phase

Moves the waveform forwards and backwards. Click to view examples of various Phase settings.

Shift

Moves the waveform up and down. Click to view examples of various Shift settings.

Lower Clip

Specifies a clip level for the Background Color to truncate values beyond the defined setting. Combined with the Upper Clip value, you can apply this option to extend or lessen the range of values for the texture. Click to view examples of various Lower Clip settings.

Upper Clip

Specifies a clip level for the Foreground Color to truncate values beyond the defined setting. Combined with the Lower Clip value, you can apply this option to extend or lessen the range of values for the texture. Click to view examples of various Upper Clip settings.

Invert

When enabled, flips the waveform vertically.

Repeat

When enabled, repeats the waveform and useful when if you set the Frequency value higher than 1.

Reverse

When enabled, flips the waveform horizontally.

Triangle

When enabled, mirrors the waveform on its own axis.

Output Controls

Background Color

Specifies the Color of the texture's background area, which ramps toward the Foreground Color.

Background Alpha

Specifies the Alpha transparency of the Background Color.

Background - Use Last Layer

When enabled, makes the Background Color area completely transparent to reveal the shading results of lower layers.

Foreground Color

Specifies the Color of the texture's foreground area, which ramps toward the Background Color.

Foreground Alpha

Specifies the Alpha transparency of the Foreground Color.

Foreground - Use Last Layer

When enabled, makes the Foreground Color area completely transparent to reveal the shading results of lower layers.

Examples of the Standard Waveform Controls

Amplitude 0%
Amplitude 0%
  Amplitude 25%
Amplitude 25%
  Amplitude 50%
Amplitude 50%
  Amplitude 75%
Amplitude 75%
  Amplitude 100%
Amplitude 100%
Frequency 1
Frequency 1
  Frequency 2
Frequency 2
  Frequency 3
Frequency 3
  Frequency 4
Frequency 4
  Frequency 5
Frequency 5
Phase 0%
Phase 0%
  Phase 25%
Phase 25%
  Phase 50%
Phase 50%
  Phase 75%
Phase 75%
  Phase 100%
Phase 100%
Shift 10%
Shift 10%
  Shift 25%
Shift 25%
  Shift 50%
Shift 50%
  Shift 75%
Shift 75%
  Shift 90%
Shift 90%
Lower Clip 0%
Lower Clip 0%
  Lower Clip 25%
Lower Clip 25%
  Lower Clip 50%
Lower Clip 50%
  Low Clip 75%
Lower Clip 75%
  Lower Clip 100%
Lower Clip 100%
Upper Clip 0%
Upper Clip 0%
  Upper Clip 25%
Upper Clip 25%
  Upper Clip 50%
Upper Clip 50%
  Upper Clip 75%
Upper Clip 75%
  Upper Clip 100%
Upper Clip 100%

Waveform-Specific Options

The tables provide explanations for options common to all Enhance:Modo waveforms. This topic explains the options specific to each type of waveform.

Waveforms - Bias Gain

Bias Gain Waveform Panel

Bias: Affects the attenuation (the gradations) between the primary and secondary colors in a colored texture or the gray values in a grayscale texture. By increasing this value Modo favors the primary color (or value) over the secondary one. By decreasing the value Modo favors the secondary color (or value).

Bias Gain Waveform: Bias 0%
Bias 0%
  Bias Gain Waveform: Bias 25%
Bias 25%
  Bias Gain Waveform: Bias 50%
Bias 50%
  Bias Gain Waveform: Bias 75%
Bias 75%
  Bias Gain Waveform: Bias 100%
Bias 100%

Gain: Affects the falloff of the gradient ramp between the primary color (or value) and the secondary color (or value). This is similar to a contrast control. Setting the Gain to 100% creates a very sharp contrast. Setting the value to 0% reduces the contrast between the two to an almost imperceptible amount.

Bias Gain Waveform: Gain 0%
Gain 0%
  Bias Gain Waveform: Gain 25%
Gain 25%
  Bias Gain Waveform: Gain 50%
Gain 50%
  Bias Gain Waveform: Gain 75%
Gain 75%
  Bias Gain Waveform: Gain 100%
Gain 100%

Waveforms - Fresnel

Fresnel Waveform Panel

Index of Refraction: Attenuates the Fresnel falloff rate based on this value. The Fresnel (pronounced Fruh-nell) effect describes refractive and reflective properties of a surface when the viewer's angle relative to the surface changes. The rate at which the change happens is expressed in the Fresnel function. When applied to a gradient (such as one applied to the incidence angle of a surface), the Fresnel function produces the appropriate falloff rate.

Fresnel Waveform: IOR 1.0
IOR 1.0
  Fresnel Waveform: IOR 2.0
IOR 2.0
  Fresnel Waveform: IOR 3.0
IOR 3.0
  Fresnel Waveform: IOR 4.0
IOR 4.0
  Fresnel Waveform: IOR 5.0
IOR 5.0

Waveforms - Gamma

Gamma Waveform Panel

Gamma Amount: Manipulates the values across a spectrum. Like the Fresnel Index of Refraction option, Gamma is a nonlinear adjustment function for manipulating the values across a spectrum with the curve is expressed as a mathematical function. When applied to a texture layer, adjustments to the mid-tone value (those between black and white favoring the darker side) match any gamma adjustment values applied to image map layers directly. A value of 1 produces no results because the output matches that of the input. Values less than 1 darken the gradient; values greater than 1 lighten it.

Gamma Waveform: Gamma 0.5
Gamma 0.5
  Gamma Waveform: Gamma 1.0
Gamma 1.0
  Gamma Waveform: Gamma 1.5
Gamma 1.5
  Gamma Waveform: Gamma 2.0
Gamma 2.0
  Gamma Waveform: Gamma 3.0
Gamma 3.0

Waveforms - Gaussian

Gaussian Waveform Panel

Gaussian Spread: Adjusts the values of a graduated texture layer based on a Gaussian distribution. A Gaussian distribution is a mathematical function that determines the spread of a number of values across a spectrum.

Gaussian Waveform: Spread 0.1
Spread 0.1
  Gaussian Waveform: Spread 0.3
Spread 0.3
  Gaussian Waveform: Spread 0.5
Spread 0.5
  Gaussian Waveform: Spread 0.75
Spread 0.75
  Gaussian Waveform: Spread 1.0
Spread 1.0

Waveforms - Impulse

Impulse Waveform Panel

Start Pulse: Clamps the values of the gradient at the user-defined Start position and maximizes all values in between based on both the Start Pulse and End Pulse values.

End Pulse: Clamps the values of the gradient at the user-defined End position and maximizes all values in between based on both the Start Pulse and End Pulse values.

Impulse Waveform: Start 0/End 25
Start 0/End 25
  Impulse Waveform: Start 25/End 50
Start 25/End 50
  Impulse Waveform: Start 25/End 75
Start 25/End 75
  Impulse Waveform: Start 50/End 75
Start 50/End 75
  Impulse Waveform: Start 75/End 100
Start 75/End 100

Waveforms - Noise

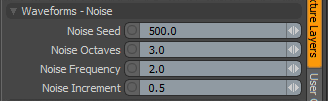

Noise Waveform Panel

Noise Seed: Specifies the initial number Modo uses when generating values. Different Seed values produce dramatically or subtly different results. Use the same Seed value when you want items to retain the same variations.

Noise Octaves: Determines the number of layers of noise that Modo combines to produce the final result. Higher values produce more randomized (and detailed) results.

Noise Waveform: Octaves 1
Octaves 1
  Noise Waveform: Octaves 2
Octaves 2
  Noise Waveform: Octaves 3
Octaves 3
  Noise Waveform: Octaves 4
Octaves 4
  Noise Waveform: Octaves 5
Octaves 5

Noise Frequency: Determines the number of occurrences of the noise function when applied to the surface.

Noise Waveform: Frequency 1
Frequency 1
  Noise Waveform: Frequency 2
Frequency 2
  Noise Waveform:  Frequency 3
Frequency 3
  Noise Waveform: Frequency 4
Frequency 4
  Noise Waveform: Frequency 5
Frequency 5

Noise Increment: Determines the number of noise bands across each Frequency occurrence.

Noise Waveform: Increment 0.0
Increment 0.0
  Noise Waveform: Increment 0.25
Increment 0.25
  Noise Waveform: Increment 0.5
Increment 0.5
  Noise Waveform: Increment 0.75
Increment 0.75
  Noise Waveform: Increment 1.0
Increment 1.0

Waveforms - Ramp

Ramp has no user-controlled settings.

Ramp Waveform Example

Waveforms - Rounded

Rounded has no user-controlled settings.

Rounded Waveform Example

Waveforms - S-Curve

S-Curve Panel

Lo Curve Shape: Determines the low-cutoff area for the gradient that the S-Curve waveform function produces.

S-Curve: Lo Curve 0
Lo Curve 0
  S-Curve: Lo Curve 1
Lo Curve 1
  S-Curve: Lo Curve 2
Lo Curve 2
  S-Curve: Lo Curve 3
Lo Curve 3
  S-Curve: Lo Curve 4
Lo Curve 4

Hi Curve Shape: Determines the high-cutoff area for the gradient that the S-Curve waveform function produces.

S-Curve: Hi Curve 0
Hi Curve 0
  S-Curve:  Hi Curve 1
Hi Curve 1
  S-Curve: Hi Curve 2
Hi Curve 2
  S-Curve: Hi Curve 3
Hi Curve 3
  S-Curve: Hi Curve 4
Hi Curve 4

Waveforms - Sawtooth

Sawtooth Waveform Panel

Falling Edge: Determines the position for the sudden minimum value drop in the graduated spectrum.

Sawtooth Waveform: Falling Edge 0
Falling Edge 0
  Sawtooth Waveform: Falling Edge 25
Falling Edge 25
  Sawtooth Waveform: Falling Edge 50
Falling Edge 50
  Sawtooth Waveform: Falling Edge 75
Falling Edge 75
  Sawtooth Waveform: Falling Edge 100
Falling Edge 100

Waveforms - Scallop

Scallop has no user-controlled settings.

Scallop Waveform Example

Waveforms - Sine

Sine has no user-controlled settings.

Sine Waveform Example

Waveforms - Smooth

Smooth Waveform Panel

Rising Smooth: Specifies the minimum value for the a smooth S-shaped curve. The Smooth waveform produces a result similar to the Impulse waveform by maximizing values between a low and high end, but between the minimum value and the maximum value it produces a smooth S-shaped curve.

Falling Smooth: Specifies the maximum value for the a smooth S-shaped curve. The Smooth waveform produces a result similar to the Impulse waveform by maximizing values between a low and high end, but between the minimum value and the maximum value it produces a smooth S-shaped curve.

Smooth Waveform: Rise 0/Fall 25
Rise 0/Fall 25
  Smooth Waveform:  Rise 25/Fall 50
Rise 25/Fall 50
  Smooth Waveform: Rise 25/Fall 75
Rise 25/Fall 75
  Smooth Waveform: Rise 50/Fall 75
Rise 50/Fall 75
  Smooth Waveform: Rise 75/Fall 100
Rise 75/Fall 100

Waveforms - Smooth Impulse

Smooth Impulse Waveform Panel

Start Pulse: Specifies the beginning of the maximal part of the Smooth Impulse waveform, which is a cross between the Impulse waveform and the Smooth waveform. The Start Pulse option reveals the Impulse waveform aspect of this combined waveform.

End Pulse: Specifies the end of the maximal part of the Smooth Impulse function, which is a cross between the Impulse function and the Smooth function. The End Pulse option reveals the Impulse waveform aspect of this combined waveform.

Smooth Impulse:  Start 0/End 25
Start 0/End 25
  Smooth Impulse: Start 25/End 50
Start 25/End 50
  Smooth Impulse: Start 25/End 75
Start 25/End 75
  Smooth Impulse: Start 50/End 75
Start 50/End 75
  Smooth Impulse: Start 75/End 100
Start 75/End 100

Smooth Pulse: Determines the amount of smoothing applied to the Smooth Impulse waveform. The Smooth Pulse option reveals the Smooth waveform aspect of this combined waveform.

Smooth Impulse: Smooth 0%
Smooth 0%
  Smooth Impulse: Smooth 25%
Smooth 25%
  Smooth Impulse: Smooth 50%
Smooth 50%
  Smooth Impulse: Smooth 75%
Smooth 75%
  Smooth Impulse: Smooth 100%
Smooth 100%

Waveforms - Smooth Step

Smooth Step Waveform Panel

Step Start: Determines the start position for the smoothed step ramp.

Smooth Step Waveform: Start 0%
Start 0%
  Smooth Step Waveform: Start 25%
Start 25%
  Smooth Step Waveform: Start 50%
Start 50%
  Smooth Step Waveform: Start 75%
Start 75%
  Smooth Step Waveform: Start 100%
Start 100%

Step Smooth: Determines the amount of smoothing applied to the step position.

Smooth Step Waveform: Smooth 0%
Smooth 0%
  Smooth Step Waveform: Smooth 25%
Smooth 25%
  Smooth Step Waveform:  Smooth 50%
Smooth 50%
  Smooth Step Waveform: Smooth 75%
Smooth 75%
  Smooth Step Waveform: Smooth 100%
Smooth 100%

Waveforms - Staircase

Staircase Waveform Panel

Staircase Levels: Determines number of discreet levels that the Staircase waveform breaks the smooth gradations into to produce a posterized effect.

Staircase Waveform: Levels 1
Levels 1
  Staircase Waveform: Levels 2
Levels 2
  Staircase Waveform: Levels 4
Levels 4
  Staircase Waveform: Levels 8
Levels 8
  Staircase Waveform: Levels 16
Levels 16

Level Slant: Interpolates between the step levels to produce a less abrupt change from one step level to the next.

Staircase Waveform: Slant 0%
Slant 0%
  Staircase Waveform: Slant 25%
Slant 25%
  Staircase Waveform: Slant 50%
Slant 50%
  Staircase Waveform: Slant 75%
Slant 75%
  Staircase Waveform: Slant 100%
Slant 100%

Examples of Applied Waveforms

This gallery of rendered images illustrates the Waveform functionality.


Noise as Diffuse Color Base




Grid as Diffuse Color Base




Cellular as Diffuse Color Base


Noise as Displacement Base




Grid as Displacement Base




Cellular as Displacement Base


Rounded Waveform Applied to Base




Rounded Waveform Applied to Base




Rounded Waveform Applied to Base


Rounded Waveform Applied to Base




Rounded Waveform Applied to Base




Rounded Waveform Applied to Base


Sine Waveform Applied to Base




Sine Waveform Applied to Base




Sine Waveform Applied to Base


Sine Waveform Applied to Base




Sine Waveform Applied to Base




Sine Waveform Applied to Base


Noise Waveform Applied to Base




Noise Waveform Applied to Base




Noise Waveform Applied to Base


Noise Waveform Applied to Base




Noise Waveform Applied to Base




Noise Waveform Applied to Base
