CaraVR features several forms of help, in a variety of locations.

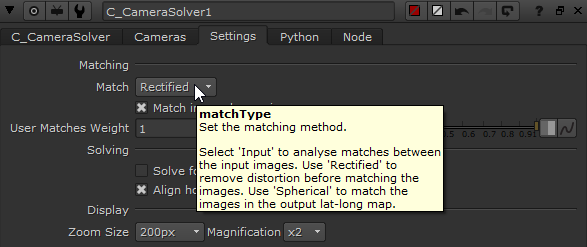

Most controls offer concise instructions in the form of tooltips.To display the tooltips, move your mouse pointer over an interface control or a node parameter.

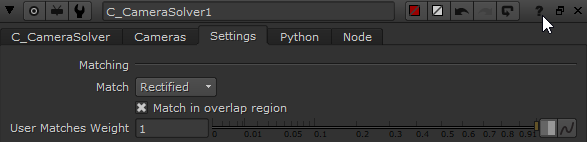

To view a tooltip for a node, move your mouse pointer over the ? icon in the node's Properties panel.
Viewing the Context-Sensitive Online Help
The context-sensitive online help includes a comprehensive description of each node and its parameters. To display these descriptions in your default web browser, click the ? icon in the node's properties panel.
Selecting the Help Source
In CaraVR, the context-sensitive help content may differ depending on what you've selected as the help source in the Preferences.
|1.||Press Shift+S on the Node Graph to open the Preferences dialog.|
|2.||Go to the Behaviors > Documentation tab.|
|3.||Set documentation source to:|
• local - Use CaraVR's built-in help system. This is included in the CaraVR installation and does not require an Internet connection.
Note: When you click on a ? button on a node, CaraVR searches the following locations for HTML files with the same name as the requested node (for example, c_stitcher.html):
1. Directories contained in the NUKE_PATH environment variable.
2. The /$HOME/.nuke and /$HOME/.nuke/Documentation directories.
3. Your local plugins directory.
• On Windows, this is either C:\Program Files\Common Files\CaraVR\2.1\plugins\ or C:\Program Files (x86)\Common Files\Nuke\2.1\plugins\
• On Mac OS X, this is /Library/Application Support/CaraVR/2.1/plugins/
• On Linux, this is /usr/local/CaraVR/2.1/plugins/
4. The CaraVR installation directory.
• foundry - Use the help system available on our website. This contains the most up-to-date information, but requires an Internet connection.
Note: On Windows, you may have to add a firewall program or port exception to view the most up-to-date help from our website. If the connection is blocked, CaraVR falls back to the local copy.
• custom - Use your own custom help system.
|4.||If you set documentation source to local, you can either:|
• enable auto port to automatically assign a free documentation server port, or
• use local port to specify a local documentation server port manually and port range to define a range of ports to attempt. Typically, the local port value should be 1024 or higher. Setting the value to 0 causes a port to be automatically assigned.
Note: To be able to use the online help from multiple sessions of CaraVR running at the same time, you must enable auto port.
|5.||If you set documentation source to foundry:|
• the foundry host field displays our documentation server host address.
• use foundry port to specify our documentation server port.
|6.||If you set documentation source to custom:|
• set custom host to your documentation server host address. This must be an Internet Protocol version 4 (IPv4) address.
• use local port to specify a local documentation server port. Typically, the local port value should be 1024 or higher. Setting the value to 0 causes a port to be automatically assigned.
• use custom port to specify a custom documentation server port.
Contacting Customer Support
Should questions arise that the documentation fails to address, you can visit the Support Portal at support.foundry.com.
