CaraVR provides a monitor out plug-in for the Oculus CV1, DK2, HTC Vive/Vive Pro, and StarVR DK3, which work in a similar way to Nuke’s existing SDI plug-ins.

Supported Headsets

The following table shows the headsets supported by CaraVR and the drivers required, by operating system:

Headset

Windows

Mac OS X/macOS

Linux

Oculus Rift DK2

Oculus SDK 1.3 or later

OpenHMD

OpenHMD

Oculus Rift CV1

Oculus SDK 1.3 or later





HTC Vive/Vive Pro

SteamVR



OpenHMD

StarVR DK3

StarVR SDK 1.0.0*





* We recommend using version 1.0.0 of the StarVR SDK for monitor output to the StarVR DK3 headset. Other versions of the SDK may work, but have not been fully tested.

Note:  We can't guarantee HMD performance on all combinations of hardware and graphics cards on Mac and Linux. Please contact support.foundry.com or the HMD manufacturer for specific guidance.

Reviewing in Nuke's Node Graph

You can review your VR work from the Node Graph environment using Nuke's monitor output as follows:

1.   Ensure that your headset is plugged in and active on your OS before launching Nuke. See Installation and Licensing for more information.

Note:  If you're using a headset on multi-GPU machines, ensure that the device is connected to the GPU that handles the monitor output not the internal computation.

2.   Press S on your keyboard with the pointer over the Viewer to display the Viewer node's Properties panel.
3.   Check enable monitor output and select your headset device from the monitor output device dropdown.

Note:  On Linux, the headset output cannot be differentiated from other sources, so it's a matter of trial and error to find the correct monitor feed.

4.   Set the monitor output mode as required. Nuke can output content ranging from 1K to 8K.

The image is expected to be in latlong, so for mono output 2:1 lat long and for stereo output 4:1 side by side.

For stereo view support, either:

write out the left and right views into a single frame comprised of two latlongs horizontally, with left eye to the left and right eye to the right, or

use the SideBySide node to display the left and right views from a multi-view .exr or .sxr file.

Tip:  If you're playing back footage in Nuke's Viewer, you can right-click in the Viewer and select No incomplete stereo, for a more comfortable experience.

Reviewing in Nuke Studio's Timeline

You can also review your VR work from the timeline environment using Nuke Studio's monitor output as follows:

1.   Ensure that your headset is plugged in and active on your OS before launching Nuke Studio. See Installation and Licensing for more information.

Note:  If you're using a headset on multi-GPU machines, ensure that the device is connected to the GPU that handles the monitor output not the internal computation.

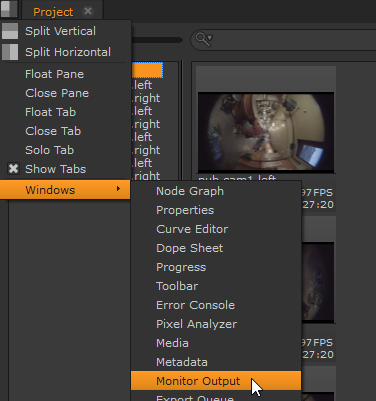

2.   Open the Monitor Output panel by navigating to the contents menu and selecting it from the dropdown.

The controls are similar to those found in vanilla Nuke, but they are presented differently.

3.   Select you headset from the device dropdown on the far left.

See the Nuke Online Help for more information on Monitor Output in the timeline environment.

Setting the Field of View

You can override the default field of view (FOV) setting in headsets using the FN_CARA_HMD_FOV environment variable. The variable accepts a numeric value representing the angle you want to set as the FOV in the headset. There's no minimum, but values over 110° can produce unexpected results.

For more information on setting environment variables, see the Nuke Online Help.
