The workflow for the Scene Explorer will be familiar if you’ve used the Katana Scene Graph. Both the USD Scene Graph and the Katana Scene Graph panels in the Scene Explorer share working set columns for essential operations, including visibility in the viewer and renderer. However, the USD Scene Graph adds two USD-specific working set columns so that you can have more control over payloads and prim activation.

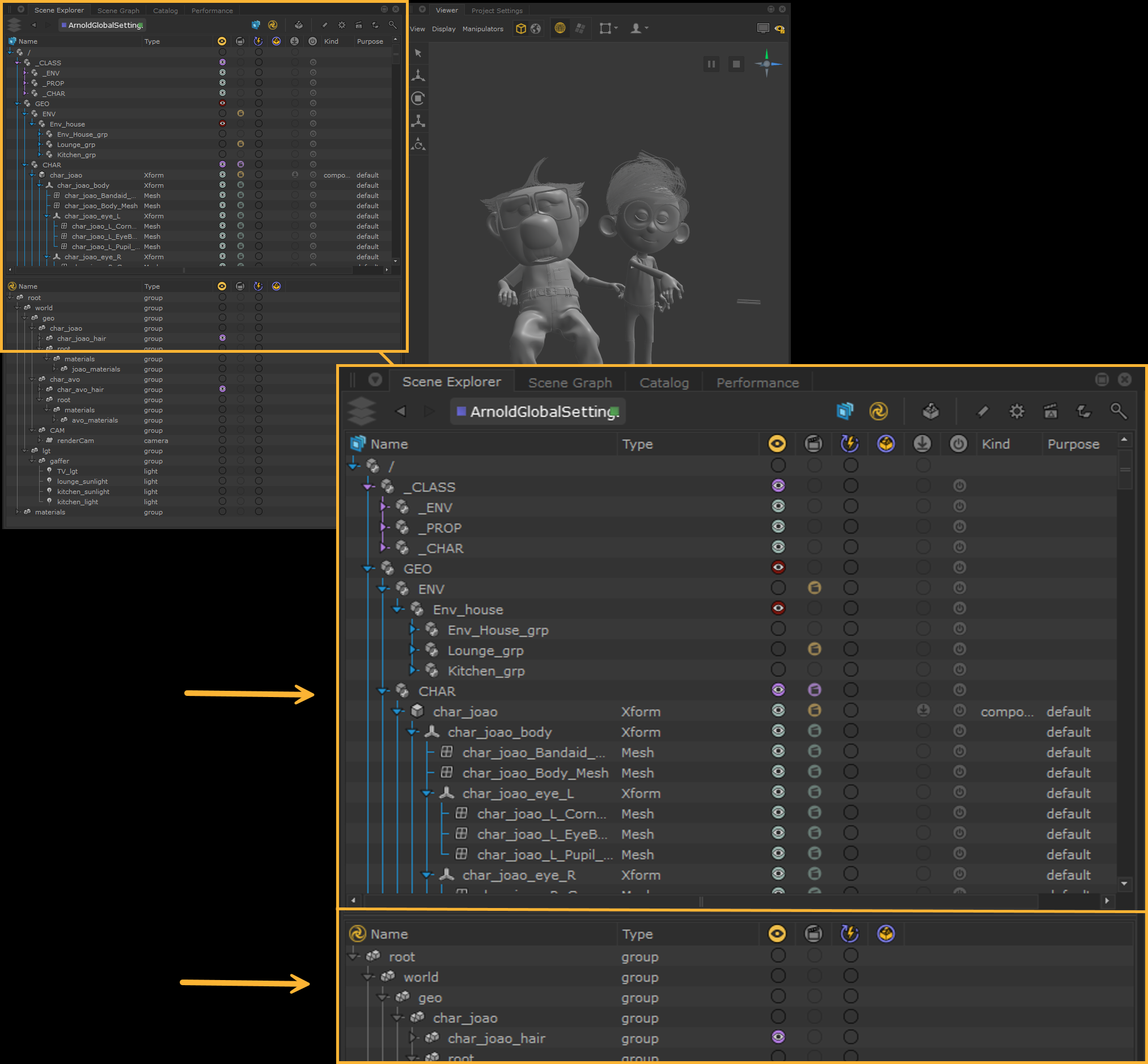

As you can see in the image below, the Scene Explorer tab includes both the USD Scene Graph and the Katana Scene Graph beneath.

The Scene Explorer. The top section is the USD Scene Graph, and the bottom is the Katana Scene Graph.

Each scene graph is identified by the USD or Katana logo in the top-left corner of the panel next to the Name column.

Note:  To hide the Katana Scene Graph in this panel, either drag the top of the panel bar either to the top or bottom or by toggling either the USD or Katana logo located at the top of the panel.

Use the three selection buttons at the top of the Scene Explorer tab to display or hide the USD Scene Graph, or/and the Katana Scene Graph, or/and the Collections panel.

If a panel is hidden, its icon is greyed-out.

The Collections panel is split into Katana and USD sections. Hiding the Katana or USD section of the main Scene Explorer tab by clicking the USD Scene Graph and Katana Scene Graph toggle buttons also causes the respective section of the Collections panel to hide.

Data Columns

The USD Scene Graph part of the Scene Explorer tab has four columns of key information for each item:

Common Working Set Columns

The USD Scene Graph shares four working set columns with the Katana Scene Graph:

The Viewer Visibility, Render Inclusion, and Live Render Updates columns control visibility in the viewer and renderer. To find out how to work with these, see Working Sets.

The Collections working set shows which locations have a collection on them.

Using the Collections Working Set

• To view which collections are available, click the Collection icon in the Collections working set. Once selected, the collection is displayed in the Collections panel above. Any selected collection in the working set can also be saved as a bookmark.

• Right click on a collection and choose Collect and Select - this expands the branches and automatically selects them in the Scene Explorer.

• Right click on a collection and choose Collect and Show - this displays all the paths contributing to that collection in a new window.

For more about Collections, see Pattern-Based Collections with USD.

USD-Specific Working Set Columns

The USD Scene Graph includes two columns for payload management and prim activation/deactivation. See Payloads in the Scene Explorer, and Activating and Deactivating Prims.

Styling in the Scene Explorer

Prim Specifiers determine the order of operations when building up a USD scene. Seeing whether prims are defined, over or class helps you to quickly debug your USD composition.

The Scene Explorer allows you to quickly gain visibility of your scene setups, via visual cues to indicate information such as prim specifiers, visibility, instance proxies..

In the Scene Explorer, the tree lines styling will change based on certain prim rules:

• Defined prims show a blue branch in regular font

• Abstract (class) prims show a purple branch

• Instance proxy prims are displayed as dotted lines

Additionally, font styling is used to indicate the following:

• Over prims in undefined locations show a dimmed font

• Inactive prims show a dark strike-through font

Abstract prim - Example:

Abstract prims can be locations under a class, such as the example seen below, and are often utilised to tentatively bring assets in the scene, to be later placed on the stage. A class prim defines a prim meant to act as a template for other prims. They ensure uniformity and reusability throughout the scene by allowing other prims to reference, inherit or specialise it, to inherit its characteristics.

Abstract prims will be present in the usd document, however will not be present on the stage. Therefore abstract prims indicated via purple hierarchical lines in the Scene Explorer, cannot be previewed in the Viewer tab.

Note:  This image showcases an example that can be found under Help > Example Projects > Native USD > Importing and Building USD stages.

Undefined over - Example

An undefined over is an override made on a primitive that is not defined. Here we are doing an override on a cube, but this cube was not previously created with the “def” primSpec. These undefined overs are shown in the Scene Explorer as dimmed.

Inactive locations - Example

Inactive locations will be seen in the Scene Explorer as dimmed and strike-through.

In the example, the lenses of the glasses have been set to inactive in the incoming USD document. This is indicated via the Scene Explorer, the same way that pruned locations are seen in Katana’s geolib’s panel in the Scene explorer.

Note:  Locations in USD cannot be deleted! The closest thing it has to removing elements permanently is by setting the active property on the prim location.

Another way you can identify inactive prims, is through the Active working set column . The icon against the Active column will have changed if a prim is inactive: See Activating and Deactivating Prims.

Another way to see whether a prim is active, is through the Attributes tab, under the Metadata section. See Inspecting USD Properties Using the Attributes Tab.

Tip:  The UsdActiveSet node can be used to make a location either inactive or active, this will persist in the scene and output USD document. Alternatively, the actions made in the Active working sets within the Scene Explorer are temporary.

Instance proxies - Example:

Additionally, prims that have the property instanceable set to true, will be indicated in the Scene Explorer via dotted lines. This is to indicate prims that are an instance (an uneditable copy) of another prim location. This means any changes made to the instance proxy prims (prims that are downstream) will be ignored.

In this example, the pen and the pencil pot are all derived from the same prim, and therefore are all instances of that prim. This is a great way to build your stage in USD for prims that are repeated many times, as it can greatly improve performance.

To learn more about Scene Graph Instancing, refer to Scenegraph Instancing in OpenUSD's USD Glossary.

To learn more about Prim Specifiers, see Specifier in OpenUSD's USD Glossary.
