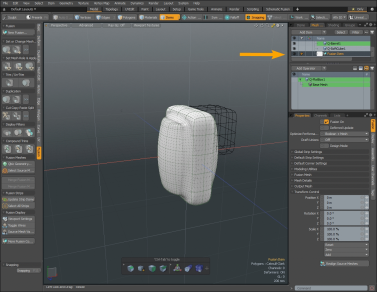

Enables/disables the evaluation and display of the Fusion Item

When enabled, the mesh is only updated on mouse up. This is useful when you're editing complex meshes and continuous updates are not smooth.

Note:  Deferred updating doesn't work smoothly while Preview is open and active. Pausing Preview while editing in the 3D viewport allows deferred updating to perform normally.

Allows you to optimize MeshFusion performance by caching Boolean operations, or caching meshes (strips and surface patches). Both forms of optimization limit the reevaluation of the Fusion Item to those elements affected by the current editing operation.

Note:  Mesh caching is only applied if the Mesh Mode is set to Draft

The following options are available:

• Off - optimization is disabled.

• Boolean - caches Boolean operation only.

• Boolean + Mesh - both Boolean and mesh caching is enabled. This is the default and recommended setting.

Note:  MeshFusion only takes advantage of mesh optimizations when the Fusion Item’s Mesh Mode is set to Draft. Best performance is achieved when optimization is used in conjunction with Deferred Update.

Improves the performance while working on a model by automatically and adaptively splitting the Fusion Item into active and inactive parts.

The active part contains all Primaries and Trims necessary for the current editing, based on the selected Source Mesh. No Fusion strip geometry is generated or displayed in the 3D viewport for the active part. Instead, normal z-buffering is used to increase rendering efficiency. For information on Primaries and Trims, see Mesh Roles and Relationships.

The inactive part contains all of the Fusion objects remaining (not selected) from the Source Meshes. Fusion strip geometry is generated and displayed in the 3D viewport for the inactive parts.

The following options are available:

• Off - the entire Fusion model is reincorporated. All Unions are evaluated and all Fusion strips are restored and displayed in the 3D viewport.

• Dynamic Separation - When activated, the model is split into two parts; the active part that you are editing and the other inactive parts you are not editing. The Fusion strip geometry at the junction of the union is not displayed for the active selected source mesh. All of the Fusion strip geometry at the junction of the unions are displayed for non-selected items (inactive parts).

Note:  There is a delay at the start of editing if the selection has changed (the length of delay is related to complexity of the Fusion Item).

• Full Separation - When activated, the entire model is split into as many separate parts as possible to get the best possible performance. There is no selection-based reconfiguration and therefore no delay when editing begins. Fusion strip geometry at the junction of the unions are not displayed for active or inactive parts.

Video:  Watch the following video for an overview.
- Draft Unions

An internal override of various Fusion Item properties. When enabled, some Fusion Item and strip properties are internally overridden (but retained).

Strips become extremely narrow and strip corners become sharp. The overridden properties are the following:

• Strip Width

• Strip Density

• Corner Density

• Corner Rounding

Properties are restored when Design Mode is disabled. This mode is useful for improving performance, avoiding transient errors, and diagnosing meshing errors.

The amount of rows of polygons that form the strip.

The smoothing of Strip Corner quads. 0 is maximum sharpness.

Set strip widths by absolute distance (in millimeters) or relative distance (in percentage). Toggled by Switch Width Mode.

Toggles Use Absolute Strip Widths.

Sets strip quad length to an absolute distance. This is a global setting which only applies to all of the Fusion Item's strips.

Sets the default strip quad length as the absolute distance. This may be overridden by individual Strip Item settings.

Sets the length of quads along a strip relative to adjacent quad sizes.

This option increases strip density based on curvature.

Sets the strip width as absolute distance.

Note:  Editing the individual Strip Item settings overwrites the defaults.

Enforces the constant width regardless of edge angle.

Determines the bevel amount. 0% is a flat bevel, 100% is fully rounded.

Specifies the amount of corrective smoothing at sharp turns along the strip.

Forces the strip crossing edges to quickly recover to perpendicular position. The distance of the recovery is specified in the Recovery Length property.

Note:  Some strip intersections require crossing edges to be non-perpandiular.

• Off - Cross edges return to perpendicular gradually over the entire strip segment length.

• Linear - Cross edges return to perpendicular linearly over specified Recovery Length.

• Smooth - Cross edges return to perpendicular smoothly (ease in and out) over specified Recovery Length.

• Ease Out - Cross edges return to perpendicular easing out over specified Recover Length.

Sets the distance of the crossing edges to return to be perpendicular.

Strips density ration near corners.

Strips edge rounding near corners.

Toggles the visibility of source meshes.

Selects all source meshes.

Select all items.

Sets the preferred output subdivision levels of all source meshes of the Fusion Item to their current subdivision levels.

Sets the subdivision levels of all source meshes of the Fusion Item to their preferred output subdivision levels.

Sets the subdivision levels of all source meshes of the Fusion Item to one less than their preferred output subdivision levels.

Converts pre-10.2 Fusion Items to the new workflow, updates Fusion Items edited in the Schematic to the new workflow.

Note:  Fusion models manually created or edited in a Schematic viewport are not compatible with the new workflow. However, it is possible to work with an entirely manual Schematic Fusion model. For more information, see Legacy Fusion Items.

Removes the Fusion Item, keeping the source meshes.

Checks for known internal errors.

Specifies the mesh type for the 3D viewport display and output. The following options are available:

• Draft - Best Performance - Recommended for full performance optimization. This option is not recommended for Output (Strips and Surfaces are not unified).

• Airtight Draft - Sets to the minimum airtight properties. Strips and surfaces are unified but no further refinement or optimization of the mesh is performed. This option may be slightly faster than other airtight mesh modes.

• Airtight Final - Uses properties to produce the best topology output. Strips and surfaces are unified. Closely spaced vertices are merged. Pairs of tri-polygons are converted to quads where possible. No Selection Sets, Parts, or Material groups are created.

• Airtight Final w/Parts - Uses the same mesh topology properties as Airtight Final and creates polygon Selection Sets, Parts, and Material groups. These are helpful when making selections for material assignment or further modeling of the output mesh.

When set, it creates individual materials for each seam-enclosed part. Each part is an individual patch. A patch is a group of polygons surrounded by a loop of seams or strips.

• Airtight Final Item Parts - Creates the same mesh topology as the Airtight Final mode. Like Airtight Final w/Parts, this option creates polygon Selection Sets, Parts, and Material Groups. However, those polygon sets are based on the source meshes rather than individual patches (groups of polygons surrounded by a loop of strips). Complex models containing many intersecting surfaces may generate dozens or hundreds of parts when using Airtight Final w/Parts. With this option, one Part/Material/Selection Set per source mesh is created.

Video:  Watch the following video for an overview.
- Material Grouping

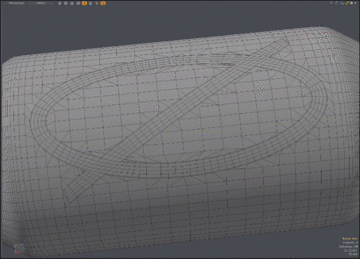

Creates only the strip polygons. The surface mesh is not generated. This is useful for procedural and direct modeling based on strips. For example, feeding this fusion item into a procedural using a Merge Meshes operation. This makes it easier to select this geometry to modify.

Creates Mesh UVs for display and output.

Note:  The source mesh must have UVs. For more information, see Create UV Tool.

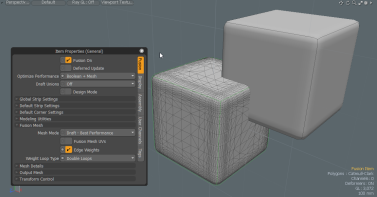

MeshFusion simulates Catmull-Clark edge-weighting by internally adding edge loops to the source meshes (original source meshes are unchanged). The following options are available:

Double Loops - Adds two edge loops on either side of each weighted edge. Provides best fidelity to the CC surface, but produces denser Fusion meshes that may slow performance.

Single Loops - Adds a one edge loop on either side of each weighted edge. This option produces a surface that is often indistinguishable from that created with Double Loops. It produces cleaner, less dense, Fusion mesh items.

Note:  With certain source mesh topologies, fidelity to actual CC surface may be lower and greater Fusion SubDiv levels may be automatically enforced (effectively canceling the lower density benefits).

Adaptive Loop Count - Determines the best loop count (single or double loops) based on the nature of source mesh topology. Double loops are only created on those edges where single looping have fidelity and density requirement disadvantages.

Relaxes the mesh topology to produce more uniform polygons.

Note:  This option is usually not needed or recommended. It slows performance (especially with high iteration values), and may cause surface irregularities as described below. You should only use this option if you have problems with further modeling of the output mesh.

MeshFusion may produce small irregular. For example, very long and narrow quads and tris, especially when small source meshes intersect with large quads on another source mesh. Relaxing the mesh makes those irregular quads more uniform. This may help when further modeling is performed on the output mesh, therefore preventing problems that can occur when certain types of distortions are applied to irregular meshes.

However, relaxation can cause perturbations of the mesh (lumpiness) in areas where mesh curvature is significant as compared to the size of the polygons being relaxed.

Note:  Applies to Final Mesh Mode types only.

Determines how much the mesh relaxes and how far away from the strips the relaxation spreads. Specify the number of mesh topology relaxation iterations. The default value is 32.

Note:  Applies to Final Mesh Mode types only.

Determines how much the mesh relax range is. The Relax Range is measured in quads from the strip edges. The default value is 4.

Note:  Applies to Final Mesh Mode types only.

Merges very closely spaced vertices along strip boundaries. Generally, this is helpful to produce lighter and cleaner meshes. However, when outputting very low density meshes surface irregularities can be introduced, creating denting and lumpiness around strip corners. The percentage value determines how aggressive Fusion merges the vertices. Lower values raise tolerances based on distance and curvature.

Uses cage vertices of the source meshes. This is useful for creating very low density Fusion meshes from simple, angular source meshes.

Normally, source meshes are interpreted as Catmull-Clark surfaces, which means their vertices move significantly from there original ‘cage’ locations. When creating Fusion meshes based on simple, angular meshes and low Fusion SubDiv levels (0 or 1), this option maintains that angular quality by not allowing that CC shift. The vertices of the Fusion mesh remain identical to the source mesh.

Note:  This is not recommended for curved surfaces.

Adds an extra row of edges along strip boundaries lying on the adjacent surface. This effectively ‘insulates’ the irregular polygons found at the surface/strip boundary, allowing those parts of the mesh to be edited (for example, moved relative to each other) without the surface anomalies that typically occur when disturbing those irregular polygons.

This is useful for some specific post-Fusion modeling methods.

Note:  This is ignored when the Mesh Mode type is set to Draft.

Creates a frozen copy of the Fusion mesh.

Options vary based on the Mesh Mode used.

If the Mesh Mode is set to Airtight Final, the following dialog displays:

If the Mesh ModeMesh Modes set to Airtight Final w/Parts or Airtight Final Item Part, the following dialog displays:

Tip:  Alt + Click skips the display of the Output Options dialog and converts the mesh immediately, applying the last-used settings set.

The following options are available:

• Name - Allows you to provide a unique name for your output.

• Duplicate Original - Converts the original Fusion Item. Recommended: Your original Fusion Item may be more reliable than a copy. We recommend to always enable this option.

• Merge Vertices - Ensures that you get a single unified mesh; an airtight mesh.

Note:  We recommend to enable this option. The only exception is when you want to have a disconnected mesh. For example, where the surface and strip portions are not contiguous.

• Create Materials Groups - Creates a container to hold material polygon groups. To view a list of materials created, open the Mesh Ops Lists tab and Statistics sub-tab and then expand Polygons > Material. Individual materials are listed for each source mesh used in your Fusion Item, using the source mesh name from which they came from. The Materials are also available in the Shader Tree. From the Shader tree you can select a material group and modify their properties. For more information, see Material Group.

Note:  You won’t be able to use materials that require UV’s unless the Fusion Mesh UVs option is enabled and the source meshes contain UVs.

• Create Mesh - Allows you to provide a unique name for the new Mesh Item.

Tip:  When you have enabled either the Airtight Final w/Parts or Airtight Final Item Parts Mesh Mode, you can view a list of your parts by opening the Lists tab and expand Polygons > Part. Select the <Fusion Item> Strips item to view all of the polygons that belong to all of the strips used in your model. This is handy for advanced users who use scripting to manage their models.
