Using and Writing Kernels

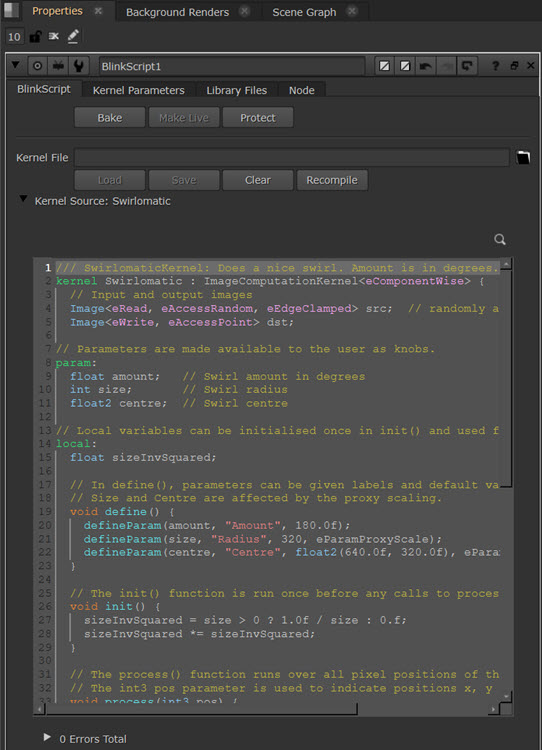

Kernel management is taken care of on the first tab of the BlinkScript properties panel. Double-click the BlinkScript node in the Node Graph to display its properties.

Note: Loading, editing, and saving kernels is only available if you have a NukeX license.

Loading Kernels

Enter the file-path in the Kernel File field or click the folder icon to browse to the kernel's location.

Tip: BlinkScript kernels use the .rpp file extension.

Click Load.

The selected kernel is compiled and read into the Kernel Source field.

Editing Kernels

You can edit existing kernels, or write your own from scratch by clicking Clear and entering code in the Kernel Source field. You won't see any results in the Viewer until you click Recompile.

Tip: You can change how text in the Kernel Source appears using the controls in the Preferences > Panels > Script Editor tab. After saving your preferences, close and then re-open the Kernel Source in the Properties panel to apply the changes.

The first line in a kernel is always a declaration, similar to a C++ class and derived from ImageComputationKernel, which describes a kernel used to produce an output image.

Note: BlinkScript in Nuke only works with ImageComputation kernels. It does not work with reduction or rolling kernels. Reduction and rolling kernels can, however, be used in the Blink API as part of an NDK plug-in written in C++.

In the case of the default SwirlomaticKernel:

kernel SwirlomaticKernel : ImageComputationKernel<eComponentWise>

Parameters for the kernel are declared in the param section, in the same way as you would declare member variables in a C++ class. If your kernel doesn’t require any parameters, you can omit this section.

For example, the SwirlomaticKernel has three parameters amount, size and centre.

param:

float amount; //Swirl amount in degrees.

int size; //Swirl radius.

float2 centre; //Swirl centre.

When a kernel is compiled inside the BlinkScript node, controls are generated for each of the kernel’s parameters and added to the Kernel Parameters tab. In the case of SwirlomaticKernel, its three custom parameters are accessible in the Kernel Parameters tab.

Kernel parameters can be C++ built-in types such as float or int. Vector and matrix parameters are also supported. The following table contains the control types that the Kernel Source can expose on the Kernel Parameters tab in the properties panel.

Control Type	Description
Bool_knob	Parameters of type bool are represented by a Bool_knob, or single checkbox.
Int_knob	Parameters of type int generate an Int_knob with a single numeric input box. Right-clicking in the input box displays a menu allowing you to animate the value.
MultiInt_knob	Parameters of type int2, int3, int4, or int[ ] generate a MultiInt_knob, with multiple numeric input boxes. As with the Int_knob, right-clicking in the input boxes displays a menu allowing you to animate the values.
Float_knob	Parameters of type float generate a Float_knob with a numeric input box, linear slider, and animation menu button. The slider ranges from 0 to twice the default value of the parameter, or 0 to 1 if no default value is set.
XY_knob	Parameters with two floating-point values, types float2 or float[2], are interpreted as positions in 2D space and generate an XY_knob with an adjustable handle in the Viewer.
XYZ_knob	Parameters with three floating-point values, types float3 or float[3], are interpreted as positions in 3D space and generate an XYZ_knob with an adjustable handle in the 3D Viewer.
AColor_knob	Parameters with four floating-point values, type float4 or float[4], are interpreted as colors with alpha, and generate an AColor_knob. This initially displays a single entry box and slider, a button to split to four entry boxes, a button to display the Nuke color wheel, and a swatch showing the current color with an eyedropper for sampling in the Viewer.
Array_knob	Parameters with nine floating-point values, including float3x3, are displayed as an Array_knob with a 3x3 grid. Parameters with sixteen floating-point values, including float4x4, are displayed as an Array_knob with a 4x4 grid.
MultiFloat_knob	Parameters with numbers of floating-point values not already listed above, such as float[5], generate a MultiFloat_knob with a numerical entry box for each value, a single linear slider, and an animation menu button. The slider ranges from 0 to 1.

The BlinkScript Editor in the Kernel Source field has a variety of features to help with writing and editing code.

It may also be helpful to consult the Blink Developer Guide. There are also several example kernels to get you started.

Editing Features

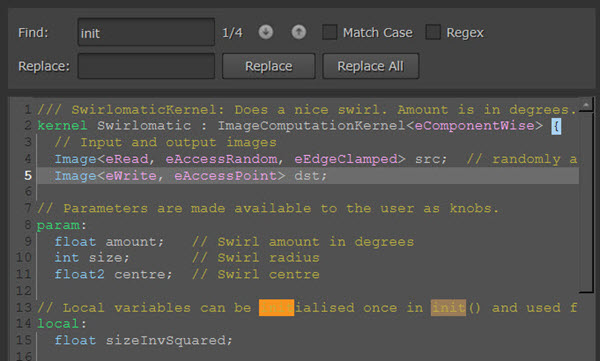

• Find and Replace - by clicking the magnifying glass icon or CTRL+F, you can find and replace a particular string or regular expression in your code.

• Indentation - the editor will auto indent new lines and show indentation guide line overlays.

• Closing brackets - the editor will auto close brackets when an open bracket is typed.

• Dynamic highlighting - the editor will auto highlight the brackets of the current function.

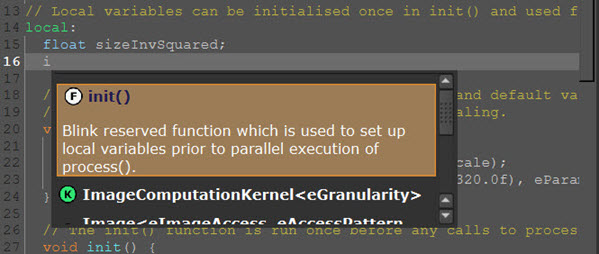

• Tab Menu - when you begin to type a string or function, you can hit Tab to see a list of possible options or functions. When clicked into, the item will give a more detailed description of the current keyword or argument.

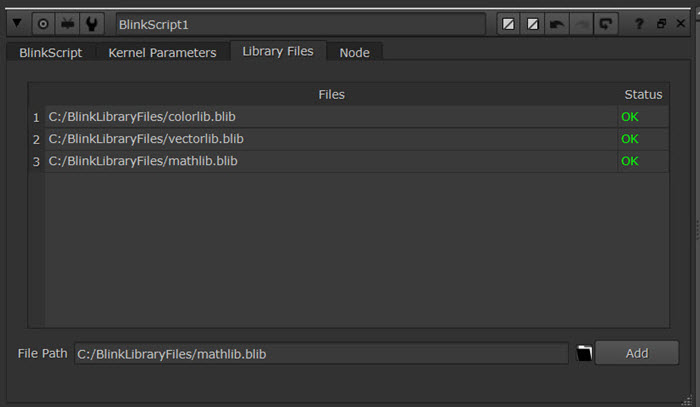

• Library Files - add common functions and code snippets from an external file through the Library Files tab. You can then reuse these functions without having to rewrite them - just call the function name in the kernel. Read the Loading Library Files page for more information about this feature.

Note: Note: Documentation for Library Files functions can be added to the tab menu of the BlinkScript editor. Type with a ‘///’ comment before the function to add documentation.

• Keyboard Shortcuts-

Keyboard Shortcut	Function
cmd/ctrl+F	Find and replace.
tab	Trigger tab menu.
cmd/ctrl+Enter	Recompile BlinkScript.
cmd/ctrl+/	Create multiple comments.
cmd/ctrl+tab OR cmd+shift+tab	Tabbing multiple lines.

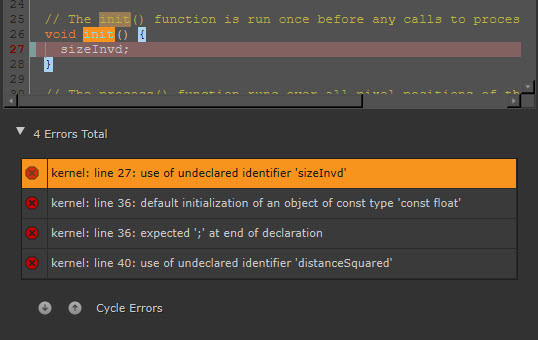

• Error Accordion - all error messages are displayed directly in the editor when the kernel is recompiled, and can be cycled through. Any Library File errors will also appear here.

Saving Kernels

Enter the file path in the Kernel File field or click the folder icon to browse to the intended location.

Tip: BlinkScript kernels use the .rpp file extension.

Click Save.

The selected kernel is saved to the specified location. There is no compile step during saving as the kernel is compiled when loaded.
