usg::ShaderSchema Class Reference

ShaderSchema class creates ShaderDesc definitions stored in the registry. More...

#include <ShaderSchema.h>

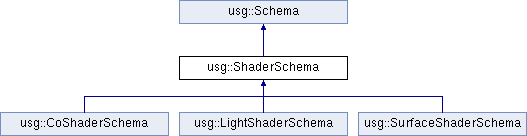

Inheritance diagram for usg::ShaderSchema:

Public Member Functions
	ShaderSchema (const SchemaDescription &pluginDescription, const ShaderPropertyArray &properties, const fdk::KeyValueMap &metadata=fdk::KeyValueMap())
const Token &	baseTypeName () const override
	Return a string indicating this is a ShaderSchema.
ShaderSchema *	asShaderSchema () override
	Used to cast a Schema to a ShaderSchema.
virtual CoShaderSchema *	asCoShader ()
	Used to cast a ShaderSchema to a CoShaderSchema.
virtual SurfaceShaderSchema *	asSurfaceShader ()
	Used to cast a ShaderSchema to a SurfaceShaderSchema.
virtual LightShaderSchema *	asLightShader ()
	Used to cast a ShaderSchema to a LightShaderSchema.
virtual VolumeShaderSchema *	asVolumeShader ()
	Used to cast a ShaderSchema to a VolumeShaderSchema.
virtual const std::string &	sourceCode (const Token &sourceType) const
virtual const bool	sourceCode (ShaderSource &shaderSource) const
virtual const ShaderPropertyArray &	shaderProperties () const
	Return the input/output shader properties.
Public Member Functions inherited from usg::Schema
	Schema (const SchemaDescription &pluginDescription, const SchemaPropertyArray &properties, const fdk::KeyValueMap &metadata=fdk::KeyValueMap())
virtual	~Schema ()
	Dtor in implementation required for std::unique_ptr to work.
virtual void	getSourceTypes (TokenSet &types) const

Additional Inherited Members
Static Public Member Functions inherited from usg::Schema
static const SchemaDescription *	find (const char *schema_name)
	Find a SchemaDescription by schema name and optional source-type - NOT the plugin .so filename!
Static Protected Member Functions inherited from usg::Schema
static Schema *	create (const char *schema_name)
Protected Attributes inherited from usg::Schema
std::unique_ptr< ShaderSchemaHandle >	_pImpl

Detailed Description

ShaderSchema class creates ShaderDesc definitions stored in the registry.

Constructor & Destructor Documentation

usg::ShaderSchema::ShaderSchema	(	const SchemaDescription &	pluginDescription,
		const ShaderPropertyArray &	properties,
		const fdk::KeyValueMap &	metadata = fdk::KeyValueMap()
	)

The shader class name is taken from the ShaderSchemaDescription::schemaName(), so the subclass must pass its ShaderSchemaDescription.

Member Function Documentation

virtual const std::string& usg::ShaderSchema::sourceCode ( const Token &  sourceType ) const

virtual

Return the implementation code string for a specific sourceType when the shader is the single shader in a material network. Subclass should have already declared the type in its list of supported types, so if there are multiple sources the type string should be checked.

virtual const bool usg::ShaderSchema::sourceCode ( ShaderSource &  shaderSource ) const

virtual

Creates the source code for the shader for a specific target (e.g. glslfx). Returns true if the target is supported.
