DD::Image::Op::Description Class Reference

#include <Op.h>

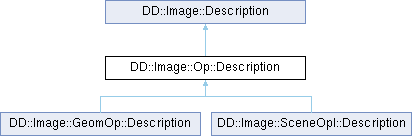

Inheritance diagram for DD::Image::Op::Description:

Public Member Functions
Op *	constructor (Node *node) const
	Nuke calls this to create an Op instance.
	Description (const char *n, OpConstructor c, License *lic=nullptr)
	Description (const char *n, OpConstructor c, NodeBuilder nodeBuilder)
	Same but for internal Nuke Nodes with no license requirements.
	Description (const char *opClassName, OpConstructor c, const char *nodeBaseName, License *lic=nullptr)
	mFnDeprecatedInNuke17 ("Description(menu, OpConstructor) has been deprecated, use Description(OpConstructor) instead") Description(const char *n
const char OpConstructor	name (n)
const char OpConstructor	nodeBase (nullptr)

Static Public Member Functions
static const Description *	find (int i)

Public Attributes
const char *	name
	Nuke script command name.
const char *	nodeBase
	Base Node (OpNode subclass) name.
const char OpConstructor	c: constructor_(c)
Public Attributes inherited from DD::Image::Description
const char *	compiled
const char *	plugin
License *	license

Protected Types
using	OpConstructor = std::function< Op *(Node *)>

Static Protected Member Functions
static void	add (DD::Image::Description *)

Protected Attributes
OpConstructor	constructor_

Static Protected Attributes
static const Description *	current_

Additional Inherited Members
Public Types inherited from DD::Image::Description
using	DescriptionList = std::vector< Description * >
using	NodeBuilder = std::function< Node *(void *)>
Protected Member Functions inherited from DD::Image::Description
void	ctor (void(*f)(Description *))
void	ctor (void(*f)(Description *), NodeBuilder nodeBuilder)

Detailed Description

A subclass of Op that wants to appear on Nuke's menu or be created by a Nuke script command must create one or more static instances of this structure. The constructor adds itself to a list which Nuke scans to find all the possible operators.

The code that goes into a plugin to create the entry looks like this:

static const char* const MYCLASS = "MyOp";
class MyOp : public Op {
static const Description description;
public:
const char* Class() const {return MYCLASS;}
...
};

static Op* build(Node* node) {return new MyOp(node);}
const Op::Description MyOp::description(MYCLASS, build);

It is required that the string inside the description and returned by Op::Class() be the exact same pointer. This is checked by Nuke. It is also required that this string is the same as base name of the plugin file, or the name of a .tcl file that says "load foo" where foo is the name of this plugin file. Nuke only stores the name in the saved script, so this is necessary for it to find the plugin again.

Constructor & Destructor Documentation

Description() [1/2]

DD::Image::Op::Description::Description ( const char *  n, OpConstructor  c, License *  lic = nullptr  )

inline

The constructor adds this Op to the internal table of available script commands.

If the License is not null then it is tested and if the test fails the description is not added to the table, making it impossible to call the constructor. You should check the license pointer when your constructor is called to make sure some cracker has not changed it or cleared it.

Description() [2/2]

DD::Image::Op::Description::Description ( const char *  opClassName, OpConstructor  c, const char *  nodeBaseName, License *  lic = nullptr  )

inline

Same but with a separate base Node (OpNode subclass) class to create for this Op type. In this mode the Nuke script command name remains the Op's name (Grade, Blur, etc) but allows the constructed Op to be a child of a specific Node class.

If the Node class is not found a warning is output and the Node constructor falls back to creating a generic OpNode.

Member Function Documentation

add()

void Op::Description::add ( DD::Image::Description *  p )

staticprotected

Internals of the constructor, adds the description to the internal array and calls add_callback.

find()

const Op::Description * Op::Description::find ( int  i )

static

Return the i'th Op::Description known about, or return a null pointer for the last one. This does not load any plugins, it only returns the ones that have been loaded so far.
