USD in Nuke's Classic 3D System

Universal Scene Description (USD) is an open source file type from Pixar that supports any number of assets organized into virtual sets, scenes, and shots. You can share .usd files freely between applications that support the format and edit them non-destructively.

Note:  Nuke currently supports .usd and .usda files and can display color, normals, and UV information in the Viewer.

Note:  For more information on the USD format, see https://graphics.pixar.com/usd/docs/index.html

You can import cameras, lights, meshes and point clouds from USD files (.usd file format) into a Nuke Classic 3D System scene. Data imported from .usd files are brought in using the relevant native 3D nodes in Nuke. For example, reading in lights from a .usd file are imported as Light nodes, and cameras are imported as Camera nodes. Meshes and point clouds are imported to ReadGeo node types.

This means if you’ve started using USD elsewhere in your pipeline, you can continue to use it to carry the data you need directly into Nuke, without converting to a different format.

Note:  To learn more about USD in the New 3D System, see 3D Compositing with the New 3D System.

Choosing the 3D Viewer Type

Nuke 13.0 onwards includes a new Hydra 3D viewport, which uses hdStorm as a new renderer. The Hydra Viewer is more consistent with other applications in your pipeline, such as Katana, Solaris, or USDView, and the represents the output of the ScanlineRender node.

Nuke's New 3D System uses a Hydra renderer, and nodes in the Classic 3D System use a "Nuke" renderer.

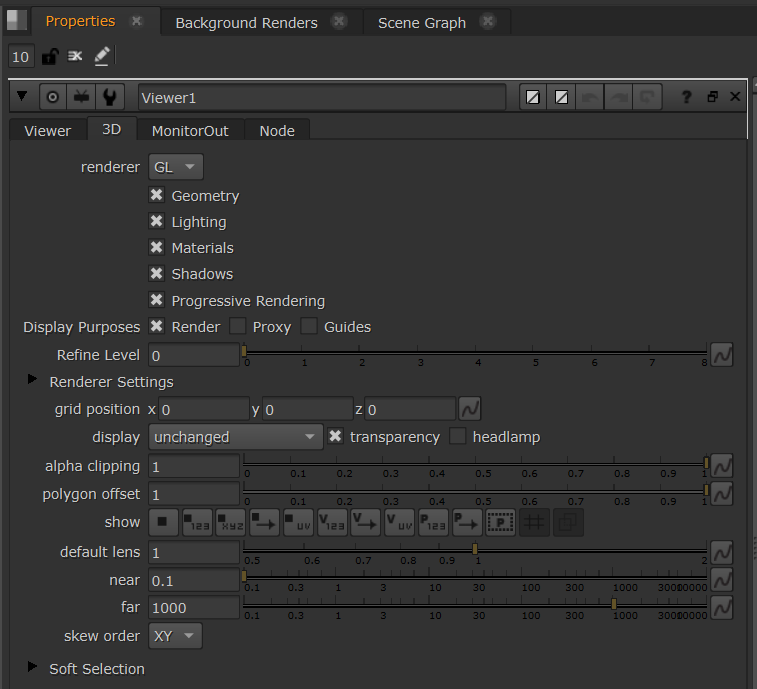

As such, the Viewer's renderer knob only has one option: GL, which is both the Hydra and Nuke renderers, depending on if you are viewing New or Classic 3D nodes.

Note:  Learn more about the New 3D System and USD at 3D Compositing with the New 3D System.

You can also select whether or not to display geometry, lights, materials and/or shadows in the 3D Viewer by toggling the relevant checkboxes.

The Viewer renderer option is also included in the Preferences under Panels > Viewer > default renderer. Changing the preference only affects new Viewer nodes.
