usg::ImageablePrim Class Reference

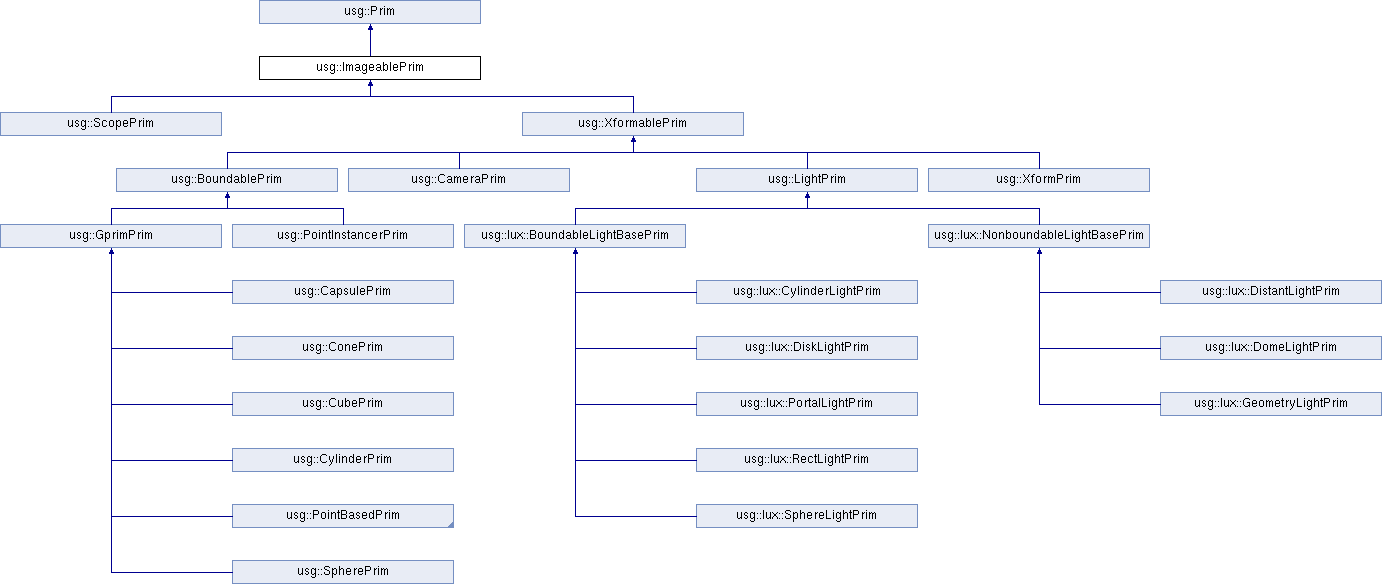

Inheritance diagram for usg::ImageablePrim:

Public Member Functions
	ImageablePrim (const Prim &prim)
bool	validate ()
Relationship	createProxyPrimRel ()
Relationship	getProxyPrimRel () const
void	setProxyPrim (const PathArray &value, fdk::TimeValue time=fdk::defaultTimeValue())
PathArray	getProxyPrim (fdk::TimeValue time=fdk::defaultTimeValue()) const
Attribute	createPurposeAttr (const Value &defaultValue=Value())
Attribute	getPurposeAttr () const
void	setPurpose (const Token &value, fdk::TimeValue time=fdk::defaultTimeValue())
Token	getPurpose (fdk::TimeValue time=fdk::defaultTimeValue()) const
Attribute	createVisibilityAttr (const Value &defaultValue=Value())
Attribute	getVisibilityAttr () const
void	setVisibility (const Token &value, fdk::TimeValue time=fdk::defaultTimeValue())
Token	getVisibility (fdk::TimeValue time=fdk::defaultTimeValue()) const
Public Member Functions inherited from usg::Prim
	Prim ()
	Abstraction handle for casting to UsdPrim. More...
	Prim (const Prim &)
	Prim (const Prim::Impl &)
Prim &	operator= (const Prim &)
bool	operator== (const Prim &b) const
	Equality - are the two Prims the same object or not? Compares the underlying Prim::Impls.
bool	operator!= (const Prim &b) const
bool	operator< (const Prim &b) const
bool	isValid () const
	Returns true if Prim::Impl is valid (has a valid object binding.)
	operator bool () const
class Prim::SpecPrimHandle *	getSdfPrimSpec (int usd_version)
const class Prim::SpecPrimHandle *	getSdfPrimSpec (int usd_version) const
class Prim::UsdPrimHandle *	getUsdPrim (int usd_version)
const class Prim::UsdPrimHandle *	getUsdPrim (int usd_version) const
const std::string &	getName () const
	Returns the name of the prim.
Path	getPath () const
	Returns the path of the prim.
const Token	getTypeName () const
	Returns the name of the type of the prim.
Prim	getParent () const
	Return this prim's parent prim. Returns an invalid prim if this is a root prim.
bool	isPseudoRoot () const
	Returns true if the prim is the pseudo root - ie '/'.
bool	isA (const Token &typeName) const
	Returns true if the prim is an instance of the given type.
template<class T >
bool	isA () const
	Returns true if the prim is an instance of a schema.
bool	hasApi (const Token &typeName) const
	Returns true if the prim has the given API.
bool	hasApi (const Token &typeName, const Token &instanceName) const
	Returns true if the prim has the given multiple-apply schema API.
template<class T >
bool	hasApi () const
	Returns true if the prim has the given API.
template<class T >
bool	hasApi (const Token &instanceName) const
	Returns true if the prim has the given multiple-apply schema API.
void	setActive (bool active)
bool	isActive () const
bool	isDefined () const
bool	hasPayload () const
bool	isLoaded () const
void	load () const
void	unload () const
void	setVisible (bool active, fdk::TimeValue time=fdk::defaultTimeValue())
bool	isVisible (fdk::TimeValue time=fdk::defaultTimeValue()) const
bool	addAppliedSchema (const Token &schemaName)
void	setCreator (const Token &creator)
	Sets the name of the app that created this prim.
Token	creatorApp () const
	Gets the name of the app that created this prim.
bool	isCreator (const Token &creator) const
	True if creator is the prim's creator app.
void	setCustomData (const std::string &key, const Value &value)
	Sets the custom data value of given key.
bool	getCustomData (const std::string &key, Value &value) const
	Retrieves the custom data value for the key. Returns true if it exists.
Value	getCustomData (const std::string &key) const
	Returns a valid value if the custom data exists for the key.
bool	hasCustomData (const std::string &key) const
	Checks whether the prim has custom data for the key.
void	removeCustomData (const std::string &key)
	Erases the custom data for the key.
void	setKind (const Token &kind)
Token	getKind () const
void	setInstanceable (bool instanceable)
bool	isInstanceable () const
Attribute	createIntrinsicAttr (const Token &name, Value::Type type, TimeVariability variability_hint=TimeVariability::Uniform)
Attribute	createCustomAttr (const Token &name, Value::Type type, TimeVariability variability_hint=TimeVariability::Uniform)
Attribute	createAttr (const Token &name, Value::Type type, bool is_custom=false, TimeVariability variability_hint=TimeVariability::Varying, const Value &defaultValue=Value())
template<typename T >
Attribute	setAttr (const Token &name, const T &v, const fdk::TimeValue &time=fdk::defaultTimeValue())
Attribute	getAttr (const Token &name) const
	If the named attribute exists on the Prim returns it otherwise return an empty (invalid) Attribute object.
bool	getAttr (const Token &name, Attribute &attr) const
std::vector< Token >	getAttributes () const
	Returns the list of attributes.
Attribute	copyAttr (const Prim &fromPrim, const Token &name, fdk::TimeValue time)
	Copy the attribute from another prim at the given time.
virtual bool	applyAttributeOverrides (const ShaderDesc &schema_desc, bool skip_connected=true)
Relationship	createRelationship (const Token &name, bool custom=false)
	Creates and returns an empty relationship.
Relationship	getRelationship (const Token &name) const
bool	getRelationship (const Token &name, Relationship &rel) const
size_t	getRelationships (std::vector< const char * > &relationships) const
	Fills in the list of relationship names, returning the number of relationship.
void	addReference (const std::string &identifier, const Path &path, ListPosition position=ListPosition::PrependBack)
	Adds a reference to the prim's reference list.
void	addPayload (const std::string &identifier, const Path &path, ListPosition position=ListPosition::PrependBack)
	Adds a payload to the prim's reference list.
void	addVariantSet (const std::string &variantSetName, ListPosition position=ListPosition::PrependBack)
	Adds a variant set to the prim.
void	addVariant (const std::string &variantSetName, const std::string &variantName)
	Adds a variant to a variant set.
void	setVariantSelection (const std::string &variantSetName, const std::string &selection)
	Sets the variant selection for a variant set.
std::vector< std::string >	getVariantSets () const
	Returns the list of variant sets authored on the prim.
std::vector< std::string >	getVariants (const std::string &variantSetName) const
	Returns the list of variants for a variant set on this prim.
size_t	getChildren (std::vector< Prim > &children, bool activeOnly=true) const
LayerRef	getDefiningLayer () const
	Returns a possible layer which defined this prim. This returns the layer containing the first "def" for the prim.
virtual void	print (const char *prefix, std::ostream &o) const
	Debugging - prints some key info about the prim to a stream.
Prim::Impl *	impl ()
const Prim::Impl *	impl () const

Static Public Member Functions
static bool	isValidPrim (const Prim &prim)
static ImageablePrim	overrideInLayer (const LayerRef &layer, const Prim &prim)
static ImageablePrim	getInStage (const StageRef &stage, const Path &path)
Static Public Member Functions inherited from usg::Prim
static Prim	defineInLayer (const LayerRef &layer, const Path &path, const Token &typeName)
static Prim	overrideInLayer (const LayerRef &layer, const Path &path, const Token &typeName)
static void	createMissingParents (const StageRef &referenceStage, const LayerRef &layer, const Path &path, const Token &parentPrimType=GeomTokens.types.Scope)

Additional Inherited Members
Protected Attributes inherited from usg::Prim
std::unique_ptr< Prim::Impl >	_pImpl

Member Function Documentation

bool usg::ImageablePrim::validate ( )

virtual

Returns true if we're holding a valid type of prim for our class. If not, returns false and invalidates this prim so that furutre.calls to isValid will return false;

Reimplemented from usg::Prim.

Reimplemented in usg::NurbsPatchPrim, usg::MeshPrim, usg::NurbsCurvesPrim, usg::lux::CylinderLightPrim, usg::lux::DomeLightPrim, usg::lux::RectLightPrim, usg::lux::DistantLightPrim, usg::lux::PortalLightPrim, usg::lux::SphereLightPrim, usg::PointsPrim, usg::lux::DiskLightPrim, usg::lux::GeometryLightPrim, usg::PointInstancerPrim, usg::PointBasedPrim, usg::SpherePrim, usg::XformablePrim, usg::XformPrim, usg::ScopePrim, usg::LightPrim, usg::lux::BoundableLightBasePrim, and usg::lux::NonboundableLightBasePrim.
