usg::ShaderSchema Class Reference

ShaderSchema class creates ShaderDesc definitions stored in the registry. More...

#include <ShaderSchema.h>

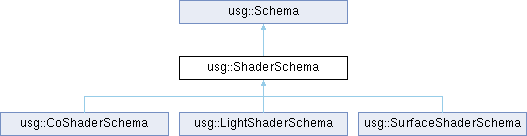

Inheritance diagram for usg::ShaderSchema:

Public Member Functions
	ShaderSchema (const SchemaDescription &pluginDescription, const ShaderPropertyList &properties, const fdk::KeyValueMap &metadata=fdk::KeyValueMap())
const Token &	baseTypeName () const override
	Return a string indicating this is a ShaderSchema.
ShaderSchema *	asShaderSchema () override
	Used to cast a Schema to a ShaderSchema.
virtual CoShaderSchema *	asCoShader ()
	Used to cast a ShaderSchema to a CoShaderSchema.
virtual SurfaceShaderSchema *	asSurfaceShader ()
	Used to cast a ShaderSchema to a SurfaceShaderSchema.
virtual LightShaderSchema *	asLightShader ()
	Used to cast a ShaderSchema to a LightShaderSchema.
virtual VolumeShaderSchema *	asVolumeShader ()
	Used to cast a ShaderSchema to a VolumeShaderSchema.
virtual const std::string &	sourceCode (const Token &sourceType) const
virtual void	sourceCode (ShaderSource &shaderSource) const
virtual const ShaderPropertyList &	shaderProperties () const
	Return the input/output shader properties.
Public Member Functions inherited from usg::Schema
	Schema (const SchemaDescription &pluginDescription, const SchemaPropertyList &properties, const fdk::KeyValueMap &metadata=fdk::KeyValueMap())
const char *	schemaName () const
	Name of the shader class without any leading pluginPrefix() or trailing pluginSuffix().
virtual const Token &	baseTypeName () const
virtual void	getSourceTypes (TokenSet &types) const
virtual ShaderSchema *	asShaderSchema ()

Additional Inherited Members
Static Public Member Functions inherited from usg::Schema
static const SchemaDescription *	find (const char *schema_name)
	Find a SchemaDescription by schema name and optional source-type - NOT the plugin .so filename!
Static Protected Member Functions inherited from usg::Schema
static Schema *	create (const char *schema_name)
Protected Attributes inherited from usg::Schema
std::unique_ptr< ShaderSchemaHandle, void(*)(ShaderSchemaHandle *)>	_pImpl

Detailed Description

ShaderSchema class creates ShaderDesc definitions stored in the registry.

Constructor & Destructor Documentation

ShaderSchema()

usg::ShaderSchema::ShaderSchema	(	const SchemaDescription &	pluginDescription,
		const ShaderPropertyList &	properties,
		const fdk::KeyValueMap &	metadata = fdk::KeyValueMap()
	)

The shader class name is taken from the ShaderSchemaDescription::schemaName(), so the subclass must pass its ShaderSchemaDescription.

Member Function Documentation

baseTypeName()

const Token & usg::ShaderSchema::baseTypeName ( ) const

inlineoverridevirtual

Return a string indicating this is a ShaderSchema.

Reimplemented from usg::Schema.

asShaderSchema()

ShaderSchema * usg::ShaderSchema::asShaderSchema ( )

inlineoverridevirtual

Used to cast a Schema to a ShaderSchema.

Reimplemented from usg::Schema.

asCoShader()

virtual CoShaderSchema * usg::ShaderSchema::asCoShader ( )

inlinevirtual

Used to cast a ShaderSchema to a CoShaderSchema.

Reimplemented in usg::CoShaderSchema.

asSurfaceShader()

virtual SurfaceShaderSchema * usg::ShaderSchema::asSurfaceShader ( )

inlinevirtual

Used to cast a ShaderSchema to a SurfaceShaderSchema.

Reimplemented in usg::SurfaceShaderSchema.

asLightShader()

virtual LightShaderSchema * usg::ShaderSchema::asLightShader ( )

inlinevirtual

Used to cast a ShaderSchema to a LightShaderSchema.

Reimplemented in usg::LightShaderSchema.

sourceCode() [1/2]

virtual const std::string & usg::ShaderSchema::sourceCode ( const Token &  sourceType ) const

virtual

Return the implementation code string for a specific sourceType when the shader is the single shader in a material network. Subclass should have already declared the type in its list of supported types, so if there are multiple sources the type string should be checked.

sourceCode() [2/2]

virtual void usg::ShaderSchema::sourceCode ( ShaderSource &  shaderSource ) const

virtual

Creates the source code for the shader for a specific target (e.g. glslfx) using the ShaderSource generator previously created via shaderSourceGenerator(). If a ShaderSource generator was not created by the shader for the requested source type then this method is never called. Default implementation does nothing.
