#include <SceneOpI.h>

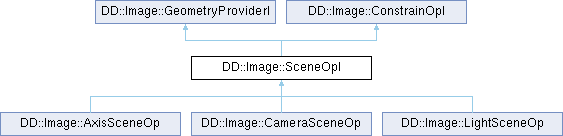

Inheritance diagram for DD::Image::SceneOpI:

Classes
class	Description

Public Types
enum	{ TIME , PARENT_T , PARENT_R , PARENT_S , XFORM_ORDER , ROT_ORDER , TRANSLATE , ROTATE , SCALE , UNIFORM_SCALE , SKEW , PIVOT_T , PIVOT_R , LAST_XFORM_PARAM }
	Which component of an AxisVals to provide.

enum	{ PARENT_XFORM , PARENT_SCOPE , PARENT_NONE }
	Parent prim creation modes.

Public Member Functions
	SceneOpI (fdk::AxisDirection defaultOrientAxis=fdk::AxisDirection::Z_PLUS)

virtual AxisOp *	getAxisOp ()=0

AxisSceneOp *	asAxisSceneOp ()
	Convenience to cast this interface's Op to an AxisSceneOp.

CameraSceneOp *	asCameraSceneOp ()
	Convenience to cast this interface's Op to a CameraSceneOp.

LightSceneOp *	asLightSceneOp ()
	Convenience to cast this interface's Op to a LightSceneOp.

virtual int32_t	sceneInput () const

virtual GeomOp *	sceneInputOp () const
	Return the sceneInput() input cast to a GeomOp, if possible. Default returns null.

virtual SceneOpI *	parentInputSceneOp () const
	Return the AxisOp::parentInput() input cast to a SceneOpI, if possible. Default returns null.

virtual SceneOpI *	constrainInputSceneOp () const
	Return the AxisOp::constrainInput() input cast to a SceneOpI, if possible. Default returns null.

SceneOpNodeI *	sceneOpNode () const
	Return the custom node owner.

virtual const usg::Token &	primarySchemaType () const =0

virtual usg::TokenArray	getAppliedApiSchemaTypes () const

virtual const usg::Path &	primPath () const
	Prim path to create/edit.

virtual const usg::Token &	parentPrimCreateType () const

virtual usg::Path	buildBasePrimPath () const

virtual const char *	primPathFilter () const

bool	readFromSceneEnabled () const
	Is the read from scene mode enabled?

bool	sourcePrimEnabled () const
	Returns true if there's a valid scene input prim to extract data from.

const usg::Path &	sourcePrimPath () const
	Prim path in source scene to read.

const SceneOpNodeI::ConfigParams &	params () const
	Returns the shared node configuration params.

const SceneOpNodeI::SceneData &	sceneData () const
	Returns the shared node scene data.

const usg::StageRef &	sourceStage () const
	Stage the prim data will be extracted from, if valid.

const usg::Prim &	sourcePrim () const
	Prim that data will be extracted from, if valid.

const AxisValsSet *	transformCache () const

const SceneOpNodeI::SharedData &	sharedData () const
	Returns the shared node data.

void	SetAuthoringProvider (Knob_Callback f, uint64_t componentId)
	Assigns the AuthoringProvider to the last created or stored knob.

void	SetAuthoringProvider (Knob_Callback f, Knob *knob, uint64_t componentId)
	Same, but with a knob specifier for a compound knob to supply, if needed.

void	SetAxisKnobAuthoringProvider (Knob_Callback f)

void	addAuthoringProvider (Knob k, AuthoringProvider provider)
	Add a value provider to the node shared list, which takes ownership of allocation.

AuthoringProvider *	getAuthoringProvider (Knob *k) const
	Retrieve an authoring provider by Knob.

const AuthoringProviderKnobMap &	getAuthoringProviderKnobMap () const

Knob *	opKnob (const char *name) const

virtual void	addImportOptionKnobs (Knob_Callback f)

virtual void	addXformExtractOptionKnobs (Knob_Callback f)

virtual void	addExportOptionKnobs (Knob_Callback f)

virtual void	addDisplayOptionsKnobs (Knob_Callback f)
	Adds the OpenGL display option controls.

virtual void	addLocalParentXformKnobs (Knob_Callback f, bool addSyncOptions=true)

virtual void	addLocalXformKnobs (Knob_Callback f, bool addSyncOptions=true)

virtual void	addTransformKnobs (Knob_Callback f, bool addSyncOptions=true)

virtual void	addConstrainOptionsKnobs (Knob_Callback f)
	Adds the constrain option knobs.

virtual void	addExtraFrontPanelKnobs (Knob_Callback f)

const char *	localParentTranslateKnobName () const

const char *	localParentRotateKnobName () const

const char *	localParentScaleKnobName () const

const char *	localAxisKnobName () const

const char *	worldMatrixKnobName () const

Knob *	getLocalParentTranslateKnob () const
	Return the internal 'local_parent_translate' XYZ knob.

Knob *	getLocalParentRotateKnob () const
	Return the internal 'local_parent_rotate' XYZ knob.

Knob *	getLocalParentScaleKnob () const
	Return the internal 'local_parent_scale' XYZ knob.

Axis_KnobI *	getLocalAxisKnob () const
	Return internal 'transform' Axis_Knob for set/get internal local transformation.

ArrayKnobI *	getWorldMatrixKnob () const
	Return internal 'world_matrix' Array_Knob.

virtual void	setReadOnlyLocalParent (bool readOnly)
	Make read only the knobs the translate/rotate/scale knobs for the local parent xform.

virtual void	setReadOnlyLocalXform (bool readOnly)
	Make read only the knobs in the local xform section.

void	KnobDefinesGeometry (const Knob_Closure &f)

void	KnobModifiesAttribValues (const Knob_Closure &f)

GeometryProviderI *	asGeometryProvider () override
	GeometryProviderI: Allow subclasses to gain access to sibling functions.

fdk::Hash	geometryComposeState () override
	GeometryProviderI: Returns the compose state of the exportLayer.

fdk::Hash	geometryEditVersionState () override
	GeometryProviderI: Returns the edit state of the exportLayer.

bool	geometryStateVaries () override

bool	canProvideGeometryStage () const override
	GeometryProviderI: Provides a fully constructed usg::Stage via buildGeometryStage().

bool	canProvideGeometryFor (const usg::Token &purpose) const override

void	buildGeometryStage (usg::StageRef &stage, const usg::ArgSet &requestArgs={}, const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet()) override

void	writeScenePrimsToLayer (usg::LayerRef &layer, bool appendTo, const fdk::FrameValueSet &times)

Public Member Functions inherited from DD::Image::GeometryProviderI
virtual GeometryProviderI *	asGeometryProvider ()=0

virtual Op *	getGeometryProviderOp ()=0

Op *	getGeometryProviderOp () const
	Same as getGeometryProviderOp() but const.

virtual fdk::Hash	geometryComposeState ()=0

virtual fdk::Hash	geometryEditVersionState ()=0

virtual bool	geometryStateVaries ()=0

virtual usg::LayerRef	buildGeometryLayer (bool appendTo=false, const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())=0

virtual usg::LayerRef	getGeometryLayer (const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())

virtual bool	canProvideGeometryStage () const

virtual bool	canProvideGeometryFor (const usg::Token &purpose) const

virtual void	buildGeometryStage (usg::StageRef &stage, const usg::ArgSet &requestArgs, const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())

virtual usg::StageRef	getGeometryStage (const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())

Public Member Functions inherited from DD::Image::ConstrainOpI
	ConstrainOpI (fdk::FrameValue referenceFrame, fdk::AxisDirection defaultLookAxis=fdk::AxisDirection::Z_PLUS)

	ConstrainOpI (DD::Image::Op *op, fdk::AxisDirection defaultLookAxis=fdk::AxisDirection::Z_PLUS)

void	knobs (Knob_Callback f, Op *op)

int	knob_changed (Knob k, Op op)

const char *	input_label (char *buffer) const
	Returns the input label for the current constrain mode.

const char *	constraintKnobName () const

const char *	orientAxisKnobName () const

const char *	rotateXKnobName () const

const char *	rotateYKnobName () const

const char *	rotateZKnobName () const

const char *	strengthKnobName () const

const char *	applyTranslateKnobName () const

const char *	applyRotateKnobName () const

const char *	applyScaleKnobName () const

const char *	maintainOffsetFrameKnobName () const

const char *	maintainOffsetKnobName () const

const char *	setMaintainOffsetFrameToCurrentKnobName () const

ndk::ConstraintMatrixParams	getConstraintParametersFromKnobs (const OutputContext *context=nullptr) const

fdk::TimeValueSet	getNeededInputTimes (const fdk::TimeValueSet &requestedTimes) const
	Returns the times we need from inputs given the times that have been requested.

ndk::ConstraintMode	getConstraintType () const
	Gets the constraint type from the constraint knob.

bool	constraintMaintainOffset () const

Static Public Member Functions
static std::string	localAxisXformOpName (const Op *op)
	Returns the name of the local axis xformOp for the xform given by Op.

static std::string	localParentXformOpName (const Op *op)
	Returns the name of the local parent xformOp for the xform given by Op.

Static Public Member Functions inherited from DD::Image::GeometryProviderI
static void	BuildStage (usg::StageRef &stage, const usg::ArgSet &requestArgs, const OpGraphLocation &geometryProviderOp, const fdk::TimeValueSet &sampleTimes)

static void	BuildStage (usg::StageRef &stage, const OpGraphLocation &geometryProviderOp, const fdk::TimeValueSet &sampleTimes)
	Same as buildStage(OpSet) but with no request args.

static void	BuildStage (usg::StageRef &stage, const OpGraphLocation &geometryProviderOp, const fdk::TimeValue &sampleTime)
	Same as buildStage(OpSet) but with only one sample time.

Static Public Member Functions inherited from DD::Image::ConstrainOpI
static fdk::AxisDirection	GetLookAxis (int lookAxisIndex)

Protected Member Functions
virtual AuthoringProvider *	_createAuthoringProvider (Knob *k, uint64_t componentId)

virtual fdk::Hash	buildSourceSceneState (const fdk::Hash &hash)

virtual void	getExtractKeyRange (SceneOpNodeI::SharedData &data, fdk::TimeValue &firstKey, fdk::TimeValue &lastKey)

virtual bool	extractSceneData (SceneOpNodeI::SharedData &data, const fdk::TimeValueSet &addlSampleTimes=fdk::TimeValueSet())

virtual void	extractSceneXformData (SceneOpNodeI::SharedData &data, AxisValsArray &axisValsSamples, bool &isDefaultXforms, const fdk::TimeValueSet &addlSampleTimes=fdk::TimeValueSet()) const

virtual AxisVals	getXformDataAt (SceneOpNodeI::SharedData &data, const OutputContext &context) const

virtual void	_validateTransforms (bool for_real, ndk::XformParameters &outputXformParams)

virtual void	_buildLocalTransforms (const ndk::XformComponents &xformComponents, fdk::Mat4d &preConstraintXform, const ndk::ConstraintMatrixParams &constraintParams, ndk::XformParameters &finalLocalXforms) const

virtual bool	_buildConstraintParams (AxisOp *constrainSourceOp, const ndk::XformComponents &xformComponents, fdk::Mat4d &preConstraintXform, ndk::ConstraintMatrixParams &constraintParams) const

virtual bool	_getLocalParentTransformAnimation (fdk::TimeValueSet keyTimes=nullptr, int32_t nAnimatedExpressions=nullptr, int32_t view=-1) const

virtual bool	_getLocalTransformAnimation (fdk::TimeValueSet keyTimes=nullptr, int32_t nAnimatedExpressions=nullptr, int32_t view=-1) const

virtual const ndk::XformComponents &	_getSceneOpTransformComponents () const
	Return the transform components built _validateTransforms().

virtual ndk::XformComponents	_getSceneOpTransformComponentsAt (const OutputContext &context) const
	Calculate the transform components at a specific OutputContext.

virtual const fdk::Mat4d &	_getSceneOpInputParentTransform () const
	Return the input parent transform built in _validateTransforms().

virtual fdk::Mat4d	_getSceneOpInputParentTransformAt (const OutputContext &context) const
	Calculate the input parent transform at a specific OutputContext.

virtual const fdk::Mat4d &	_getSceneOpLocalParentAxisTransform () const
	Return the local parent axis transform built in _validateTransforms().

virtual fdk::Mat4d	_getSceneOpLocalParentAxisTransformAt (const OutputContext &context) const
	Calculate the local parent axis transform at a specific OutputContext.

virtual const fdk::Mat4d &	_getSceneOpParentTransform () const
	Return the total local parent transform built in _validateTransforms().

virtual const fdk::Mat4d &	_getSceneOpLocalAxisTransform () const
	Return the local axis transform built in _validateTransforms().

virtual fdk::Mat4d	_getSceneOpLocalAxisTransformAt (const OutputContext &context) const
	Calculate the local axis transform at a specific OutputContext.

virtual const fdk::Mat4d &	_getSceneOpLocalTransform () const
	Return the total local transform built in _validateTransforms().

virtual fdk::Mat4d	_getSceneOpWorldTransformAt (const OutputContext &context) const

void	_sceneOpResetTargetState ()

void	_sceneOpUpdateScenePrimState (const DD::Image::Hash &newOpEditVersionHash)

void	_appendKnobToDefineGeometryTarget (Knob *k)

void	_appendKnobToModifyValuesTarget (Knob *k)

virtual int	_sceneOpKnobChanged (Knob *k, int32_t callAgain)

usg::LayerRef	buildGeometryLayer (bool appendTo, const fdk::TimeValueSet &sampleTimes) override

virtual void	_createParentPrims (usg::LayerRef &layer, const usg::Path &basePrimPath)

virtual void	_writeScenePrims (usg::LayerRef &layer, bool appendTo, const fdk::TimeValueSet &times=fdk::TimeValueSet())=0

virtual void	_writeTransformOps (usg::LayerRef &layer, usg::XformablePrim &xformable, bool appendTo, const fdk::FrameValueSet &times=fdk::FrameValueSet())

bool	writeKnob (const char *knobName, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyTypeHint) const

bool	writeKnob (const char *knobName, bool ignoreDefaultTest, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyTypeHint) const

bool	writeKnob (Knob *knob, bool ignoreDefaultTest, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyTypeHint) const
	Same but with a Knob*.

bool	writeKnob (const ArrayKnobRefList &knobRefs, bool ignoreDefaultTest, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyType) const

bool	writeInputOpAsAssetPath (int32_t input, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName) const
	Write an input Op connection as an AssetPath, typically for texture sources.

Static Protected Member Functions
static bool	BuildConstraintParamsAt (const SceneOpI *sceneOp, const OutputContext &context, const ndk::XformComponents &xformComponents, fdk::Mat4d &preConstraintXform, ndk::ConstraintMatrixParams &constraintParams)

Protected Attributes
ndk::XformComponents	_xformComponents
	Transform components.

fdk::Vec3d	_localParentTranslate
	Local-parent translation knob value.

fdk::Vec3d	_localParentRotate
	Local-parent rotate knob value.

fdk::Vec3d	_localParentScale
	Local-parent scale knob value.

SnapKnobs	_snapKnobs
	Snap menu options.

bool	_applyConstraintToParent
	Snap/constraint is applied to the local parent, not the local axis.

DD::Image::Hash	_parentHash
	Does parent path or transform need to be updated?

DD::Image::Hash	_constrainHash
	The hash for the constrain input set in validate().

WorldMatrixProvider *	_worldXformProvider
	'world_matrix' output knob - valid ONLY on firstOp()!

SceneOpNodeI *	_sceneOpNode
	Node owner, set by SceneOpNode.

Protected Attributes inherited from DD::Image::ConstrainOpI
Knob *	_constraintKnob

Knob *	_lookAxisKnob

Knob *	_strengthKnob

Knob *	_rotateXKnob

Knob *	_rotateYKnob

Knob *	_rotateZKnob

Knob *	_applyTranslateKnob

Knob *	_applyRotateKnob

Knob *	_applyScaleKnob

Knob *	_maintainOffsetFrameKnob

Knob *	_maintainOffsetKnob

Knob *	_setMaintainOffsetFrameToCurrentKnob

int	_constraint

fdk::AxisDirection	_lookAxis

bool	_rotateX

bool	_rotateY

bool	_rotateZ

double	_strength

bool	_applyTranslate

bool	_applyRotate

bool	_applyScale

bool	_maintainOffset

float	_maintainOffsetFrame

Friends
class	ndk::SceneOpNode

Detailed Description

Provides the transformable scene Op standard transform knobs with prim edit functionality. This interface is only intended to be attached to AxisOp subclasses and there are a number of assumptions to that effect, such as the getAxisOp() method.

This interface contains a local transform matrix and an optional local-parent transform matrix which are normally filled in by Knobs. The local-parent enables an arbitrary parenting hierarchy to be decomposed and contained within the AxisOp subclass allowing the node to be disconnected or disassociated from a parenting network or scenegraph. The node is thus effectively localized and can be copied, pasted into other scripts, etc.

Member Function Documentation

◆ getAxisOp()

virtual AxisOp * DD::Image::SceneOpI::getAxisOp ( )

pure virtual

Return the AxisOp subclass the interface is attached to. Should return 'this'. This can be further cast to an AxisSceneOp (or CameraSceneOp/LightSceneOp) using 'op_cast()' like so: 'AxisSceneOp* axisSceneOp = op_cast<AxisSceneOp*>(getAxisOp())'. Must implement.

Implemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

Referenced by _createParentPrims(), _getLocalParentTransformAnimation(), _getLocalTransformAnimation(), _getSceneOpInputParentTransformAt(), _getSceneOpLocalAxisTransformAt(), _getSceneOpLocalParentAxisTransformAt(), _getSceneOpTransformComponentsAt(), _getSceneOpWorldTransformAt(), _sceneOpKnobChanged(), _validateTransforms(), _writeTransformOps(), addConstrainOptionsKnobs(), addTransformKnobs(), asAxisSceneOp(), asCameraSceneOp(), asLightSceneOp(), buildBasePrimPath(), geometryComposeState(), geometryEditVersionState(), geometryStateVaries(), opKnob(), setReadOnlyLocalParent(), writeInputOpAsAssetPath(), and writeKnob().

◆ sceneInput()

virtual int32_t DD::Image::SceneOpI::sceneInput ( ) const

inlinevirtual

Return the node input to use for the scene source, usually a GeomOp. -1 indicates an internal scene source with no input connection. Default implementation returns -1.

Reimplemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

◆ sceneInputOp()

virtual GeomOp * DD::Image::SceneOpI::sceneInputOp ( ) const

inlinevirtual

Return the sceneInput() input cast to a GeomOp, if possible. Default returns null.

Reimplemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

◆ parentInputSceneOp()

virtual SceneOpI * DD::Image::SceneOpI::parentInputSceneOp ( ) const

inlinevirtual

Return the AxisOp::parentInput() input cast to a SceneOpI, if possible. Default returns null.

Reimplemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

Referenced by buildBasePrimPath().

◆ constrainInputSceneOp()

virtual SceneOpI * DD::Image::SceneOpI::constrainInputSceneOp ( ) const

inlinevirtual

Return the AxisOp::constrainInput() input cast to a SceneOpI, if possible. Default returns null.

Reimplemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

◆ primarySchemaType()

virtual const usg::Token & DD::Image::SceneOpI::primarySchemaType ( ) const

pure virtual

Return the name of the primary USD schema this node is handling. For example usg::GeomTokens.types.Camera, or usg::lux::LuxTokens.types.DistantLight. Must implement.

Implemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

◆ getAppliedApiSchemaTypes()

virtual usg::TokenArray DD::Image::SceneOpI::getAppliedApiSchemaTypes ( ) const

inlinevirtual

Returns a list of additional named schema APIs this node is handling. For example a LightSceneOp would likely apply usg::lux::LuxTokens.types.LightAPI and optionally usg::lux::LuxTokens.types.ShapingAPI.

Default implementation returns an empty array.

Reimplemented in DD::Image::LightSceneOp.

◆ parentPrimCreateType()

virtual const usg::Token & DD::Image::SceneOpI::parentPrimCreateType ( ) const

inlinevirtual

Return the prim type to create for missing prims. Default implementation returns the value of the 'parent_prim_type' knob.

Referenced by _createParentPrims(), and buildBasePrimPath().

◆ buildBasePrimPath()

usg::Path SceneOpI::buildBasePrimPath ( ) const

virtual

Return the full path of the -primary- prim and all its parents created by this node. This is the 'top' prim where any child prims are rooted under.

For example if this is an AxisOp it's typically a single Xform prim, but a CameraOp or LightOp may have additional prims after the main Xform (ie for a stereo camera rig) so this connection point needs to be explicitly identified.

Retrieve the base prim name by calling name() on the returned path.

Base class implementation

Reimplemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

References buildBasePrimPath(), getAxisOp(), DD::Image::Op::nodeName(), parentInputSceneOp(), parentPrimCreateType(), and primPath().

Referenced by buildBasePrimPath(), DD::Image::CameraSceneOp::buildCameraSchemaPrimPath(), DD::Image::LightSceneOp::buildLightSchemaPrimPath(), and DD::Image::AxisSceneOp::buildXformSchemaPrimPath().

◆ primPathFilter()

virtual const char * DD::Image::SceneOpI::primPathFilter ( ) const

inlinevirtual

Return the default filter string to apply in the prim path knob. Default is a filter for Xforms.

Reimplemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

◆ transformCache()

const AxisValsSet * DD::Image::SceneOpI::transformCache ( ) const

inline

Pointer to cache of extracted transforms, if valid and non-empty. The cache is updated by the SceneOpNode during Op configuration -prior- to Op::knobs(store-main) being called.

Referenced by getXformDataAt().

◆ SetAxisKnobAuthoringProvider()

void SceneOpI::SetAxisKnobAuthoringProvider ( Knob_Callback f )

Assigns AuthoringProviders to the last-created AxisKnob component knobs using the standard component Ids for local TRS.

References SetAuthoringProvider().

Referenced by addLocalXformKnobs().

◆ getAuthoringProviderKnobMap()

const AuthoringProviderKnobMap & SceneOpI::getAuthoringProviderKnobMap ( ) const

A map of Knobs that have authoring providers created for them. This can be used to globally turn the authoring controls or providers on an off without having to scan through the Knobs list on the Op.

References _sceneOpNode.

◆ opKnob()

Knob * SceneOpI::opKnob ( const char * name ) const

Convenience to get a Knob from the Op this interface is attached to. Same as 'getAxisOp()->knob(name)'.

References getAxisOp(), and DD::Image::Op::knob().

Referenced by getLocalAxisKnob(), getLocalParentRotateKnob(), getLocalParentScaleKnob(), getLocalParentTranslateKnob(), getWorldMatrixKnob(), and setReadOnlyLocalXform().

◆ addImportOptionKnobs()

virtual void DD::Image::SceneOpI::addImportOptionKnobs ( Knob_Callback f )

inlinevirtual

Add prim import control knobs. Default implementation calls _sceneOpNode->addImportOptionKnobs() which creates knobs during the f.makeKnobs() phase, it does not store into any Op vars. Access the knob data via the SharedData.

Referenced by DD::Image::CameraSceneOp::knobs(), and DD::Image::LightSceneOp::knobs().

◆ addXformExtractOptionKnobs()

virtual void DD::Image::SceneOpI::addXformExtractOptionKnobs ( Knob_Callback f )

inlinevirtual

Add transform decomposition control knobs. Default implementation calls _sceneOpNode->addXformExtractOptionKnobs() which creates creates knobs during the f.makeKnobs() phase, it does not store into any Op vars. Access the knob data via the SharedData.

Referenced by DD::Image::CameraSceneOp::knobs(), and DD::Image::LightSceneOp::knobs().

◆ addExportOptionKnobs()

virtual void DD::Image::SceneOpI::addExportOptionKnobs ( Knob_Callback f )

inlinevirtual

Add prim export control knobs. Default implementation calls _sceneOpNode->addExportOptionKnobs() which creates knobs during the f.makeKnobs() phase, it does not store into any Op vars. Access the knob data via the SharedData.

Referenced by DD::Image::CameraSceneOp::knobs(), and DD::Image::LightSceneOp::knobs().

◆ addDisplayOptionsKnobs()

void SceneOpI::addDisplayOptionsKnobs ( Knob_Callback f )

virtual

Adds the OpenGL display option controls.

Reimplemented in DD::Image::CameraSceneOp.

References DD::Image::Bool_knob(), DD::Image::display3d_names_source, DD::Image::Enumeration_knob(), DD::Image::Knob::NO_ANIMATION, DD::Image::SetFlags(), DD::Image::Knob::STARTLINE, and DD::Image::Tooltip().

Referenced by DD::Image::CameraSceneOp::addDisplayOptionsKnobs().

◆ addLocalParentXformKnobs()

void SceneOpI::addLocalParentXformKnobs	(	Knob_Callback	f,
		bool	addSyncOptions = `true`
	)

virtual

Add the local-parent TRS knobs. If addSyncOptions is true the import-sync options are added.

References _localParentRotate, _localParentScale, _localParentTranslate, _sceneOpNode, DD::Image::Knob::ENDLINE, DD::Image::Knob::NO_HANDLES, SetAuthoringProvider(), DD::Image::SetFlags(), DD::Image::Tooltip(), and DD::Image::XYZ_knob().

Referenced by addTransformKnobs().

◆ addLocalXformKnobs()

void SceneOpI::addLocalXformKnobs	(	Knob_Callback	f,
		bool	addSyncOptions = `true`
	)

virtual

Adds the front panel local-axis transform knobs. If addSyncOptions is true the import-sync options are added.

References _sceneOpNode, _snapKnobs, _xformComponents, DD::Image::Axis_knob(), and SetAxisKnobAuthoringProvider().

Referenced by addTransformKnobs().

◆ addTransformKnobs()

void SceneOpI::addTransformKnobs	(	Knob_Callback	f,
		bool	addSyncOptions = `true`
	)

virtual

Adds the front panel local-parent & local-axis transform knobs. If addSyncOptions is true the import-sync options are added. Calls addLocalParentingKnobs() then addLocalXformKnobs(), adding dividers.

References _worldXformProvider, addLocalParentXformKnobs(), addLocalXformKnobs(), DD::Image::Array_knob(), DD::Image::BeginClosedGroup(), DD::Image::BeginOpenGroup(), DD::Image::Divider(), DD::Image::Knob::DO_NOT_WRITE, DD::Image::EndGroup(), DD::Image::Knob::ENDLINE, getAxisOp(), DD::Image::SetFlags(), DD::Image::Knob::STARTLINE, and DD::Image::Tooltip().

Referenced by DD::Image::CameraSceneOp::knobs(), and DD::Image::LightSceneOp::knobs().

◆ addExtraFrontPanelKnobs()

void SceneOpI::addExtraFrontPanelKnobs ( Knob_Callback f )

virtual

Adds additional front-panel knobs. Called before addTransformKnobs(). Base class adds nothing.

Reimplemented in DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

◆ KnobDefinesGeometry()

void SceneOpI::KnobDefinesGeometry ( const Knob_Closure & f )

Use this method if the Knob's value will affect the output scenegraph topology by adding/removing Prims or Attributes, or by changing their names or paths in the output scenegraph.

If the knob is just changing the contents of an existing attribute rather than explicitly creating that attribute, use KnobModifiesExportedAttribValues() instead.

◆ KnobModifiesAttribValues()

void SceneOpI::KnobModifiesAttribValues ( const Knob_Closure & f )

Use this method if the Knob's value is changing the contents of an existing attribute in an output prim.

Referenced by DD::Image::LightSceneOp::addScanlineRenderFalloffKnobs(), DD::Image::LightSceneOp::addScanlineRenderMaskingKnobs(), and DD::Image::LightSceneOp::addScanlineRenderShadowKnobs().

◆ asGeometryProvider()

GeometryProviderI * DD::Image::SceneOpI::asGeometryProvider ( )

inlineoverridevirtual

GeometryProviderI: Allow subclasses to gain access to sibling functions.

Implements DD::Image::GeometryProviderI.

◆ geometryComposeState()

fdk::Hash SceneOpI::geometryComposeState ( )

overridevirtual

GeometryProviderI: Returns the compose state of the exportLayer.

Implements DD::Image::GeometryProviderI.

References _sceneOpNode, DD::Image::Op::editVersionHash(), getAxisOp(), and DD::Image::Op::validate().

◆ geometryEditVersionState()

fdk::Hash SceneOpI::geometryEditVersionState ( )

overridevirtual

GeometryProviderI: Returns the edit state of the exportLayer.

Implements DD::Image::GeometryProviderI.

References _sceneOpNode, DD::Image::Op::editVersionHash(), getAxisOp(), and DD::Image::Op::validate().

◆ geometryStateVaries()

bool SceneOpI::geometryStateVaries ( )

overridevirtual

GeometryProviderI: Return true if this SceneOp varies in time, which could be from a constraint input or local transform knobs animating. Note that the parent Op connection is not considered since it does not affect this SceneOp's local transforms.

Implements DD::Image::GeometryProviderI.

References _sceneOpNode, DD::Image::Op::editVersionHash(), getAxisOp(), and DD::Image::Op::validate().

◆ canProvideGeometryStage()

bool DD::Image::SceneOpI::canProvideGeometryStage ( ) const

inlineoverridevirtual

GeometryProviderI: Provides a fully constructed usg::Stage via buildGeometryStage().

Reimplemented from DD::Image::GeometryProviderI.

◆ canProvideGeometryFor()

bool SceneOpI::canProvideGeometryFor ( const usg::Token & purpose ) const

overridevirtual

GeometryProviderI: Return true if the AxisOp this is attached to should provide geometry for the given purpose. SceneOps usually do not generate renderable geometry like meshes, so by default if purpose is usg::GeomTokens.overlay then return true, otherwise false.

Reimplemented from DD::Image::GeometryProviderI.

◆ buildGeometryStage()

void SceneOpI::buildGeometryStage	(	usg::StageRef &	stage,
		const usg::ArgSet &	requestArgs = `{}`,
		const fdk::TimeValueSet &	sampleTimes = `fdk::TimeValueSet()`
	)

overridevirtual

GeometryProviderI: Provide the cached exported stage. The cached stage is only created when this method is called. If the cached stage has the same composeState as the exporter then buildGeometryLayer() is called with any additional sample times but the cached stage itself is left untouched. stage is then set to the exporter's cached stage.

Reimplemented from DD::Image::GeometryProviderI.

References DD::Image::GeometryProviderI::buildGeometryStage().

◆ writeScenePrimsToLayer()

void SceneOpI::writeScenePrimsToLayer	(	usg::LayerRef &	layer,
		bool	appendTo,
		const fdk::FrameValueSet &	times
	)

Write prims this SceneOp generates to an external layer, ignoring the SceneOp's state.

This method is assumed to be called from a separate object which owns the Layer and is handling the allocation and clearing of the layer & clearing any attributes.

layer is assumed to have been created, configured and valid. The list of sample times is a request to the SceneOp and is not guaranteed to result in those exact time samples in the output layer. For example a Knob may not be animated and will only set the default sample, or the keyframes being output are sparse.

References _writeScenePrims().

◆ _createAuthoringProvider()

AuthoringProvider * SceneOpI::_createAuthoringProvider	(	Knob *	k,
		uint64_t	componentId
	)

protectedvirtual

Subclass implementation of SetValueProvider to create the correct AuthoringProvider subclass and store in the SceneOpNode. Default implementation creates an AxisValsProvider.

Reimplemented in DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

Referenced by DD::Image::CameraSceneOp::_createAuthoringProvider(), DD::Image::LightSceneOp::_createAuthoringProvider(), and SetAuthoringProvider().

◆ buildSourceSceneState()

virtual fdk::Hash DD::Image::SceneOpI::buildSourceSceneState ( const fdk::Hash & hash )

inlineprotectedvirtual

Called by SceneOpNode when determining the global source scene state hash. Subclasses can implement this to take any additional values into consideration when determining extractor state, like local knob values, but must careful not to include possibly animating values like Op::hash().

Note that is assumed to be called on the firstOp() and not any specific OutputContext, so all Knob value queries should to be done directly on a Knob and must avoid relying on Op::knobs() storing into local Op variables.

This should always be called from the main thread.

Base class does nothing.

Reimplemented in DD::Image::CameraSceneOp.

◆ getExtractKeyRange()

void SceneOpI::getExtractKeyRange	(	SceneOpNodeI::SharedData &	data,
		fdk::TimeValue &	firstKey,
		fdk::TimeValue &	lastKey
	)

protectedvirtual

Retrieve the first/last range of keyframes for all prim attributes that will be extracted from. If there are no keyframes (no animation) then set the first/last keys to fdk::defaultTimeValue(). This special value helps a provider quickly determine there are no animated values and thus speed up value retrievals.

Default implementation retrieves any xform attribute keyframes, or if none sets the first/last keys to fdk::defaultTimeValue().

◆ extractSceneData()

bool SceneOpI::extractSceneData	(	SceneOpNodeI::SharedData &	data,
		const fdk::TimeValueSet &	addlSampleTimes = `fdk::TimeValueSet()`
	)

protectedvirtual

Extract the scene data that needs to be cached or processed for the entire scene range. Usually called by SceneOpNode updateSourceSceneData() when the source scene state changes. This should always be called from the main thread.

Important note: the particular Op instance this method is called on is unimportant as the data created by this method is intended to be shared by all sibling Ops. One random Op instance will be called for each configuration change (a stage, prim path or input change) so avoid storing any local data into this Op instance.

Not all prim data needs to be cached if cheap to retrieve from USD, however a good example of expensive data is extracting and decomposing transform matrices which need to be euler filtered over the entire scene. In these cases it's cheaper to do the processing all at once and cache the result.

Default implementation calls extractSceneXformData() and returns true.

References DD::Image::SceneOpNodeI::SceneData::axisValsSet, extractSceneXformData(), DD::Image::GeometryProviderI::getGeometryProviderOp(), DD::Image::SceneOpNodeI::SceneData::isDefaultXforms, DD::Image::Op::nodeName(), DD::Image::AxisVals::print(), DD::Image::SceneOpNodeI::SharedData::sceneData, sourcePrimEnabled(), sourcePrimPath(), and sourceStage().

◆ extractSceneXformData()

void SceneOpI::extractSceneXformData	(	SceneOpNodeI::SharedData &	data,
		AxisValsArray &	axisValsSamples,
		bool &	isDefaultXforms,
		const fdk::TimeValueSet &	addlSampleTimes = `fdk::TimeValueSet()`
	)		const

protectedvirtual

Default implementation extracts the transform info by decomposing the parent and local matrices and runs a euler filter to remove flips, caching the resulting data for the PrimValueProviders to later retrieve. This work is only done when the stage contents change, either via recomposition or layer/stage edits.

References DD::Image::AxisVals::ApplyEulerFilter(), DD::Image::AxisVals::enableParentXformVals(), DD::Image::SceneOpNodeI::ConfigParams::eulerFilterEnable, DD::Image::AxisVals::extractFromMatrix(), getLocalAxisKnob(), DD::Image::SceneOpNodeI::ConfigParams::localExtractEnable, DD::Image::SceneOpNodeI::SharedData::params, params(), DD::Image::SceneOpNodeI::ConfigParams::parentCombineEnable, DD::Image::SceneOpNodeI::ConfigParams::parentExtractEnable, sourcePrimPath(), and sourceStage().

Referenced by extractSceneData().

◆ getXformDataAt()

AxisVals SceneOpI::getXformDataAt	(	SceneOpNodeI::SharedData &	data,
		const OutputContext &	context
	)		const

protectedvirtual

Retrieve the transform data for a single time sample at OutputContext. Assumes that extractSceneData() has already been called to first perform any global scene data processing and any caches are ready to be read from.

Default implementation retrieves the AxisVals from the transform cache and does any required interpolation.

References DD::Image::AxisVals::GetAxisValsAtTime(), DD::Image::AxisVals::parentR, DD::Image::AxisVals::parentS, DD::Image::AxisVals::parentT, DD::Image::AxisVals::rotate, DD::Image::AxisVals::scaling, DD::Image::AxisVals::setToDefault(), transformCache(), and DD::Image::AxisVals::translate.

◆ _validateTransforms()

void SceneOpI::_validateTransforms	(	bool	for_real,
		ndk::XformParameters &	outputXformParams
	)

protectedvirtual

Call this from owner (Axis)Op's implementation of Op::_validate() to build the local _xformComponents.localParentAxis, _xformComponents.localAxis and final local transform matrices for the current (Axis)Op's store state.

Default implementation builds _xformComponents.localParentAxis from the local parent TRS knobs. _xformComponents.localAxis has already been built during Knob store by the 'transform' Axis_Knob but a subclass could override that result via _getSceneOpLocalAxisTransform().

The local transform matrices are build by calling _buildLocalTransforms() with the updated individual transform components, then those are used to build the final concatentated output transforms in outputXformParams.

Note that the concatenated world matrices (l2w, w2l) in outputXformParams should not be calculated in this method and should be handled by the caller.

References _buildLocalTransforms(), _localParentRotate, _localParentScale, _localParentTranslate, _sceneOpNode, _xformComponents, DD::Image::AxisOp::constrainInputOp(), getAxisOp(), DD::Image::Op::nodeName(), DD::Image::Op::outputContext(), DD::Image::AxisOp::parentInputOp(), and DD::Image::AxisOp::worldTransform().

◆ _buildLocalTransforms()

void SceneOpI::_buildLocalTransforms	(	const ndk::XformComponents &	xformComponents,
		fdk::Mat4d &	preConstraintXform,
		const ndk::ConstraintMatrixParams &	constraintParams,
		ndk::XformParameters &	finalLocalXforms
	)		const

protectedvirtual

Build the final local transforms from the individual transform components, applying any additional constraints.

By default this is called by _validateTransforms() and _getSceneOpWorldTransformAt() so the same transform calculations are done for both evaluation paths.

Note that the concatenated world matrices (l2w, w2l) in finalLocalXforms should not be calculated in this method and should be handled by the caller.

References _applyConstraintToParent, and DD::Image::ConstrainOpI::getConstraintType().

Referenced by _getSceneOpTransformComponentsAt(), and _validateTransforms().

◆ _getLocalParentTransformAnimation()

bool SceneOpI::_getLocalParentTransformAnimation	(	fdk::TimeValueSet *	keyTimes = `nullptr`,
		int32_t *	nAnimatedExpressions = `nullptr`,
		int32_t	view = `-1`
	)		const

protectedvirtual

Does the local parent transform animate? This is only an indicator that the transform -MAY- vary in time, not that its value actually does. Default implementation returns true if the local parent knobs have animation enabled or if the constraint input Op varies and it is applied to the local parent TRS. If the knob(s) are animated and keyTimes provided then the knob animation keys times are appended to it. If view is > -1 then the times are retrieved from just that view. If any knobs have expressions but no keyframes then this will also return true, and nAnimatedExpressions will be set > 0, if provided.

References _applyConstraintToParent, DD::Image::Knob::animationTimes(), DD::Image::AxisOp::constrainInputOp(), getAxisOp(), DD::Image::Knob::hasExpression(), DD::Image::Knob::isAnimated(), DD::Image::Op::knob(), and DD::Image::Op::varyingOutputHash().

Referenced by _writeTransformOps().

◆ _getLocalTransformAnimation()

bool SceneOpI::_getLocalTransformAnimation	(	fdk::TimeValueSet *	keyTimes = `nullptr`,
		int32_t *	nAnimatedExpressions = `nullptr`,
		int32_t	view = `-1`
	)		const

protectedvirtual

Does the local parent animate? This is only an indicator that the transform -MAY- vary in time, not that its value actually does. Default implementation returns true if the local parent knobs have animation enabled or animated expressions, or if the constraint input Op varies and it is applied to the local parent TRS. If the knob(s) are animated and keyTimes provided then the knob animation keys times are appended to it. If view is > -1 then the times are retrieved from just that view. If any knobs have expressions but no keyframes then this will also return true, and nAnimatedExpressions will be set > 0, if provided.

References _applyConstraintToParent, DD::Image::Knob::animationTimes(), DD::Image::AxisOp::constrainInputOp(), getAxisOp(), DD::Image::Knob::hasExpression(), DD::Image::Knob::isAnimated(), DD::Image::Op::knob(), and DD::Image::Op::varyingOutputHash().

Referenced by _writeTransformOps().

◆ _getSceneOpWorldTransformAt()

Mat4d SceneOpI::_getSceneOpWorldTransformAt ( const OutputContext & context ) const

protectedvirtual

Calculate the final world transform at a specific OutputContext.

Note that this does the same transform calculation as _validateTransforms() but samples all knobs and inputs at a different context than the one the AxisOp is at by calling the individual transform component 'At(context)' methods.

References _getSceneOpTransformComponentsAt(), getAxisOp(), and DD::Image::Op::nodeName().

Referenced by DD::Image::AxisSceneOp::_getWorldTransformAt(), DD::Image::CameraSceneOp::_getWorldTransformAt(), and DD::Image::LightSceneOp::_getWorldTransformAt().

◆ _sceneOpResetTargetState()

void DD::Image::SceneOpI::_sceneOpResetTargetState ( )

inlineprotected

Call this from the owner Op's implementation of Op::_knobStorePrep(), otherwise the scene op will not update properly. This resets the local GeomStateTargets which are built from knobs during the knobs() store pass.

Referenced by DD::Image::AxisSceneOp::_knobStorePrep(), DD::Image::CameraSceneOp::_knobStorePrep(), and DD::Image::LightSceneOp::_knobStorePrep().

◆ _sceneOpUpdateScenePrimState()

void SceneOpI::_sceneOpUpdateScenePrimState ( const DD::Image::Hash & newOpEditVersionHash )

protected

Call this from the owner Op's implementation of Op::_knobStorePost(), otherwise the scene op will not update properly.

References _sceneOpNode.

Referenced by DD::Image::AxisSceneOp::_knobStorePost(), DD::Image::CameraSceneOp::_knobStorePost(), and DD::Image::LightSceneOp::_knobStorePost().

◆ _sceneOpKnobChanged()

int SceneOpI::_sceneOpKnobChanged	(	Knob *	k,
		int32_t	callAgain
	)

protectedvirtual

Call this from owner Op::knob_changed(). Enables/disables the local parent controls, and calls the SceneOpI interface to let it handle any changes.

References _snapKnobs, and getAxisOp().

◆ buildGeometryLayer()

usg::LayerRef SceneOpI::buildGeometryLayer	(	bool	appendTo,
		const fdk::TimeValueSet &	sampleTimes
	)

overrideprotectedvirtual

Implements DD::Image::GeometryProviderI.

◆ _createParentPrims()

void SceneOpI::_createParentPrims	(	usg::LayerRef &	layer,
		const usg::Path &	basePrimPath
	)

protectedvirtual

Create (define) any parent prims in basePrimPath. These are prims in the path -before- the base prim which is always the last prim in the path. Base class implementation uses parentPrimCreateType() as the prim type to create.

References getAxisOp(), DD::Image::Op::nodeName(), and parentPrimCreateType().

Referenced by DD::Image::AxisSceneOp::_writeScenePrims(), DD::Image::CameraSceneOp::_writeScenePrims(), and DD::Image::LightSceneOp::_writeScenePrims().

◆ _writeScenePrims()

virtual void DD::Image::SceneOpI::_writeScenePrims	(	usg::LayerRef &	layer,
		bool	appendTo,
		const fdk::TimeValueSet &	times = `fdk::TimeValueSet()`
	)

protectedpure virtual

Write prims into the layer. If appendTo is true then only additional time samples should be added to the prim (no define.) layer is assumed to be managed externally. Must implement.

Implemented in DD::Image::AxisSceneOp, DD::Image::CameraSceneOp, and DD::Image::LightSceneOp.

Referenced by writeScenePrimsToLayer().

◆ _writeTransformOps()

void SceneOpI::_writeTransformOps	(	usg::LayerRef &	layer,
		usg::XformablePrim &	xformable,
		bool	appendTo,
		const fdk::FrameValueSet &	times = `fdk::FrameValueSet()`
	)

protectedvirtual

Write the transform data to an Xformable prim. If appendTo is true then only additional time samples should be added to the prim (no define.) A subclass can override this to do additional specialization.

Base class implementation writes separate 'local_parent' and 'local_axis' matrix XformOps.

References _applyConstraintToParent, _getLocalParentTransformAnimation(), _getLocalTransformAnimation(), _sceneOpNode, DD::Image::AxisOp::constrainInputOp(), getAxisOp(), DD::Image::AxisOp::GetTransformComponentsAt(), localAxisXformOpName(), localParentXformOpName(), DD::Image::Op::nodeName(), DD::Image::Op::outputContext(), DD::Image::OutputContext::setView(), and DD::Image::Op::varyingOutputHash().

Referenced by DD::Image::AxisSceneOp::_writeScenePrims(), DD::Image::CameraSceneOp::_writeScenePrims(), and DD::Image::LightSceneOp::_writeScenePrims().

◆ writeKnob() [1/3]

bool SceneOpI::writeKnob	(	const char *	knobName,
		const fdk::FrameValueSet &	times,
		usg::Prim &	outputPrim,
		const usg::Token &	targetPropertyName,
		usg::Value::Type	targetPropertyTypeHint
	)		const

protected

Returns true if value was written or false if not due to error or knob value is at the default.

References writeKnob().

Referenced by DD::Image::CameraSceneOp::_writeScenePrims(), DD::Image::LightSceneOp::_writeScenePrims(), and writeKnob().

◆ writeKnob() [2/3]

bool SceneOpI::writeKnob	(	const char *	knobName,
		bool	ignoreDefaultTest,
		const fdk::FrameValueSet &	times,
		usg::Prim &	outputPrim,
		const usg::Token &	targetPropertyName,
		usg::Value::Type	targetPropertyTypeHint
	)		const

protected

Same but controls the default value testing via the ignoreDefaultTest arg.

If ignoreDefaultTest is false we test if the knob is at its default value and only write the knob if it is off default. USD, like Nuke, will use the default value of the knob as fallback if an explicit value is not authored.

However, often the Nuke knob's default will not be the same as the USD property default, and in those cases we always want to author the USD property so that we don't allow USD to use the default fallback. Examples of this are the various CameraOp lens values like focal length, hAperture, vAperture, etc which historically have a default difference to the UsdGeomCamera schema. We don't want to suddenly change Nuke's (arbitrarily chosen) historic camera defaults to conform to USD's (arbitrarily chosen) defaults.

References getAxisOp(), DD::Image::Op::knob(), DD::Image::Op::nodeName(), and writeKnob().

◆ writeKnob() [3/3]

bool SceneOpI::writeKnob	(	const ArrayKnobRefList &	knobRefs,
		bool	ignoreDefaultTest,
		const fdk::FrameValueSet &	times,
		usg::Prim &	outputPrim,
		const usg::Token &	targetPropertyName,
		usg::Value::Type	targetPropertyType
	)		const

protected

Same but the attribute Value can be filled in from multiple source ArrayKnobs. This is need when multiple source Knobs contribute to one attribute Value. If any of the source knobs are animated then the output attribute will have time samples.

Note - targetPropertyType is required since a specfic type cannot be divined from multiple source knobs.

References DD::Image::Authoring::DefaultValue, getAxisOp(), DD::Image::Authoring::NoChange, DD::Image::Op::nodeName(), DD::Image::Authoring::SetValue, and DD::Image::OutputContext::setView().

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Function Documentation

◆ getAxisOp()

◆ sceneInput()

◆ sceneInputOp()

◆ parentInputSceneOp()

◆ constrainInputSceneOp()

◆ primarySchemaType()

◆ getAppliedApiSchemaTypes()

◆ parentPrimCreateType()

◆ buildBasePrimPath()

◆ primPathFilter()

◆ transformCache()

◆ SetAxisKnobAuthoringProvider()

◆ getAuthoringProviderKnobMap()

◆ opKnob()

◆ addImportOptionKnobs()

◆ addXformExtractOptionKnobs()

◆ addExportOptionKnobs()

◆ addDisplayOptionsKnobs()

◆ addLocalParentXformKnobs()

◆ addLocalXformKnobs()

◆ addTransformKnobs()

◆ addExtraFrontPanelKnobs()

◆ KnobDefinesGeometry()

◆ KnobModifiesAttribValues()

◆ asGeometryProvider()

◆ geometryComposeState()

◆ geometryEditVersionState()

◆ geometryStateVaries()

◆ canProvideGeometryStage()

◆ canProvideGeometryFor()

◆ buildGeometryStage()

◆ writeScenePrimsToLayer()

◆ _createAuthoringProvider()

◆ buildSourceSceneState()

◆ getExtractKeyRange()

◆ extractSceneData()

◆ extractSceneXformData()

◆ getXformDataAt()

◆ _validateTransforms()

◆ _buildLocalTransforms()

◆ _getLocalParentTransformAnimation()

◆ _getLocalTransformAnimation()

◆ _getSceneOpWorldTransformAt()

◆ _sceneOpResetTargetState()

◆ _sceneOpUpdateScenePrimState()

◆ _sceneOpKnobChanged()

◆ buildGeometryLayer()

◆ _createParentPrims()

◆ _writeScenePrims()

◆ _writeTransformOps()

◆ writeKnob() [1/3]

◆ writeKnob() [2/3]

◆ writeKnob() [3/3]
