#include <CameraOp.h>

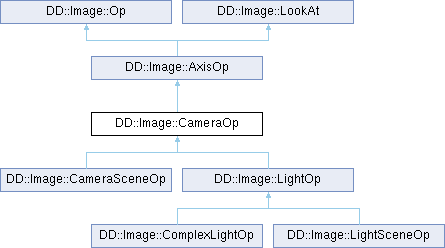

Inheritance diagram for DD::Image::CameraOp:

Public Types
typedef void()	LensFunc(Scene , CameraOp , MatrixArray transforms, const VArray &v, Vector4 &out, void data)

typedef void()	LensNFunc(Scene , CameraOp , MatrixArray transforms, VArray vert_array, int n, void *data)

Public Types inherited from DD::Image::Op
enum	HandlesMode { eNoHandles , eHandlesUncooked , eHandlesCooked , eHandlesMax }

enum	PrevalidateResult { eFinished , eCancelled , eAbandoned }
	This is a tribool return value. Do not extend.

enum	HandleType { eNone , eMouseLeftClick , eMouseRightClick , eMouseMove , eMouseDrag , eMouseRelease , eSelectionChanged , eSelectionChangeFinished , eHandleDragTranslate , eHandleDragRotate , eHandleDragScale , eHandleDragPivot , eAllHandles }

enum	ViewableModes { eViewableMode2D , eViewableMode3D , eViewableMode3D_2DReference }

enum	GenerateType { OUTPUT_OP , ANY_CONTEXT , INPUT_OP , INPUT_OP_PEEK , EXECUTABLE , EXECUTABLE_SKIP , EXECUTABLE_INPUT , UICONTEXT_ONLY }

enum	NodeContext { eNodeGraph , eTimeline , eOpGraph }

enum	StatusFlags { StatusNone , StatusModal , StatusUseCallback }

enum	PopUpScheme { ePU_Never , ePU_Done , ePU_Once , ePU_Default , ePU_Always }
	Pop-up schemes determine when pop-up messages are displayed for op errors. More...

enum	VersionComponents { eMajor , eMinor , ePoint , eRevision }
	Enum to help get the desired version component from the VersionInfo tuple.

using	InputList = std::vector< Input >

using	InputConnectionContext = std::pair< Input, OutputContext >
	Combination of Op input and the OutputContext it is being referenced at.

using	InputConnectionContextList = std::vector< InputConnectionContext >

using	Output = std::pair< int, DD::Image::Op * >
	Combination of input number and pointer to downstream Op input is on.

using	OutputSet = std::set< Output >
	Set of all outputs from this Op.

typedef std::map< Hash, std::vector< unsigned int > >	ItemSelectionList

typedef bool()	EventCallback(Op *op, EventContext eventCtx)

using	VersionInfo = std::tuple< int, int, int, int >
	Contains version components with each index defined by the VersionComponents enum.

Public Member Functions
	CameraOp (Node *node)

const CameraOp *	cameraOp () const override
	Cast to a CameraOp. This is much cheaper and safer than using dynamic_cast.

CameraOp *	cameraOp () override

CameraOp *	getCameraOpAt (const OutputContext &context)
	Retrieve a version of this CameraOp at a specific OutputContext.

OpHints	opHints () const override
	Return hints to control when and how this op will be evaluated by the top-down system.

unsigned	node_color () const override

void	_validate (bool for_real) override

void	knobs (Knob_Callback) override

int	knob_changed (Knob *) override

virtual Knob *	projectionSelectorKnob () const

virtual ProjectionFunc *	projectionPlugin () const
	The currently-assigned projection plugin.

ndk::LensProjection	projectionMode () const override

bool	setProjection (const char *projectionClassName)

void	setProjectionMode (ndk::LensProjection mode)

virtual const char *	projectionFuncClassName (Knob *selectorKnob=nullptr) const

bool	isBaseProjectionLinear () const override

virtual fdk::Mat4d	projectionModeMatrix (ndk::LensProjection mode) const

virtual fdk::Mat4d	projectionModeMatrixAt (ndk::LensProjection mode, const OutputContext &context) const
	Same as projectionMatrix() except it evaluates the matrix at an arbitrary OutputContext.

HandlesMode	doAnyHandles (ViewerContext *ctx) override

void	build_handles (ViewerContext *) override

void	draw_handle (ViewerContext *) override
	Draws a lovely camera, I think it is a Mitchell.

enum	mFnDeprecatedLegacy3DSystemInNuke14 ("Enumeration deprecated, use enum class ndk::LensProjection instead.")

	mFnDeprecatedLegacy3DSystemInNuke14 ("Class() has been deprecated, implement on subclass plugin instead.") const char *Class() const override

	mFnDeprecatedLegacy3DSystemInNuke14 ("node_help() has been deprecated, implement on subclass plugin instead.") const char *node_help() const override

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_knobs() has been deprecated, use CameraSceneOp::addProjectionKnobs() instead.") virtual void projection_knobs(Knob_Callback f)

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_knobs() has been deprecated, use CameraSceneOp::addDistortionKnobs() instead.") virtual void lens_knobs(Knob_Callback f)

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection() has been deprecated, use projectionMatrix() instead") const Matrix4 &projection() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("hfov(double) has been deprecated, use setHorizontalFov() instead") void hfov(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("film_width() has been deprecated, use horizontalAperture() instead") double film_width() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("film_height() has been deprecated, use verticalAperture() instead") double film_height() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_length() has been deprecated, use focalLength() instead") double focal_length() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("Near() has been deprecated, use nearPlaneDistance() instead") double Near() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("Far() has been deprecated, use farPlaneDistance() instead") double Far() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_point() has been deprecated, use focusDistance() instead") double focal_point() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("fstop() has been deprecated, use fStop() instead") double fstop() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("film_width(double) has been deprecated, use setHorizontalAperture() instead") void film_width(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("film_height(double) has been deprecated, use setVerticalAperture() instead") void film_height(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_length(double) has been deprecated, use setFocalLength() instead") void focal_length(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("Near(double) has been deprecated, use setNearPlaneDistance() instead") void Near(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("Far(double) has been deprecated, use setFarPlaneDistance() instead") void Far(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_point(double) has been deprecated, use setFocusDistance() instead") void focal_point(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("fstop(double) has been deprecated, use setfStop() instead") void fstop(double v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("win_translate() has been deprecated, use windowTranslate() instead") const Vector2 &win_translate() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("win_scale() has been deprecated, use windowScale() instead") const Vector2 &win_scale() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("win_roll() has been deprecated, use windowRotateZ() instead") double win_roll() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_mode() has been deprecated, use projectionMode() instead") int projection_mode() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_mode(int) has been deprecated, use setProjectionMode() instead") void projection_mode(int i)

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_is_linear(int) has been deprecated, use isProjectionModeLinear(ndk::LensProjection) instead") virtual bool projection_is_linear(int mode) const

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection(int) has been deprecated, use projectionModeMatrix(ndk::LensProjection) instead") virtual Matrix4 projection(int mode) const

	mFnDeprecatedLegacy3DSystemInNuke14 ("projectionAt(OutputContext) has been deprecated, use projectionModeMatrixAt(ndk::LensProjection, OutputContext) instead") virtual Matrix4 projectionAt(const OutputContext &)

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_a() has been deprecated, use distortA() instead") double lens_distort_a() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_b() has been deprecated, use distortB() instead") double lens_distort_b() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_c() has been deprecated, use distortC() instead") double lens_distort_c() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_D() has been deprecated") double lens_distort_D() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distortion() has been deprecated") double lens_distortion() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_power() has been deprecated") double lens_power() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_enabled() has been deprecated") bool lens_distort_enabled() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_function(int mode) has been deprecated.") virtual LensFunc *lens_function(int mode) const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lensNfunction(int mode) has been deprecated.") virtual LensNFunc *lensNfunction(int mode) const

	mFnDeprecatedLegacy3DSystemInNuke14 ("to_format has been deprecated, use ToFormat instead.") static void to_format(Matrix4 &

const Format *	mFnDeprecatedLegacy3DSystemInNuke14 ("from_format has been deprecated, use FromFormat instead.") static void from_format(Matrix4 &

const Format const Format *	mFnDeprecatedLegacy3DSystemInNuke14 ("toTormat has been deprecated, use ToFormat instead.") static void toFormat(fdk

	mFnDeprecatedLegacy3DSystemInNuke14 ("fromFormat has been deprecated, use FromFormat instead.") static void fromFormat(fdk

Public Member Functions inherited from DD::Image::AxisOp
	AxisOp (Node *node, int defaultLookAtAxis=LookAt::kAxisZPlus)

const AxisOp *	axisOp () const override
	Cast this Op to an AxisOp. This is much cheaper and safer than using dynamic_cast.

AxisOp *	axisOp () override

AxisOp *	getAxisOpAt (const OutputContext &context)
	Retrieve a version of this AxisOp at a specific OutputContext.

bool	can_link () const override

const char *	node_shape () const override
	Draw node as a circular shape.

unsigned	node_color () const override

virtual AxisOp *	parentInputOp () const
	Convenience that casts parent input 0 to an AxisOp.

virtual int32_t	parentInput () const

virtual AxisOp *	constrainInputOp () const
	Return the constrainInput() input cast to an AxisOp, if possible.

virtual int32_t	constrainInput () const

int	minimum_inputs () const override
	Default is 2: axis and scene(optional)

int	maximum_inputs () const override
	Default is 3: axis, constraint and scene.

int	optional_input () const override
	Optional input index.

bool	test_input (int node_input, Op *op) const override
	AxisOp and null works on 0, GeomOp or null on input 1 and AxisOp or null on input 2.

Op *	default_input (int node_input) const override
	Returns null for all inputs. Override this so Op::test_input() doesn't produce warnings.

const char *	input_label (int node_input, char *) const override

	mFnDeprecatedLegacy3DSystemInNuke14 ("isLegacyAxisOp() has been deprecated, port AxisOp sublass to AxisSceneOp.") bool isLegacyAxisOp() const

void	knobs (Knob_Callback f) override

int	knob_changed (Knob *k) override

void	_validate (bool for_real) override

virtual bool	localParentTransformVaries () const

virtual bool	localTransformVaries () const

virtual const ndk::XformComponents &	transformComponents () const

virtual const fdk::Mat4d &	inputParentTransform () const

virtual void	setInputParentTransform (const fdk::Mat4d &)

virtual const fdk::Mat4d &	localParentAxisTransform () const

virtual void	setLocalParentAxisTransform (const fdk::Mat4d &)

virtual const fdk::Mat4d &	localAxisTransform () const

virtual void	setLocalAxisTransform (const fdk::Mat4d &)

const fdk::Mat4d &	parentTransform () const

void	setParentTransform (const fdk::Mat4d &)

const fdk::Mat4d &	localTransform () const

void	setLocalTransform (const fdk::Mat4d &)

const fdk::Mat4d &	worldTransform () const

const fdk::Mat4d &	invWorldTransform ()

void	setWorldTransform (const fdk::Mat4d &)

int	display3d () const

int	display3d ()

void	setDisplay3d (int mode)

	mFnDeprecatedLegacy3DSystemInNuke14 ("isLegacyAxisOp() has been deprecated, port AxisOp sublass to AxisSceneOp.") virtual bool _isLegacyAxisOp() const

mFnDeprecatedLegacy3DSystemInNuke14("worldTransformAt() deprecated on AxisOp, use the static AxisOp::GetWorldTransformAt(AxisOp) " "method instead. If implementing an override of this method implement _getWorldTransformAt().") virtual fdk	mFnDeprecatedLegacy3DSystemInNuke14 ("getAxis() deprecated on AxisOp, now implemented on AxisSceneOp::getLocalAxisKnob().") Axis_KnobI *getAxis()

	mFnDeprecatedLegacy3DSystemInNuke14 ("enableAxisKnobs() deprecated on AxisOp, now implemented on AxisSceneOp.") void enableAxisKnobs(bool on)

mFnDeprecatedLegacy3DSystemInNuke14("enableKnobs() deprecated on AxisOp, now implemented on AxisSceneOp.") void enableKnobs(const std	mFnDeprecatedLegacy3DSystemInNuke14 ("doAnyHandle() deprecated on AxisOp, implement on AxisSceneOp instead.") HandlesMode doAnyHandles(ViewerContext *) override

	mFnDeprecatedLegacy3DSystemInNuke14 ("draw_handle() deprecated on AxisOp, implement on AxisSceneOp instead.") void build_handles(ViewerContext *) override

	mFnDeprecatedLegacy3DSystemInNuke14 ("draw_handle() deprecated on AxisOp, implement on AxisSceneOp instead.") void draw_handle(ViewerContext *) override

bool	selectable () const

void	setSelectable (bool v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("editable() deprecated on AxisOp, implement on AxisSceneOp instead.") bool editable() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("setEditable() deprecated on AxisOp, implement on AxisSceneOp instead.") void setEditable(bool v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("Class() has been deprecated, implement on subclass plugin instead.") const char *Class() const override

	mFnDeprecatedLegacy3DSystemInNuke14 ("node_help() has been deprecated, implement on subclass plugin instead.") const char *node_help() const override

	mFnDeprecatedLegacy3DSystemInNuke14 ("selectable(bool mode) has been deprecated, use AxisSceneOp::setSelectable() instead.") void selectable(bool v)

	mFnDeprecatedLegacy3DSystemInNuke14 ("display3d(int mode) has been deprecated, use setDisplay3d() instead.") void display3d(int mode)

	mFnDeprecatedLegacy3DSystemInNuke14 ("input0() has been deprecated, use parentInput() instead.") AxisOp *input0() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lookAtEnabled() has been deprecated") virtual bool lookAtEnabled() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("lookat_input() has been deprecated") Op *lookat_input() const override

	mFnDeprecatedLegacy3DSystemInNuke14 ("matrix(const Matrix4&) has been deprecated, use setWorldTransform() instead.") void matrix(const Matrix4 &)

	mFnDeprecatedLegacy3DSystemInNuke14 ("local() has been deprecated, use localTransform() instead.") const Matrix4 &local() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("matrix() has been deprecated, use worldTransform() instead.") const Matrix4 &matrix() const

	mFnDeprecatedLegacy3DSystemInNuke14 ("imatrix() has been deprecated, use invWorldTransform() instead.") const Matrix4 &imatrix()

	mFnDeprecatedLegacy3DSystemInNuke14 ("matrixAt() has been deprecated, use worldTransformAt() instead.") virtual void matrixAt(const OutputContext &

Public Member Functions inherited from DD::Image::Op
PrevalidateResult	preValidate (ViewerContext ctx=nullptr, PreValidateContext =nullptr)

Op *	rootOp () const

bool	preValidateAborted (int treeStartingVersion, PrevalidateResult &result) const

const OutputSet &	getOutputs () const
	return all the outputs of this node

virtual void	setInputsValid (bool nowValid)
	set whether the input ops are valid (are for the right context)

bool	inputsValid () const
	return whether the input ops are valid (are for the right context)

virtual bool	can_clone () const
	returns whether or not an op can be cloned in the dag

virtual bool	can_link () const
	returns whether or not an op can be linked in the dag

const Hash &	hash () const

bool	haveHash () const
	return true if the hash() value is meaningful and globally unique

bool	varyingOutputHash () const

void	setVaryingOutputHash (bool varyingHashes)
	Set the varyingOutputHash indicator to a specific state.

void	enableVaryingOutputHash ()
	Enable the varyingOutputHash indicator.

virtual Hash	editVersionHash () const

virtual void	setEditVersionHash (const Hash &h)

virtual std::vector< DD::Image::OutputContext >	getPrevVersionsWanted () const

virtual const MetaData::Bundle &	_fetchMetaData (const char *keyname)

const MetaData::Bundle &	fetchMetaData (const char *keyname)

Node *	node () const

DD::Image::NodeI *	getNode () const

void	node (Node *v)

virtual const char *	nodeClass () const

virtual const char *	nodeName () const

virtual std::string	nodeFullPath (char separator='.') const

Hash	nodeTopologyHash () const

Hash	nodeEditVersionHash () const

Op *	firstOp () const

void	firstOp (Op *v)

Op *	parent () const

void	parent (Op *lpOp)

virtual void	detach ()
	node has been deleted in DAG

virtual void	attach ()
	node has been created in DAG

virtual void	pre_write_knobs ()

void	knobStorePrep (const OutputContext &opStoreContext)

virtual void	knobs (Knob_Callback)

void	knobStorePost (const OutputContext &opStoreContext, Hash &newOpHash, Hash &newOpEditVersionHash)

int	replace_knobs (Knob afterthis, int n, void(f)(void , Knob_Callback), void , const char *fileExt=nullptr)

int	add_knobs (void(f)(void , Knob_Callback), void *, Knob_Callback)

void	set_unlicensed ()

Knob *	knob (const char *name) const

Knob *	knob (int) const

bool	pushed () const

bool	panel_visible () const

bool	node_disabled () const

bool	node_selected () const

unsigned	node_gl_color () const

void *	field (const char *name)

void *	field (const char *name, int &type)

void *	set_field (const char name, const void source, int size)

void *	get_field (const char name, void dest, int size)

void	beginHandle (HandleType command, ViewerContext ctx, EventCallback cb, int index, float x=0, float y=0, float z=0, ViewerContext::Cursor cursor=ViewerContext::kNoCursor)

void	endHandle (ViewerContext *ctx)

virtual int	knob_changed (Knob *)

virtual int	knob_change_finished (Knob *knob, bool changedByUser=true)

void	addTime (OpTimer::Category category, long long microsecondsCPU, long long microsecondsWall, bool isTopLevel=true)

void	getPerformanceInfo (OpTimer::Category category, OpTimer::PerformanceInfo &info) const
	return the amount of CPU time taken by this op

virtual bool	inputs_clockwise () const
	whether unconnected inputs on the DAG should be arranged clockwise or anticlockwise (default)

virtual std::vector< int >	input_order () const

virtual int	inputArrows (int nodeInputs) const

bool	script_command (const char *command, bool py=true, bool eval=true) const

bool	script_expand (const char *str) const

HandlesMode	anyHandles (ViewerContext *ctx)

virtual void	build_handles (ViewerContext *)

void	add_draw_handle (ViewerContext *)

virtual void	draw_handle (ViewerContext *)

virtual void	add_input_handle (int input, ViewerContext *)

void	add_op_handle (ViewerContext *ctx)

void	add_knob_handle (Knob , ViewerContext )

virtual int	getViewableModes () const

virtual int	optional_input () const

virtual int	minimum_inputs () const

virtual int	maximum_inputs () const

virtual bool	test_input (int, Op *) const

int	inputs () const

int	node_inputs () const

OpGraphLocation	nodeInputConnection (int32_t nodeInput, GenerateType type=OUTPUT_OP) const

OpGraphLocation	nodeInputConnection (int32_t nodeInput, GenerateType type, const OutputContext *context) const

Op *	node_input (int, GenerateType=OUTPUT_OP) const

Op *	node_input (int, GenerateType, const OutputContext *context) const

Op *	input_op (int n=0) const

virtual void	inputs (int n)

Op *	input (int) const

Op *	inputAt (int input, const OutputContext &context, GenerateType type=EXECUTABLE_INPUT) const

int	inputNumber (int input, int offset) const

Op *	input (int input, int offset) const

Op *	input0 () const
	return the primary input

Op *	input1 () const
	return the second input, if it exists

const Input &	inputConnection (int32_t input) const

const Input &	inputConnection (int32_t base, int32_t offset) const

	mFnDeprecatedInNuke17 ("getInputs() has been deprecated, use getInputOps() instead") const OpList &getInputs() const

OpList	getInputOps () const

const InputList &	getInputConnections () const

const OpList &	getChildren () const

	mFnDeprecatedInNuke17 ("set_input(int, Op*, int, int) has been deprecated, use setInput(int, Input) and implement _setInput() instead") virtual void set_input(int i

void	set_input0 (Op *op)

void	set_input (int i, Op *op)

void	set_input (int i, Op &op)

void	set_input (int input, int offset, Op *op)
	Same as setInput(inputNumber(n, offset), op, n, offset);.

void	setInput (int32_t input, const OpGraphLocation &connection)
	Same as setInput(input, connection, input, 0).

void	setInput (int32_t input, const OpGraphLocation &connection, int32_t base, int32_t offset)

const OutputContext &	outputContext () const

virtual void	setOutputContext (const OutputContext &c)

virtual void	append (Hash &)

virtual float	uses_input (int) const

virtual void	build_splits ()

virtual int	split_input (int) const

virtual const OutputContext &	inputContext (int n, int offset, OutputContext &) const

virtual const OutputContext *	inputUIContext (int n, OutputContext &) const

virtual Op *	default_input (int) const

virtual bool	frameTransformImplemented () const

virtual bool	frameTransformDownstream (const OutputContext &context, unsigned int input, float inFrame, float &outFrame) const

virtual bool	frameTransformUpstream (const OutputContext &context, unsigned int input, float outFrame, float &inFrame) const

virtual DopeItemFlags::Mask	getDopeItemFlags () const

virtual bool	shouldHideInDopeSheet (Knob *knob) const

virtual DD::Image::Knob *	getDopeItemKnob () const

virtual ViewSet	viewsProduced () const

virtual ViewSet	viewsWantOn (int i) const

virtual ViewSet	splitForViews () const

bool	requested () const

void	setRequested ()

void	forgetRequestShallow ()

void	forget_request ()

void	forget_request (OpSet &forgotten)

virtual const char *	node_shape () const

DD::Image::Hash	curveHash () const

bool	opCurrent () const

virtual unsigned	node_color () const

virtual const char *	node_help () const =0

virtual const char *	input_label (int, char *) const

virtual std::string	input_longlabel (int) const

void	node_redraw ()

void	print_name (std::ostream &o) const

NodeContext	nodeContext () const

std::string	node_name () const
	Returns the same string as printed by print_name(ostream).

void	invalidateSameHash ()

bool	invalidate ()

bool	invalidate (const Hash &hash)

bool	update (const Box *=nullptr)

void	asapUpdate ()

void	asapUpdate (const Box &box, int direction=0)

void	validate (bool for_real=true)

virtual void	force_validate (bool for_real=true)

void	update_handles () const

bool	valid () const
	Returns true if it has been validated - including if there was an error.

bool	real_valid () const
	Returns true if it has been real-validated - including if there was an error.

bool	inErrorState () const

bool	inInvalidState () const

bool	opened () const

void	open ()

void	unopen ()

bool	running () const

void	running (bool v)

bool	not_closed () const

void	close ()

void	callCloseAfter (double seconds)

void	copyState (Op *input)

bool	cached () const

void	cached (bool b)

void	setRecycling (bool recycling)

bool	recycling () const

virtual bool	inUse () const

virtual Executable *	executable ()

void	setKnobsToContext (const OutputContext &, bool force=false)

void	gotoContext (const OutputContext &, bool update)

void	progressFraction (double fraction, StatusFlags flags=StatusNone)

void	progressFraction (int a, int b, StatusFlags flags=StatusNone)

void	progressMessage (const char *fmt,...)

void	progressModalMessage (const char *fmt,...)

void	progressDismiss ()

int	slowness () const

void	slowness (int newval)

virtual bool	firstEngineRendersWholeRequest () const

virtual bool	updateUI (const OutputContext &context)

const Format &	input_format () const

const OutputContext &	uiContext () const

void	error (const char *fmt,...)

void	warning (const char *fmt,...)

void	critical (const char *fmt,...)

void	debug (const char *fmt,...)

void	abort () const
	Abort all trees the op is in.

bool	aborted () const
	True if one of the trees the op is in was aborted; ops should check this while processing and return quickly when true.

void	cancel () const
	Cancel all trees the op is in. Make sure you also call abort() to stop processing.

bool	cancelled () const
	True if one of the trees the op is in was cancelled (by user interaction)

bool	addToTree (OpTree *lpTree)
	Returns true if the op was added to the tree, or false if its reference count increased.

bool	removeFromTree (OpTree *lpTree)
	Returns false if the op was removed from the tree, or true if its reference count decreased.

bool	isInTree (OpTree *lpTree) const
	Checks if an op is in a particular tree, for debugging purposes.

bool	isInAnyTree () const
	Checks if an op is in any tree at all.

OpTreeHandler *	getTreeHandler () const
	Returns the treeHandler for a given Op.

bool	hasError () const

bool	opOrChildHasError () const

const Op *	getErroredOp () const

void	setPopUpScheme (PopUpScheme lScheme)

PopUpScheme	getPopUpScheme () const

bool	arePopUpsEnabled ()
	Returns whether a pop-up should be enabled for the next message, modifying internal data when necessary.

OpMessageHandler &	getMsgHandler ()

const OpMessageHandler &	getMsgHandler () const

std::string	getDebugInfo () const
	Returns a string of debug information about the op. For internal use.

std::string	getDetailedDebugInfo () const

bool	tryValidate (bool for_real=true)

virtual Iop *	iop ()
	Cast to an Iop. This is much cheaper and safer than using dynamic_cast.

virtual const Iop *	iop () const

virtual ParticleOp *	particleOp ()
	Cast to a ParticleOp. This is much cheaper and safer than using dynamic_cast.

virtual const ParticleOp *	particleOp () const

virtual DeepOnlyOp *	deepOnlyOp ()
	Cast to a DeepOnlyOp. This is much cheaper and safer than using dynamic_cast.

virtual const DeepOnlyOp *	deepOnlyOp () const

virtual AxisOp *	axisOp ()
	Cast to an AxisOp. This is much cheaper and safer than using dynamic_cast.

virtual const AxisOp *	axisOp () const

virtual AxisSceneOp *	axisSceneOp ()
	Cast to an AxisSceneOp. This is much cheaper and safer than using dynamic_cast.

virtual const AxisSceneOp *	axisSceneOp () const

virtual CameraOp *	cameraOp ()
	Cast to an CameraOp. This is much cheaper and safer than using dynamic_cast.

virtual const CameraOp *	cameraOp () const

virtual CameraSceneOp *	cameraSceneOp ()
	Cast to an AxisSceneOp. This is much cheaper and safer than using dynamic_cast.

virtual const CameraSceneOp *	cameraSceneOp () const

virtual LightOp *	lightOp ()
	Cast to an LightOp. This is much cheaper and safer than using dynamic_cast.

virtual const LightOp *	lightOp () const

virtual LightSceneOp *	lightSceneOp ()
	Cast to an LightSceneOp. This is much cheaper and safer than using dynamic_cast.

virtual const LightSceneOp *	lightSceneOp () const

virtual SceneOpI *	sceneOpI ()
	Cast to a SceneOpI, if Op has that interface.

virtual const SceneOpI *	sceneOpI () const

virtual GeometryProviderI *	geometryProvider ()
	Cast to a GeometryProviderI, if Op has that interface.

virtual const GeometryProviderI *	geometryProvider () const

virtual GeoOp *	geoOp ()
	Cast to a GeoOp. This is much cheaper and safer than using dynamic_cast.

virtual const GeoOp *	geoOp () const

virtual GeomOp *	geomOp ()
	Cast to a GeomOp. This is much cheaper and safer than using dynamic_cast.

virtual const GeomOp *	geomOp () const

virtual std::string	getLibraryName () const
	Return a label and version string to display library version info for the Node.

virtual VersionInfo	getLibraryVersion () const

virtual OpHints	opHints () const
	Return hints to control when and how this op will be evaluated by the top-down system.

virtual bool	resolveKnobAsset (Knob *knob, const std::string &assetPath, std::string &resolvedAssetPath)

virtual bool	updateKnobsFromAsset (Knob *knob)

virtual void	_updateKnobsFromAsset (Knob *assetKnob, const ndk::asset::AssetData &assetData)

virtual const char *	Class () const =0

const std::string	libraryDisplayName () const

virtual const char *	displayName () const

virtual std::string	docsPath () const

virtual bool	onAction (const ViewerContext c, const DD::Image::Flags f, void d)

Op *	get (const Description *description)

Public Member Functions inherited from DD::Image::LookAt
	LookAt (int defaultLookAxis=kAxisZPlus)

virtual Op *	lookat_input () const =0
	The lookat input op.

void	knobs (Knob_Callback f)
	Adds the 'Look' tab and knobs for all the look at options.

int	knobChanged (Op parent, Knob k)
	disables the look at input is not present

void	lookAt (Matrix4 &matrix)
	performs the look at on the incoming matrix

void	lookMatrixAt (const OutputContext &oc, Matrix4 &concatMatrix)
	performs the look at on the incoming matrix for a given context

Static Public Member Functions
static CameraOp *	default_camera ()

static void	ToFormat (fdk::Mat4f &, const Format *)

static void	FromFormat (fdk::Mat4f &, const Format *)

Static Public Member Functions inherited from DD::Image::AxisOp
static ndk::XformComponents	GetTransformComponentsAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the transform components of axisOp at a specific OutputContext.

static fdk::Mat4d	GetInputParentTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the input parent transform of axisOp at a specific OutputContext.

static fdk::Mat4d	GetLocalParentAxisTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the local parent axis transform of axisOp at a specific OutputContext.

static fdk::Mat4d	GetLocalAxisTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the local axis transform of axisOp at a specific OutputContext.

static fdk::Mat4d	GetWorldTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the world transform of axisOp at a specific OutputContext.

Static Public Member Functions inherited from DD::Image::Op
static int	treeVersion ()

static bool	nukeBusy ()
	is nuke processing something on a parallel thread?

static Op *	create (Node node, const char name, Op *p_op)

static Op *	create (const char name, Op p_op)

static void	resetTimers ()
	reset all the performance timers

static void	setTimingEnabled (bool enabled)
	turn performance timing on or off

static bool	isTimingEnabled ()
	return whether performance timing is on or not

static const char *	script_result (bool py=false)

static void	script_unlock ()

static Op *	BuildOpAt (Op *baseOp, const OutputContext &context, GenerateType type=EXECUTABLE_SKIP)

static Op *	retrieveOp (const char node_path, GenerateType generate_op_type, const OutputContext generate_op_context=nullptr)

static Op *	retrieveOp (const char *node_path, const Hash &op_hash, int tree_version)

static void	all_forget_request ()

static void	new_request_pass ()

static double	callPendingClose (double seconds)

static void	clearPendingClose ()

static Op *	error_op ()

static const char *	error_message ()

static void	clearAbortAndError ()
	To be removed.

static void	SetDefaultPopUpEnable (bool lEnable)
	This is used by Nuke to indicate when ops using the default pop-up scheme should show pop-ups. Not recommended for customisation.

static std::string	getVersionInfoStr (const VersionInfo &versionInfo)
	Helper function to convert a VersionInfo tuple into a string.

static const Description *	find_description (const char name, const Op op_)

static int	message_f (char t, const char *,...)

static int	message_vf (char t, const char *, va_list)

static void	add_timeout (float t, TimeoutHandler, void *v=nullptr)

static void	repeat_timeout (float t, TimeoutHandler, void *=nullptr)

static bool	has_timeout (TimeoutHandler, void *=nullptr)

static void	remove_timeout (TimeoutHandler, void *=nullptr)

Static Public Attributes
static const char *	projection_modes []

static const char *	projection_modes_renderer []

Static Public Attributes inherited from DD::Image::Op
static unsigned	current_request_pass

static void(*	node_redraw_cb )(const Op *)

static void(*	print_name_cb )(std::ostream &, const Op *)

static void(*	status_callback )(const Op , float, float, const char , StatusFlags)

static const int	kInvalidVersion

static const VersionInfo	kUnsetVersion

Protected Member Functions
	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_length_ has been deprecated, use _params.optics.focalLength instead.") double focal_length_
	Deprecated, use _params.optics.focalLength instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("haperture_ has been deprecated, use _params.sensor.apertureSize.x instead.") double haperture_
	Deprecated, use _params.sensor.apertureSize.x instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("vaperture_ has been deprecated, use _params.sensor.apertureSize.y instead.") double vaperture_
	Deprecated, use _params.sensor.apertureSize.y instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("fstop_ has been deprecated, use _params.lensAperture.fStop instead.") double fstop_
	Deprecated, use _params.lensAperture.fStop instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("near_ has been deprecated, use _params.lensAperture.clipNearDistance instead.") double near_
	Deprecated, use _params.lensAperture.clipNearDistance instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("far_ has been deprecated, use _params.lensAperture.clipFarDistance instead.") double far_
	Deprecated, use _params.lensAperture.clipFarDistance instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_mode_ has been deprecated, use projectionMode() instead.") int projection_mode_
	Deprecated, use MultiProjectionCamera::projectionMode() instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_point_ has been deprecated, use _params.optics.focusDistance instead.") double focal_point_
	Deprecated, use _params.optics.focusDistance instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("win_translate_ has been deprecated, use _params.sensor.apertureTranslate instead.") Vector2 win_translate_
	Deprecated, use _params.sensor.apertureTranslate instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("win_scale_ has been deprecated, use _params.sensor.apertureScale instead.") Vector2 win_scale_
	Deprecated, use _params.sensor.apertureScale instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("win_roll_ has been deprecated, use _params.sensor.apertureRotate instead.") double win_roll_
	Deprecated, use _params.sensor.apertureRotate instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_a_, use _params.optics.opticalDistortionA instead.") double lens_distort_a_
	Deprecated, use, use _params.optics.opticalDistortionA instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_b_, use _params.optics.opticalDistortionB instead.") double lens_distort_b_
	Deprecated, use, use _params.optics.opticalDistortionB instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_c_, use _params.optics.opticalDistortionC instead.") double lens_distort_c_
	Deprecated, use, use _params.optics.opticalDistortionC instead.

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_D_ has been deprecated") double lens_distort_D_
	Deprecated.

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distortion_ has been deprecated") double lens_distortion_
	Deprecated.

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_power_ has been deprecated") double lens_power_
	Deprecated.

	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_enabled_ has been deprecated") bool lens_distort_enabled_

	mFnDeprecatedLegacy3DSystemInNuke14 ("use_vertical_lock_ has been deprecated") bool use_vertical_lock_
	Deprecated.

	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_ has been deprecated, use Mat4d _projectionMatrix instead.") Matrix4 projection_
	Camera's projection matrix - deprecated.

void	_validateCamera () override

bool	_setProjectionFuncPlugin (const char *projectionClassName)
	Sets _newProjectionPlugin. _projectionPlugin gets updated in _validate().

Protected Member Functions inherited from DD::Image::AxisOp
	mFnDeprecatedLegacy3DSystemInNuke14 ("axis_knob has been deprecated") Axis_KnobI *axis_knob

virtual ndk::XformComponents	_getTransformComponentsAt (const OutputContext &context) const

virtual fdk::Mat4d	_getInputParentTransformAt (const OutputContext &context) const

virtual fdk::Mat4d	_getLocalParentAxisTransformAt (const OutputContext &context) const

virtual fdk::Mat4d	_getLocalAxisTransformAt (const OutputContext &context) const

virtual fdk::Mat4d	_getWorldTransformAt (const OutputContext &context) const

	mFnDeprecatedLegacy3DSystemInNuke14 ("localtransform_ has been deprecated, use Mat4d AxisSceneOp::_localAxisMatrix instead.") Matrix4 localtransform_
	Local 'axis' matrix that Axis_Knob fills in - deprecated.

	mFnDeprecatedLegacy3DSystemInNuke14 ("local_ has been deprecated, use Mat4d _xformParams.local instead.") Matrix4 local_
	Local matrix after look at performed - deprecated.

	mFnDeprecatedLegacy3DSystemInNuke14 ("matrix_ has been deprecated, use Mat4d _xformParams.l2w instead.") Matrix4 matrix_
	Object matrix - local&parent - deprecated.

	mFnDeprecatedLegacy3DSystemInNuke14 ("imatrix_ has been deprecated, use Mat4d _xformParams.w2l instead.") Matrix4 imatrix_
	Inverse object matrix - deprecated.

Protected Member Functions inherited from DD::Image::Op
	Op (Node *node)
	The constructor is protected so only subclasses can create the base class.

virtual void	_setInput (int32_t input, const OpGraphLocation &connection, int32_t base, int32_t offset)
	The subclass-specific portion of setInput(). See that method for more info.

virtual void	_knobStorePrep (const OutputContext &opStoreContext)
	The subclass-specific portion of knobStorePrep(). See that method for more info.

virtual void	_knobStorePost (const OutputContext &opStoreContext, Hash &newOpHash, Hash &newOpEditVersionHash)
	The subclass-specific portion of knobStorePost(). See that method for more info.

virtual void	_invalidate ()

virtual void	_validate (bool for_real)

virtual void	_open ()

virtual void	_close ()

Op *	create (Node node, const char name)

Op *	create (const char *name)

HandlesMode	anyInputHandles (ViewerContext *)
	return if any of the inputs (recursively) wish to draw handles

HandlesMode	anyKnobHandles (ViewerContext *)
	return if any of the knobs on this node wish to draw handles

void	build_input_handles (ViewerContext *)

void	build_knob_handles (ViewerContext *)

void	disallowNoTrees ()
	Call this to tell the op that it should always have op trees for normal behaviour (for internal use)

virtual HandlesMode	doAnyHandles (ViewerContext *ctx)

virtual void	_setRecycling (bool recycling)

virtual PrevalidateResult	doPreValidate (ViewerContext ctx=nullptr, PreValidateContext =nullptr)

Protected Member Functions inherited from DD::Image::LookAt
void	perform_lookat (Matrix4 &concatMatrix, const Matrix4 &axisMatrix)

Protected Attributes
int32_t	_projectionSelection
	Projection menu knob index.

ShutterControls	_shutter
	Shutter controls which may be referenced by a renderer.

double	_shutterBias
	Weights the shutter samples towards shutter close with a power function.

bool	_glWorldSizeIcon
	Always draw the camera icon at the 'real' world size (defined by worldToLens factor)

bool	_glSolidFrustum
	Draw the camera frustum as solid.

bool	_glInsideFrustum
	Indicated whether to draw the frustum as an inside or outside box.

double	_worldToMeters
	Is converted to sensor.sceneToCameraFactor.

ProjectionFunc *	_newProjectionPlugin
	New projection plugin selected, non-null if changed.

ProjectionFunc *	_projectionPlugin
	Projection func plugin to use, if applicable.

Protected Attributes inherited from DD::Image::AxisOp
ndk::XformParameters	_xformParams
	Axis xform params.

union {
bool _xformInversionValid
	Is _xformParams.w2l valid?

};

int	display3d_
	GUI display setting - deprecate or translate to new system?

union {
bool selectable_
	GUI selectable checkmark - deprecate or translate to new system?

bool _selectable

};

bool	_editable
	Can the user change the knobs? (i.e. knobs not disabled)

WorldMatrixProvider *	_worldMatrixProvider
	'world_matrix' output knob

Protected Attributes inherited from DD::Image::Op
bool	_haveHash
	whether the _hash actually has been set by a call to invalidate(Hash) ever.

bool	_varyingOutputHash
	whether the hash value will animate over time

Hash	_editVersionHash
	Op's current edit version state, usually the combination of input Op & knob edit version states.

Protected Attributes inherited from DD::Image::LookAt
Matrix4	lookat_matrix_
	Matrix for rotating to look at the look input.

Matrix4	my_local
	For the Axis_Knob to store into.

bool	my_transform_normals

int	my_lookat_axis

bool	my_rotate_x

bool	my_rotate_y

bool	my_rotate_z

bool	my_lookat_use_quat

double	my_lookat_strength

Additional Inherited Members
Public Attributes inherited from DD::Image::AxisOp
Matrix4 &	const

Public Attributes inherited from DD::Image::Op
const MetaData::Bundle *	metaCache

Hash	metaCacheHash

Op *	op

Op int	input

Op int int	offset

Protected Types inherited from DD::Image::LookAt
enum	{ kAxisZPlus , kAxisZMinus , kAxisYPlus , kAxisYMinus , kAxisXPlus , kAxisXMinus }

Static Protected Attributes inherited from DD::Image::LookAt
static const char *const	ms_lookat_axis_choices []

Detailed Description

Op that defines a 3D camera.

Member Function Documentation

◆ cameraOp() [1/2]

const CameraOp * DD::Image::CameraOp::cameraOp ( ) const

inlineoverridevirtual

Cast to a CameraOp. This is much cheaper and safer than using dynamic_cast.

Reimplemented from DD::Image::Op.

Referenced by getCameraOpAt().

◆ cameraOp() [2/2]

CameraOp * DD::Image::CameraOp::cameraOp ( )

inlineoverridevirtual

Reimplemented from DD::Image::Op.

◆ default_camera()

CameraOp * CameraOp::default_camera ( )

static

Return a default camera that can be used when there is no camera attached to your renderer. This camera is at the origin, looking along -Z, with a perspective projection set to a lens ratio (focal-length / film-width) of 1.

Referenced by DD::Image::Render::_validate(), DD::Image::ViewerContext::addCamera(), DD::Image::RenderScene::build_handles(), and DD::Image::RenderScene::render_camera().

◆ opHints()

OpHints CameraOp::opHints ( ) const

overridevirtual

Return hints to control when and how this op will be evaluated by the top-down system.

Reimplemented from DD::Image::Op.

References DD::Image::eChainable.

◆ node_color()

unsigned DD::Image::CameraOp::node_color ( ) const

inlineoverridevirtual

Reimplemented from DD::Image::AxisOp.

Reimplemented in DD::Image::LightOp.

◆ _validate()

void CameraOp::_validate ( bool for_real )

overridevirtual

Reimplemented from DD::Image::AxisOp.

Reimplemented in DD::Image::ComplexLightOp.

◆ knobs()

void CameraOp::knobs ( Knob_Callback f )

overridevirtual

Default knobs puts the transform controls on the front tab, and the projection, shutter, and lens controls on tab 'Projection'.

Reimplemented from DD::Image::AxisOp.

Reimplemented in DD::Image::CameraSceneOp, DD::Image::LightOp, and DD::Image::LightSceneOp.

References DD::Image::Tab_knob().

◆ knob_changed()

int CameraOp::knob_changed ( Knob * k )

overridevirtual

Reimplemented from DD::Image::AxisOp.

◆ projectionSelectorKnob()

virtual Knob * DD::Image::CameraOp::projectionSelectorKnob ( ) const

inlinevirtual

Return the knob which provides projection selection, if there is one. Base returns null.

Reimplemented in DD::Image::CameraSceneOp.

◆ projectionMode()

ndk::LensProjection CameraOp::projectionMode ( ) const

override

Currently-assigned projection mode enum value. May be one of the pre-defined modes or a custom enum. Note - do not assume this value is within the hardcoded LensProjection set as a subclass may extend or completely replace the enum set!

References _projectionSelection.

◆ setProjection()

bool CameraOp::setProjection ( const char * projectionClassName )

Set the projection mode via a ProjectionFunc class name. If a matching ProjectionFunc plugin exists it will be loaded and an instance created for this camera (retrievable via projectionFunc() after _validate() occurs) and true is returned.

Important note - setting the projection mode via this method does not update _projectionFunc immediately, it is updated during the next _validate() cycle called on this CameraOp. This is to avoid lens shaders from disappearing from renderer visibility until the next Op update cycle.

If any error occurs the default 'Perspective' ProjectionFunc will be used as a fallback and false returned.

References _setProjectionFuncPlugin().

Referenced by setProjectionMode().

◆ setProjectionMode()

void CameraOp::setProjectionMode ( ndk::LensProjection mode )

Same but takes LensProjection enum which is converted to the matching ProjectionFunc class name.

References setProjection().

◆ projectionFuncClassName()

const char * CameraOp::projectionFuncClassName ( Knob * selectorKnob = nullptr ) const

virtual

Return the class name of the selected lens projection which is used to find the matching ProjectionFunc plugin. Note that this class name is NOT the plugin name and will have a prefix and suffix added. See ProjectionFunc for more info. selectorKnob is optional to override the default retrieval of the selector Knob from projectionSelectorKnob(). Default implementation returns an empty string.

Reimplemented in DD::Image::CameraSceneOp.

◆ isBaseProjectionLinear()

bool CameraOp::isBaseProjectionLinear ( ) const

override

Returns true if current camera projection can be described linearly with a 4x4 matrix, based on the camera's current settings. This is usually only true for perspective and orthographic modes if no lens distortion is being done.

A subclass should override this method if it's implementing custom projection calculations in projectionModeMatrix().

Default implementation returns projectionFunc()->isLinear().

Referenced by DD::Image::CameraSceneOp::draw_handle().

◆ projectionModeMatrix()

Mat4d CameraOp::projectionModeMatrix ( ndk::LensProjection mode ) const

virtual

Return a linear camera projection matrix for the projection mode arg using the CameraOp's current lens values (ie its focal_length, horizontal_aperture, etc.)

Only the predefined LensProjection enums are implemented in the base class implementation, but a subclass can override this method to implement custom projection calculations.

This method should be used in conjunction with isBaseLinearProjection() to determine how to use the returned matrix, as not all projection modes can be supported by a linear matrix. For example uv and spherical, plus perspective/ortho projections become non linear if lens distortion is enabled.

In non-linear cases the matrix returned is normally considered the 'base' projection for the camera based on its current lens settings. In other words although the projection mode may be 'perspective' and the matrix returned is a valid perspective projection, if lens distortion is enabled then the final projection is a combination of both the projection matrix and the distortion.

References DD::Image::Op::nodeName().

Referenced by DD::Image::CameraSceneOp::draw_handle().

◆ ToFormat()

void CameraOp::ToFormat	(	fdk::Mat4f &	matrix,
		const Format *	format
	)

static

Multiply the passed matrix by the necessary transformation to put x=-1 at the left edge of the format, +1 at the right, and to center it vertically, and compensate for any pixel aspect. The output z and w are left unchanged.

Most Iops will need to do this using their output format to get the actual transformation from input space to output space. You would do this first, then multiply by the projection*local*parent.

References DD::Image::Format::pixel_aspect(), DD::Image::Box::r(), DD::Image::Box::t(), DD::Image::Box::w(), DD::Image::Box::x(), and DD::Image::Box::y().

◆ FromFormat()

void CameraOp::FromFormat	(	fdk::Mat4f &	matrix,
		const Format *	format
	)

static

Opposite transformation of to_format(). Multiplies the passed matrix by a transformation that scales the input format to go from x = -1 to x = 1 and to center it vertically around y = 0, and to remove any pixel aspect ratio. You multiply by this matrix last.

The 3DCard iop scales further so the image covers a range so that if the camera lens and "taking lens" are equal the image fills the field of view.

References DD::Image::Format::pixel_aspect(), DD::Image::Box::r(), DD::Image::Box::t(), DD::Image::Box::w(), DD::Image::Box::x(), and DD::Image::Box::y().

◆ doAnyHandles()

Op::HandlesMode CameraOp::doAnyHandles ( ViewerContext * ctx )

overridevirtual

Reimplemented from DD::Image::Op.

◆ build_handles()

void CameraOp::build_handles ( ViewerContext * ctx )

overridevirtual

Reimplemented from DD::Image::Op.

◆ draw_handle()

void CameraOp::draw_handle ( ViewerContext * ctx )

overridevirtual

Draws a lovely camera, I think it is a Mitchell.

Reimplemented from DD::Image::Op.

Reimplemented in DD::Image::CameraSceneOp, DD::Image::LightOp, DD::Image::LightSceneOp, and DD::Image::ComplexLightOp.

◆ mFnDeprecatedLegacy3DSystemInNuke14()

enum DD::Image::CameraOp::mFnDeprecatedLegacy3DSystemInNuke14	(	"Enumeration	deprecated,
		use enum class ndk::LensProjection instead."
	)

inline

< Standard perspective projection

< Standard orthographic projection

< Replace screen XY with UV coordinate

< 360x180 world spherically projected around camera

< Renderer uses this option

< Camera user projection

◆ _validateCamera()

void CameraOp::_validateCamera ( )

overrideprotected

Subclass implemention of validateCamera() to perform any custom configuration of the camera, called whenever the function has been changed.

References DD::Image::AxisOp::_xformParams, and DD::Image::Op::outputContext().

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ cameraOp() [1/2]

◆ cameraOp() [2/2]

◆ default_camera()

◆ opHints()

◆ node_color()

◆ _validate()

◆ knobs()

◆ knob_changed()

◆ projectionSelectorKnob()

◆ projectionMode()

◆ setProjection()

◆ setProjectionMode()

◆ projectionFuncClassName()

◆ isBaseProjectionLinear()

◆ projectionModeMatrix()

◆ ToFormat()

◆ FromFormat()

◆ doAnyHandles()

◆ build_handles()

◆ draw_handle()

◆ mFnDeprecatedLegacy3DSystemInNuke14()

◆ _validateCamera()
