DD::Image::CameraSceneOp Class Reference

#include <CameraSceneOp.h>

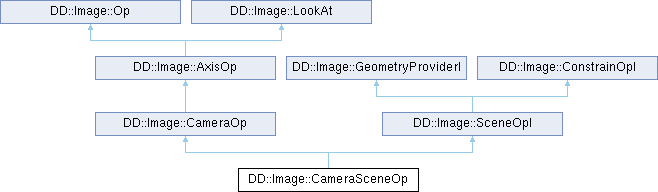

Inheritance diagram for DD::Image::CameraSceneOp:

Public Types
enum	{   PROJECTION , WORLD_TO_METERS , STEREO_ROLE , HAPERTURE ,   VAPERTURE , FOCAL_LENGTH , FOCUS_DISTANCE , FSTOP ,   CLIP_NEAR , CLIP_FAR , WIN_TRANSLATE , WIN_SCALE ,   WIN_ROTATE_Z , SHUTTER_DURATION , SHUTTER_OFFSET_MODE , SHUTTER_OFFSET ,   SHUTTER_BIAS , DISTORT_A , DISTORT_B , DISTORT_C ,   LAST_BASE_CAMERA_PARAM }
Public Types inherited from DD::Image::CameraOp
typedef void()	LensFunc(Scene *, CameraOp *, MatrixArray *transforms, const VArray &v, Vector4 &out, void *data)
typedef void()	LensNFunc(Scene *, CameraOp *, MatrixArray *transforms, VArray *vert_array, int n, void *data)
Public Types inherited from DD::Image::Op
enum	HandlesMode { eNoHandles , eHandlesUncooked , eHandlesCooked , eHandlesMax }
enum	PrevalidateResult { eFinished , eCancelled , eAbandoned }
	This is a tribool return value. Do not extend.
enum	HandleType {   eNone , eMouseLeftClick , eMouseRightClick , eMouseMove ,   eMouseDrag , eMouseRelease , eSelectionChanged , eSelectionChangeFinished ,   eHandleDragTranslate , eHandleDragRotate , eHandleDragScale , eHandleDragPivot ,   eAllHandles }
enum	ViewableModes { eViewableMode2D , eViewableMode3D , eViewableMode3D_2DReference }
enum	GenerateType {   OUTPUT_OP , ANY_CONTEXT , INPUT_OP , INPUT_OP_PEEK ,   EXECUTABLE , EXECUTABLE_SKIP , EXECUTABLE_INPUT , UICONTEXT_ONLY }
enum	NodeContext { eNodeGraph , eTimeline , eOpGraph }
enum	StatusFlags { StatusNone , StatusModal , StatusUseCallback }
enum	PopUpScheme {   ePU_Never , ePU_Done , ePU_Once , ePU_Default ,   ePU_Always }
	Pop-up schemes determine when pop-up messages are displayed for op errors. More...
enum	VersionComponents { eMajor , eMinor , ePoint , eRevision }
	Enum to help get the desired version component from the VersionInfo tuple.
using	InputList = std::vector< Input >
using	InputConnectionContext = std::pair< Input, OutputContext >
	Combination of Op input and the OutputContext it is being referenced at.
using	InputConnectionContextList = std::vector< InputConnectionContext >
using	Output = std::pair< int, DD::Image::Op * >
	Combination of input number and pointer to downstream Op input is on.
using	OutputSet = std::set< Output >
	Set of all outputs from this Op.
typedef std::map< Hash, std::vector< unsigned int > >	ItemSelectionList
typedef bool()	EventCallback(Op *op, EventContext eventCtx)
using	VersionInfo = std::tuple< int, int, int, int >
	Contains version components with each index defined by the VersionComponents enum.
Public Types inherited from DD::Image::SceneOpI
enum	{   TIME , PARENT_T , PARENT_R , PARENT_S ,   XFORM_ORDER , ROT_ORDER , TRANSLATE , ROTATE ,   SCALE , UNIFORM_SCALE , SKEW , PIVOT_T ,   PIVOT_R , LAST_XFORM_PARAM }
	Which component of an AxisVals to provide.
enum	{ PARENT_XFORM , PARENT_SCOPE , PARENT_NONE }
	Parent prim creation modes.

Public Member Functions
	CameraSceneOp (Node *node)
const CameraSceneOp *	cameraSceneOp () const override
	Cast to a CameraSceneOp. This is much cheaper and safer than using dynamic_cast.
CameraSceneOp *	cameraSceneOp () override
int32_t	parentInput () const override
	AxisOp: Return the node input to use for the parent axis source. Defaults to input 0.
int32_t	sceneInput () const override
	SceneOpI: Return the node input to use for the scene source. Defaults to input 1.
int32_t	constrainInput () const override
	SceneOpI: Return the node input to use for the parent axis source. Defaults to input 2.
SceneOpI *	parentInputSceneOp () const override
	SceneOpI: Return the parentInput() input cast to a SceneOpI, if possible.
GeomOp *	sceneInputOp () const override
	SceneOpI: Return the sceneInput() input cast to a GeomOp, if possible.
SceneOpI *	constrainInputSceneOp () const override
	SceneOpI: Return the AxisOp::constrainInput() input cast to a SceneOpI, if possible.
const usg::Token &	primarySchemaType () const override
	SceneOpI: Return the name of the primary USD schema this node is handling.
const char *	primPathFilter () const override
	SceneOpI: Return the default filter string to apply in the prim path knob.
int	minimum_inputs () const override
	Default is 3: axis, scene and constrain.
int	maximum_inputs () const override
	Default is 3: axis, scene and constrain.
int	optional_input () const override
	Optional input index is the scene-importer input. This returns (maximum_inputs()-1).
bool	test_input (int node_input, Op *op) const override
	AxisOp and null works on 0, and GeomOp or null on input 1.
Op *	default_input (int node_input) const override
	Returns null for all inputs. Override this so Op::test_input() doesn't produce warnings.
const char *	input_label (int node_input, char *) const override
void	knobs (Knob_Callback) override
void	_knobStorePrep (const OutputContext &opStoreContext) override
void	_knobStorePost (const OutputContext &opStoreContext, Hash &newOpHash, Hash &newOpEditVersionHash) override
Knob *	projectionSelectorKnob () const override
	Return the knob which provides projection selection.
const char *	projectionFuncClassName (Knob *selectorKnob=nullptr) const override
void	SetShutterKnobAuthoringProvider (Knob_Callback f, ShutterControls &shutter)
void	addExtraFrontPanelKnobs (Knob_Callback f) override
void	addDisplayOptionsKnobs (Knob_Callback f) override
	Adds the frustum visualization controls.
virtual void	addShutterKnobs (Knob_Callback)
	Adds the default shutter controls.
virtual void	addProjectionKnobs (Knob_Callback f)
	Adds the default projection controls.
virtual void	addWindowKnobs (Knob_Callback f)
	Adds the default aperture-window controls.
virtual void	addLensKnobs (Knob_Callback f)
	Adds the default lens controls.
void	_validate (bool for_real) override
int	knob_changed (Knob *) override
const fdk::Mat4d &	localParentAxisTransform () const override
	Local parent axis transform matrix.
void	setLocalParentAxisTransform (const fdk::Mat4d &localParent) override
const fdk::Mat4d &	localAxisTransform () const override
void	setLocalAxisTransform (const fdk::Mat4d &localAxis) override
bool	localParentTransformVaries () const override
bool	localTransformVaries () const override
HandlesMode	doAnyHandles (ViewerContext *ctx) override
void	build_handles (ViewerContext *) override
void	draw_handle (ViewerContext *) override
	Draws a lovely camera, I think it is a Mitchell.
virtual void	drawCameraIcon (bool solid, bool dashed_lines=false)
	Draw the camera's frustum outline solid or wireframe, dashed if 'dashed_lines'=true.
void	drawNodeName (const char *subcam_name="")
	Draw the node name at position 0,0,0 which will be the local center.
void	drawNodeName (const fdk::Vec3d &P, const char *subcam_name="")
	Draw the node name at an xyz position P relative to the local center.
void	drawAperture (const fdk::Vec3d &P, bool dashed_lines=false)
	Draw the aperture rectangle in millimeters, centered on xyz position P.
void	drawSolidFrustum (const fdk::Vec3d &near_corner, const fdk::Vec3d &far_corner)
	Draw the camera's frustum.
void	drawWireFrustum (const fdk::Vec3d &near_corner, const fdk::Vec3d &far_corner, bool dashed_lines=false)
	Draw the camera's frustum outline, dashed if 'dashed_lines'=true.
AxisOp *	getAxisOp () override
	SceneOpI: Return the AxisOp the interface is attached to.
SceneOpI *	sceneOpI () override
	Cast to a SceneOpI.
const SceneOpI *	sceneOpI () const override
Op *	getGeometryProviderOp () override
	GeometryProviderI: Return the Op the interface is attached to.
GeometryProviderI *	geometryProvider () override
	Cast to a GeometryProviderI interface. This is much cheaper and safer than using dynamic_cast.
const GeometryProviderI *	geometryProvider () const override
virtual usg::Path	buildCameraSchemaPrimPath () const
usg::Path	buildBasePrimPath () const override
	SceneOpI: Prepends the parent connection if there is one.
void	getExtractKeyRange (SceneOpNodeI::SharedData &data, fdk::TimeValue &firstKey, fdk::TimeValue &lastKey) override
virtual ndk::Camera::Sample	getCameraDataAt (SceneOpNodeI::SharedData &data, const OutputContext &context) const
	Retrieve the camera data for a single time sample at OutputContext.
virtual bool	isBaseCameraComponent (uint64_t componentId) const
virtual bool	isTypedCameraComponent (uint64_t componentId) const
virtual bool	getCameraComponentAt (const usg::StageRef &stage, const usg::CameraPrim &cameraPrim, const OutputContext &context, uint64_t componentId, double *values, size_t nValues) const
void	addProjectionFuncCustomKnobs (Knob_Callback)
	For internal use only - called in addProjectionKnobs() to add ProjectionFunc dynamic knobs.
Public Member Functions inherited from DD::Image::CameraOp
	CameraOp (Node *node)
const CameraOp *	cameraOp () const override
	Cast to a CameraOp. This is much cheaper and safer than using dynamic_cast.
CameraOp *	cameraOp () override
CameraOp *	getCameraOpAt (const OutputContext &context)
	Retrieve a version of this CameraOp at a specific OutputContext.
OpHints	opHints () const override
	Return hints to control when and how this op will be evaluated by the top-down system.
unsigned	node_color () const override
void	_validate (bool for_real) override
void	knobs (Knob_Callback) override
int	knob_changed (Knob *) override
virtual Knob *	projectionSelectorKnob () const
virtual ProjectionFunc *	projectionPlugin () const
	The currently-assigned projection plugin.
ndk::LensProjection	projectionMode () const override
bool	setProjection (const char *projectionClassName)
void	setProjectionMode (ndk::LensProjection mode)
virtual const char *	projectionFuncClassName (Knob *selectorKnob=nullptr) const
bool	isBaseProjectionLinear () const override
virtual fdk::Mat4d	projectionModeMatrix (ndk::LensProjection mode) const
virtual fdk::Mat4d	projectionModeMatrixAt (ndk::LensProjection mode, const OutputContext &context) const
	Same as projectionMatrix() except it evaluates the matrix at an arbitrary OutputContext.
HandlesMode	doAnyHandles (ViewerContext *ctx) override
void	build_handles (ViewerContext *) override
void	draw_handle (ViewerContext *) override
	Draws a lovely camera, I think it is a Mitchell.
enum	mFnDeprecatedLegacy3DSystemInNuke14 ("Enumeration deprecated, use enum class ndk::LensProjection instead.")
	mFnDeprecatedLegacy3DSystemInNuke14 ("Class() has been deprecated, implement on subclass plugin instead.") const char *Class() const override
	mFnDeprecatedLegacy3DSystemInNuke14 ("node_help() has been deprecated, implement on subclass plugin instead.") const char *node_help() const override
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_knobs() has been deprecated, use CameraSceneOp::addProjectionKnobs() instead.") virtual void projection_knobs(Knob_Callback f)
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_knobs() has been deprecated, use CameraSceneOp::addDistortionKnobs() instead.") virtual void lens_knobs(Knob_Callback f)
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection() has been deprecated, use projectionMatrix() instead") const Matrix4 &projection() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("hfov(double) has been deprecated, use setHorizontalFov() instead") void hfov(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("film_width() has been deprecated, use horizontalAperture() instead") double film_width() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("film_height() has been deprecated, use verticalAperture() instead") double film_height() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_length() has been deprecated, use focalLength() instead") double focal_length() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("Near() has been deprecated, use nearPlaneDistance() instead") double Near() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("Far() has been deprecated, use farPlaneDistance() instead") double Far() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_point() has been deprecated, use focusDistance() instead") double focal_point() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("fstop() has been deprecated, use fStop() instead") double fstop() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("film_width(double) has been deprecated, use setHorizontalAperture() instead") void film_width(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("film_height(double) has been deprecated, use setVerticalAperture() instead") void film_height(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_length(double) has been deprecated, use setFocalLength() instead") void focal_length(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("Near(double) has been deprecated, use setNearPlaneDistance() instead") void Near(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("Far(double) has been deprecated, use setFarPlaneDistance() instead") void Far(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_point(double) has been deprecated, use setFocusDistance() instead") void focal_point(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("fstop(double) has been deprecated, use setfStop() instead") void fstop(double v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("win_translate() has been deprecated, use windowTranslate() instead") const Vector2 &win_translate() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("win_scale() has been deprecated, use windowScale() instead") const Vector2 &win_scale() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("win_roll() has been deprecated, use windowRotateZ() instead") double win_roll() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_mode() has been deprecated, use projectionMode() instead") int projection_mode() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_mode(int) has been deprecated, use setProjectionMode() instead") void projection_mode(int i)
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_is_linear(int) has been deprecated, use isProjectionModeLinear(ndk::LensProjection) instead") virtual bool projection_is_linear(int mode) const
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection(int) has been deprecated, use projectionModeMatrix(ndk::LensProjection) instead") virtual Matrix4 projection(int mode) const
	mFnDeprecatedLegacy3DSystemInNuke14 ("projectionAt(OutputContext) has been deprecated, use projectionModeMatrixAt(ndk::LensProjection, OutputContext) instead") virtual Matrix4 projectionAt(const OutputContext &)
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_a() has been deprecated, use distortA() instead") double lens_distort_a() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_b() has been deprecated, use distortB() instead") double lens_distort_b() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_c() has been deprecated, use distortC() instead") double lens_distort_c() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_D() has been deprecated") double lens_distort_D() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distortion() has been deprecated") double lens_distortion() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_power() has been deprecated") double lens_power() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_enabled() has been deprecated") bool lens_distort_enabled() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_function(int mode) has been deprecated.") virtual LensFunc *lens_function(int mode) const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lensNfunction(int mode) has been deprecated.") virtual LensNFunc *lensNfunction(int mode) const
	mFnDeprecatedLegacy3DSystemInNuke14 ("to_format has been deprecated, use ToFormat instead.") static void to_format(Matrix4 &
const Format *	mFnDeprecatedLegacy3DSystemInNuke14 ("from_format has been deprecated, use FromFormat instead.") static void from_format(Matrix4 &
const Format const Format *	mFnDeprecatedLegacy3DSystemInNuke14 ("toTormat has been deprecated, use ToFormat instead.") static void toFormat(fdk
	mFnDeprecatedLegacy3DSystemInNuke14 ("fromFormat has been deprecated, use FromFormat instead.") static void fromFormat(fdk
Public Member Functions inherited from DD::Image::AxisOp
	AxisOp (Node *node, int defaultLookAtAxis=LookAt::kAxisZPlus)
const AxisOp *	axisOp () const override
	Cast this Op to an AxisOp. This is much cheaper and safer than using dynamic_cast.
AxisOp *	axisOp () override
AxisOp *	getAxisOpAt (const OutputContext &context)
	Retrieve a version of this AxisOp at a specific OutputContext.
bool	can_link () const override
const char *	node_shape () const override
	Draw node as a circular shape.
unsigned	node_color () const override
virtual AxisOp *	parentInputOp () const
	Convenience that casts parent input 0 to an AxisOp.
virtual int32_t	parentInput () const
virtual AxisOp *	constrainInputOp () const
	Return the constrainInput() input cast to an AxisOp, if possible.
virtual int32_t	constrainInput () const
int	minimum_inputs () const override
	Default is 2: axis and scene(optional)
int	maximum_inputs () const override
	Default is 3: axis, constraint and scene.
int	optional_input () const override
	Optional input index.
bool	test_input (int node_input, Op *op) const override
	AxisOp and null works on 0, GeomOp or null on input 1 and AxisOp or null on input 2.
Op *	default_input (int node_input) const override
	Returns null for all inputs. Override this so Op::test_input() doesn't produce warnings.
const char *	input_label (int node_input, char *) const override
	mFnDeprecatedLegacy3DSystemInNuke14 ("isLegacyAxisOp() has been deprecated, port AxisOp sublass to AxisSceneOp.") bool isLegacyAxisOp() const
void	knobs (Knob_Callback f) override
int	knob_changed (Knob *k) override
void	_validate (bool for_real) override
virtual bool	localParentTransformVaries () const
virtual bool	localTransformVaries () const
virtual const ndk::XformComponents &	transformComponents () const
virtual const fdk::Mat4d &	inputParentTransform () const
virtual void	setInputParentTransform (const fdk::Mat4d &)
virtual const fdk::Mat4d &	localParentAxisTransform () const
virtual void	setLocalParentAxisTransform (const fdk::Mat4d &)
virtual const fdk::Mat4d &	localAxisTransform () const
virtual void	setLocalAxisTransform (const fdk::Mat4d &)
const fdk::Mat4d &	parentTransform () const
void	setParentTransform (const fdk::Mat4d &)
const fdk::Mat4d &	localTransform () const
void	setLocalTransform (const fdk::Mat4d &)
const fdk::Mat4d &	worldTransform () const
const fdk::Mat4d &	invWorldTransform ()
void	setWorldTransform (const fdk::Mat4d &)
int	display3d () const
int	display3d ()
void	setDisplay3d (int mode)
	mFnDeprecatedLegacy3DSystemInNuke14 ("isLegacyAxisOp() has been deprecated, port AxisOp sublass to AxisSceneOp.") virtual bool _isLegacyAxisOp() const
mFnDeprecatedLegacy3DSystemInNuke14("worldTransformAt() deprecated on AxisOp, use the static AxisOp::GetWorldTransformAt(AxisOp) " "method instead. If implementing an override of this method implement _getWorldTransformAt().") virtual fdk	mFnDeprecatedLegacy3DSystemInNuke14 ("getAxis() deprecated on AxisOp, now implemented on AxisSceneOp::getLocalAxisKnob().") Axis_KnobI *getAxis()
	mFnDeprecatedLegacy3DSystemInNuke14 ("enableAxisKnobs() deprecated on AxisOp, now implemented on AxisSceneOp.") void enableAxisKnobs(bool on)
mFnDeprecatedLegacy3DSystemInNuke14("enableKnobs() deprecated on AxisOp, now implemented on AxisSceneOp.") void enableKnobs(const std	mFnDeprecatedLegacy3DSystemInNuke14 ("doAnyHandle() deprecated on AxisOp, implement on AxisSceneOp instead.") HandlesMode doAnyHandles(ViewerContext *) override
	mFnDeprecatedLegacy3DSystemInNuke14 ("draw_handle() deprecated on AxisOp, implement on AxisSceneOp instead.") void build_handles(ViewerContext *) override
	mFnDeprecatedLegacy3DSystemInNuke14 ("draw_handle() deprecated on AxisOp, implement on AxisSceneOp instead.") void draw_handle(ViewerContext *) override
bool	selectable () const
void	setSelectable (bool v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("editable() deprecated on AxisOp, implement on AxisSceneOp instead.") bool editable() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("setEditable() deprecated on AxisOp, implement on AxisSceneOp instead.") void setEditable(bool v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("Class() has been deprecated, implement on subclass plugin instead.") const char *Class() const override
	mFnDeprecatedLegacy3DSystemInNuke14 ("node_help() has been deprecated, implement on subclass plugin instead.") const char *node_help() const override
	mFnDeprecatedLegacy3DSystemInNuke14 ("selectable(bool mode) has been deprecated, use AxisSceneOp::setSelectable() instead.") void selectable(bool v)
	mFnDeprecatedLegacy3DSystemInNuke14 ("display3d(int mode) has been deprecated, use setDisplay3d() instead.") void display3d(int mode)
	mFnDeprecatedLegacy3DSystemInNuke14 ("input0() has been deprecated, use parentInput() instead.") AxisOp *input0() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lookAtEnabled() has been deprecated") virtual bool lookAtEnabled() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("lookat_input() has been deprecated") Op *lookat_input() const override
	mFnDeprecatedLegacy3DSystemInNuke14 ("matrix(const Matrix4&) has been deprecated, use setWorldTransform() instead.") void matrix(const Matrix4 &)
	mFnDeprecatedLegacy3DSystemInNuke14 ("local() has been deprecated, use localTransform() instead.") const Matrix4 &local() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("matrix() has been deprecated, use worldTransform() instead.") const Matrix4 &matrix() const
	mFnDeprecatedLegacy3DSystemInNuke14 ("imatrix() has been deprecated, use invWorldTransform() instead.") const Matrix4 &imatrix()
	mFnDeprecatedLegacy3DSystemInNuke14 ("matrixAt() has been deprecated, use worldTransformAt() instead.") virtual void matrixAt(const OutputContext &
Public Member Functions inherited from DD::Image::Op
PrevalidateResult	preValidate (ViewerContext *ctx=nullptr, PreValidateContext *=nullptr)
Op *	rootOp () const
bool	preValidateAborted (int treeStartingVersion, PrevalidateResult &result) const
const OutputSet &	getOutputs () const
	return all the outputs of this node
virtual void	setInputsValid (bool nowValid)
	set whether the input ops are valid (are for the right context)
bool	inputsValid () const
	return whether the input ops are valid (are for the right context)
virtual bool	can_clone () const
	returns whether or not an op can be cloned in the dag
virtual bool	can_link () const
	returns whether or not an op can be linked in the dag
const Hash &	hash () const
bool	haveHash () const
	return true if the hash() value is meaningful and globally unique
bool	varyingOutputHash () const
void	setVaryingOutputHash (bool varyingHashes)
	Set the varyingOutputHash indicator to a specific state.
void	enableVaryingOutputHash ()
	Enable the varyingOutputHash indicator.
virtual Hash	editVersionHash () const
virtual void	setEditVersionHash (const Hash &h)
virtual std::vector< DD::Image::OutputContext >	getPrevVersionsWanted () const
virtual const MetaData::Bundle &	_fetchMetaData (const char *keyname)
const MetaData::Bundle &	fetchMetaData (const char *keyname)
Node *	node () const
DD::Image::NodeI *	getNode () const
void	node (Node *v)
virtual const char *	nodeClass () const
virtual const char *	nodeName () const
virtual std::string	nodeFullPath (char separator='.') const
Hash	nodeTopologyHash () const
Hash	nodeEditVersionHash () const
Op *	firstOp () const
void	firstOp (Op *v)
Op *	parent () const
void	parent (Op *lpOp)
virtual void	detach ()
	node has been deleted in DAG
virtual void	attach ()
	node has been created in DAG
virtual void	pre_write_knobs ()
void	knobStorePrep (const OutputContext &opStoreContext)
virtual void	knobs (Knob_Callback)
void	knobStorePost (const OutputContext &opStoreContext, Hash &newOpHash, Hash &newOpEditVersionHash)
int	replace_knobs (Knob *afterthis, int n, void(*f)(void *, Knob_Callback), void *, const char *fileExt=nullptr)
int	add_knobs (void(*f)(void *, Knob_Callback), void *, Knob_Callback)
void	set_unlicensed ()
Knob *	knob (const char *name) const
Knob *	knob (int) const
bool	pushed () const
bool	panel_visible () const
bool	node_disabled () const
bool	node_selected () const
unsigned	node_gl_color () const
void *	field (const char *name)
void *	field (const char *name, int &type)
void *	set_field (const char *name, const void *source, int size)
void *	get_field (const char *name, void *dest, int size)
void	beginHandle (HandleType command, ViewerContext *ctx, EventCallback *cb, int index, float x=0, float y=0, float z=0, ViewerContext::Cursor cursor=ViewerContext::kNoCursor)
void	endHandle (ViewerContext *ctx)
virtual int	knob_changed (Knob *)
virtual int	knob_change_finished (Knob *knob, bool changedByUser=true)
void	addTime (OpTimer::Category category, long long microsecondsCPU, long long microsecondsWall, bool isTopLevel=true)
void	getPerformanceInfo (OpTimer::Category category, OpTimer::PerformanceInfo &info) const
	return the amount of CPU time taken by this op
virtual bool	inputs_clockwise () const
	whether unconnected inputs on the DAG should be arranged clockwise or anticlockwise (default)
virtual std::vector< int >	input_order () const
virtual int	inputArrows (int nodeInputs) const
bool	script_command (const char *command, bool py=true, bool eval=true) const
bool	script_expand (const char *str) const
HandlesMode	anyHandles (ViewerContext *ctx)
virtual void	build_handles (ViewerContext *)
void	add_draw_handle (ViewerContext *)
virtual void	draw_handle (ViewerContext *)
virtual void	add_input_handle (int input, ViewerContext *)
void	add_op_handle (ViewerContext *ctx)
void	add_knob_handle (Knob *, ViewerContext *)
virtual int	getViewableModes () const
virtual int	optional_input () const
virtual int	minimum_inputs () const
virtual int	maximum_inputs () const
virtual bool	test_input (int, Op *) const
int	inputs () const
int	node_inputs () const
OpGraphLocation	nodeInputConnection (int32_t nodeInput, GenerateType type=OUTPUT_OP) const
OpGraphLocation	nodeInputConnection (int32_t nodeInput, GenerateType type, const OutputContext *context) const
Op *	node_input (int, GenerateType=OUTPUT_OP) const
Op *	node_input (int, GenerateType, const OutputContext *context) const
Op *	input_op (int n=0) const
virtual void	inputs (int n)
Op *	input (int) const
Op *	inputAt (int input, const OutputContext &context, GenerateType type=EXECUTABLE_INPUT) const
int	inputNumber (int input, int offset) const
Op *	input (int input, int offset) const
Op *	input0 () const
	return the primary input
Op *	input1 () const
	return the second input, if it exists
const Input &	inputConnection (int32_t input) const
const Input &	inputConnection (int32_t base, int32_t offset) const
	mFnDeprecatedInNuke17 ("getInputs() has been deprecated, use getInputOps() instead") const OpList &getInputs() const
OpList	getInputOps () const
const InputList &	getInputConnections () const
const OpList &	getChildren () const
	mFnDeprecatedInNuke17 ("set_input(int, Op*, int, int) has been deprecated, use setInput(int, Input) and implement _setInput() instead") virtual void set_input(int i
void	set_input0 (Op *op)
void	set_input (int i, Op *op)
void	set_input (int i, Op &op)
void	set_input (int input, int offset, Op *op)
	Same as setInput(inputNumber(n, offset), op, n, offset);.
void	setInput (int32_t input, const OpGraphLocation &connection)
	Same as setInput(input, connection, input, 0).
void	setInput (int32_t input, const OpGraphLocation &connection, int32_t base, int32_t offset)
const OutputContext &	outputContext () const
virtual void	setOutputContext (const OutputContext &c)
virtual void	append (Hash &)
virtual float	uses_input (int) const
virtual void	build_splits ()
virtual int	split_input (int) const
virtual const OutputContext &	inputContext (int n, int offset, OutputContext &) const
virtual const OutputContext *	inputUIContext (int n, OutputContext &) const
virtual Op *	default_input (int) const
virtual bool	frameTransformImplemented () const
virtual bool	frameTransformDownstream (const OutputContext &context, unsigned int input, float inFrame, float &outFrame) const
virtual bool	frameTransformUpstream (const OutputContext &context, unsigned int input, float outFrame, float &inFrame) const
virtual DopeItemFlags::Mask	getDopeItemFlags () const
virtual bool	shouldHideInDopeSheet (Knob *knob) const
virtual DD::Image::Knob *	getDopeItemKnob () const
virtual ViewSet	viewsProduced () const
virtual ViewSet	viewsWantOn (int i) const
virtual ViewSet	splitForViews () const
bool	requested () const
void	setRequested ()
void	forgetRequestShallow ()
void	forget_request ()
void	forget_request (OpSet &forgotten)
virtual const char *	node_shape () const
DD::Image::Hash	curveHash () const
bool	opCurrent () const
virtual unsigned	node_color () const
virtual const char *	node_help () const =0
virtual const char *	input_label (int, char *) const
virtual std::string	input_longlabel (int) const
void	node_redraw ()
void	print_name (std::ostream &o) const
NodeContext	nodeContext () const
std::string	node_name () const
	Returns the same string as printed by print_name(ostream).
void	invalidateSameHash ()
bool	invalidate ()
bool	invalidate (const Hash &hash)
bool	update (const Box *=nullptr)
void	asapUpdate ()
void	asapUpdate (const Box &box, int direction=0)
void	validate (bool for_real=true)
virtual void	force_validate (bool for_real=true)
void	update_handles () const
bool	valid () const
	Returns true if it has been validated - including if there was an error.
bool	real_valid () const
	Returns true if it has been real-validated - including if there was an error.
bool	inErrorState () const
bool	inInvalidState () const
bool	opened () const
void	open ()
void	unopen ()
bool	running () const
void	running (bool v)
bool	not_closed () const
void	close ()
void	callCloseAfter (double seconds)
void	copyState (Op *input)
bool	cached () const
void	cached (bool b)
void	setRecycling (bool recycling)
bool	recycling () const
virtual bool	inUse () const
virtual Executable *	executable ()
void	setKnobsToContext (const OutputContext &, bool force=false)
void	gotoContext (const OutputContext &, bool update)
void	progressFraction (double fraction, StatusFlags flags=StatusNone)
void	progressFraction (int a, int b, StatusFlags flags=StatusNone)
void	progressMessage (const char *fmt,...)
void	progressModalMessage (const char *fmt,...)
void	progressDismiss ()
int	slowness () const
void	slowness (int newval)
virtual bool	firstEngineRendersWholeRequest () const
virtual bool	updateUI (const OutputContext &context)
const Format &	input_format () const
const OutputContext &	uiContext () const
void	error (const char *fmt,...)
void	warning (const char *fmt,...)
void	critical (const char *fmt,...)
void	debug (const char *fmt,...)
void	abort () const
	Abort all trees the op is in.
bool	aborted () const
	True if one of the trees the op is in was aborted; ops should check this while processing and return quickly when true.
void	cancel () const
	Cancel all trees the op is in. Make sure you also call abort() to stop processing.
bool	cancelled () const
	True if one of the trees the op is in was cancelled (by user interaction)
bool	addToTree (OpTree *lpTree)
	Returns true if the op was added to the tree, or false if its reference count increased.
bool	removeFromTree (OpTree *lpTree)
	Returns false if the op was removed from the tree, or true if its reference count decreased.
bool	isInTree (OpTree *lpTree) const
	Checks if an op is in a particular tree, for debugging purposes.
bool	isInAnyTree () const
	Checks if an op is in any tree at all.
OpTreeHandler *	getTreeHandler () const
	Returns the treeHandler for a given Op.
bool	hasError () const
bool	opOrChildHasError () const
const Op *	getErroredOp () const
void	setPopUpScheme (PopUpScheme lScheme)
PopUpScheme	getPopUpScheme () const
bool	arePopUpsEnabled ()
	Returns whether a pop-up should be enabled for the next message, modifying internal data when necessary.
OpMessageHandler &	getMsgHandler ()
const OpMessageHandler &	getMsgHandler () const
std::string	getDebugInfo () const
	Returns a string of debug information about the op. For internal use.
std::string	getDetailedDebugInfo () const
bool	tryValidate (bool for_real=true)
virtual Iop *	iop ()
	Cast to an Iop. This is much cheaper and safer than using dynamic_cast.
virtual const Iop *	iop () const
virtual ParticleOp *	particleOp ()
	Cast to a ParticleOp. This is much cheaper and safer than using dynamic_cast.
virtual const ParticleOp *	particleOp () const
virtual DeepOnlyOp *	deepOnlyOp ()
	Cast to a DeepOnlyOp. This is much cheaper and safer than using dynamic_cast.
virtual const DeepOnlyOp *	deepOnlyOp () const
virtual AxisOp *	axisOp ()
	Cast to an AxisOp. This is much cheaper and safer than using dynamic_cast.
virtual const AxisOp *	axisOp () const
virtual AxisSceneOp *	axisSceneOp ()
	Cast to an AxisSceneOp. This is much cheaper and safer than using dynamic_cast.
virtual const AxisSceneOp *	axisSceneOp () const
virtual CameraOp *	cameraOp ()
	Cast to an CameraOp. This is much cheaper and safer than using dynamic_cast.
virtual const CameraOp *	cameraOp () const
virtual CameraSceneOp *	cameraSceneOp ()
	Cast to an AxisSceneOp. This is much cheaper and safer than using dynamic_cast.
virtual const CameraSceneOp *	cameraSceneOp () const
virtual LightOp *	lightOp ()
	Cast to an LightOp. This is much cheaper and safer than using dynamic_cast.
virtual const LightOp *	lightOp () const
virtual LightSceneOp *	lightSceneOp ()
	Cast to an LightSceneOp. This is much cheaper and safer than using dynamic_cast.
virtual const LightSceneOp *	lightSceneOp () const
virtual SceneOpI *	sceneOpI ()
	Cast to a SceneOpI, if Op has that interface.
virtual const SceneOpI *	sceneOpI () const
virtual GeometryProviderI *	geometryProvider ()
	Cast to a GeometryProviderI, if Op has that interface.
virtual const GeometryProviderI *	geometryProvider () const
virtual GeoOp *	geoOp ()
	Cast to a GeoOp. This is much cheaper and safer than using dynamic_cast.
virtual const GeoOp *	geoOp () const
virtual GeomOp *	geomOp ()
	Cast to a GeomOp. This is much cheaper and safer than using dynamic_cast.
virtual const GeomOp *	geomOp () const
virtual std::string	getLibraryName () const
	Return a label and version string to display library version info for the Node.
virtual VersionInfo	getLibraryVersion () const
virtual OpHints	opHints () const
	Return hints to control when and how this op will be evaluated by the top-down system.
virtual bool	resolveKnobAsset (Knob *knob, const std::string &assetPath, std::string &resolvedAssetPath)
virtual bool	updateKnobsFromAsset (Knob *knob)
virtual void	_updateKnobsFromAsset (Knob *assetKnob, const ndk::asset::AssetData &assetData)
virtual const char *	Class () const =0
const std::string	libraryDisplayName () const
virtual const char *	displayName () const
virtual std::string	docsPath () const
virtual bool	onAction (const ViewerContext *c, const DD::Image::Flags f, void *d)
Op *	get (const Description *description)
Public Member Functions inherited from DD::Image::LookAt
	LookAt (int defaultLookAxis=kAxisZPlus)
virtual Op *	lookat_input () const =0
	The lookat input op.
void	knobs (Knob_Callback f)
	Adds the 'Look' tab and knobs for all the look at options.
int	knobChanged (Op *parent, Knob *k)
	disables the look at input is not present
void	lookAt (Matrix4 &matrix)
	performs the look at on the incoming matrix
void	lookMatrixAt (const OutputContext &oc, Matrix4 &concatMatrix)
	performs the look at on the incoming matrix for a given context
Public Member Functions inherited from DD::Image::SceneOpI
	SceneOpI (fdk::AxisDirection defaultOrientAxis=fdk::AxisDirection::Z_PLUS)
virtual AxisOp *	getAxisOp ()=0
AxisSceneOp *	asAxisSceneOp ()
	Convenience to cast this interface's Op to an AxisSceneOp.
CameraSceneOp *	asCameraSceneOp ()
	Convenience to cast this interface's Op to a CameraSceneOp.
LightSceneOp *	asLightSceneOp ()
	Convenience to cast this interface's Op to a LightSceneOp.
virtual int32_t	sceneInput () const
virtual GeomOp *	sceneInputOp () const
	Return the sceneInput() input cast to a GeomOp, if possible. Default returns null.
virtual SceneOpI *	parentInputSceneOp () const
	Return the AxisOp::parentInput() input cast to a SceneOpI, if possible. Default returns null.
virtual SceneOpI *	constrainInputSceneOp () const
	Return the AxisOp::constrainInput() input cast to a SceneOpI, if possible. Default returns null.
SceneOpNodeI *	sceneOpNode () const
	Return the custom node owner.
virtual const usg::Token &	primarySchemaType () const =0
virtual usg::TokenArray	getAppliedApiSchemaTypes () const
virtual const usg::Path &	primPath () const
	Prim path to create/edit.
virtual const usg::Token &	parentPrimCreateType () const
virtual usg::Path	buildBasePrimPath () const
virtual const char *	primPathFilter () const
bool	readFromSceneEnabled () const
	Is the read from scene mode enabled?
bool	sourcePrimEnabled () const
	Returns true if there's a valid scene input prim to extract data from.
const usg::Path &	sourcePrimPath () const
	Prim path in source scene to read.
const SceneOpNodeI::ConfigParams &	params () const
	Returns the shared node configuration params.
const SceneOpNodeI::SceneData &	sceneData () const
	Returns the shared node scene data.
const usg::StageRef &	sourceStage () const
	Stage the prim data will be extracted from, if valid.
const usg::Prim &	sourcePrim () const
	Prim that data will be extracted from, if valid.
const AxisValsSet *	transformCache () const
const SceneOpNodeI::SharedData &	sharedData () const
	Returns the shared node data.
void	SetAuthoringProvider (Knob_Callback f, uint64_t componentId)
	Assigns the AuthoringProvider to the last created or stored knob.
void	SetAuthoringProvider (Knob_Callback f, Knob *knob, uint64_t componentId)
	Same, but with a knob specifier for a compound knob to supply, if needed.
void	SetAxisKnobAuthoringProvider (Knob_Callback f)
void	addAuthoringProvider (Knob *k, AuthoringProvider *provider)
	Add a value provider to the node shared list, which takes ownership of allocation.
AuthoringProvider *	getAuthoringProvider (Knob *k) const
	Retrieve an authoring provider by Knob.
const AuthoringProviderKnobMap &	getAuthoringProviderKnobMap () const
Knob *	opKnob (const char *name) const
virtual void	addImportOptionKnobs (Knob_Callback f)
virtual void	addXformExtractOptionKnobs (Knob_Callback f)
virtual void	addExportOptionKnobs (Knob_Callback f)
virtual void	addDisplayOptionsKnobs (Knob_Callback f)
	Adds the OpenGL display option controls.
virtual void	addLocalParentXformKnobs (Knob_Callback f, bool addSyncOptions=true)
virtual void	addLocalXformKnobs (Knob_Callback f, bool addSyncOptions=true)
virtual void	addTransformKnobs (Knob_Callback f, bool addSyncOptions=true)
virtual void	addConstrainOptionsKnobs (Knob_Callback f)
	Adds the constrain option knobs.
virtual void	addExtraFrontPanelKnobs (Knob_Callback f)
const char *	localParentTranslateKnobName () const
const char *	localParentRotateKnobName () const
const char *	localParentScaleKnobName () const
const char *	localAxisKnobName () const
const char *	worldMatrixKnobName () const
Knob *	getLocalParentTranslateKnob () const
	Return the internal 'local_parent_translate' XYZ knob.
Knob *	getLocalParentRotateKnob () const
	Return the internal 'local_parent_rotate' XYZ knob.
Knob *	getLocalParentScaleKnob () const
	Return the internal 'local_parent_scale' XYZ knob.
Axis_KnobI *	getLocalAxisKnob () const
	Return internal 'transform' Axis_Knob for set/get internal local transformation.
ArrayKnobI *	getWorldMatrixKnob () const
	Return internal 'world_matrix' Array_Knob.
virtual void	setReadOnlyLocalParent (bool readOnly)
	Make read only the knobs the translate/rotate/scale knobs for the local parent xform.
virtual void	setReadOnlyLocalXform (bool readOnly)
	Make read only the knobs in the local xform section.
void	KnobDefinesGeometry (const Knob_Closure &f)
void	KnobModifiesAttribValues (const Knob_Closure &f)
GeometryProviderI *	asGeometryProvider () override
	GeometryProviderI: Allow subclasses to gain access to sibling functions.
fdk::Hash	geometryComposeState () override
	GeometryProviderI: Returns the compose state of the exportLayer.
fdk::Hash	geometryEditVersionState () override
	GeometryProviderI: Returns the edit state of the exportLayer.
bool	geometryStateVaries () override
bool	canProvideGeometryStage () const override
	GeometryProviderI: Provides a fully constructed usg::Stage via buildGeometryStage().
bool	canProvideGeometryFor (const usg::Token &purpose) const override
void	buildGeometryStage (usg::StageRef &stage, const usg::ArgSet &requestArgs={}, const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet()) override
void	writeScenePrimsToLayer (usg::LayerRef &layer, bool appendTo, const fdk::FrameValueSet &times)
Public Member Functions inherited from DD::Image::GeometryProviderI
virtual GeometryProviderI *	asGeometryProvider ()=0
virtual Op *	getGeometryProviderOp ()=0
Op *	getGeometryProviderOp () const
	Same as getGeometryProviderOp() but const.
virtual fdk::Hash	geometryComposeState ()=0
virtual fdk::Hash	geometryEditVersionState ()=0
virtual bool	geometryStateVaries ()=0
virtual usg::LayerRef	buildGeometryLayer (bool appendTo=false, const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())=0
virtual usg::LayerRef	getGeometryLayer (const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())
virtual bool	canProvideGeometryStage () const
virtual bool	canProvideGeometryFor (const usg::Token &purpose) const
virtual void	buildGeometryStage (usg::StageRef &stage, const usg::ArgSet &requestArgs, const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())
virtual usg::StageRef	getGeometryStage (const fdk::TimeValueSet &sampleTimes=fdk::TimeValueSet())
Public Member Functions inherited from DD::Image::ConstrainOpI
	ConstrainOpI (fdk::FrameValue referenceFrame, fdk::AxisDirection defaultLookAxis=fdk::AxisDirection::Z_PLUS)
	ConstrainOpI (DD::Image::Op *op, fdk::AxisDirection defaultLookAxis=fdk::AxisDirection::Z_PLUS)
void	knobs (Knob_Callback f, Op *op)
int	knob_changed (Knob *k, Op *op)
const char *	input_label (char *buffer) const
	Returns the input label for the current constrain mode.
const char *	constraintKnobName () const
const char *	orientAxisKnobName () const
const char *	rotateXKnobName () const
const char *	rotateYKnobName () const
const char *	rotateZKnobName () const
const char *	strengthKnobName () const
const char *	applyTranslateKnobName () const
const char *	applyRotateKnobName () const
const char *	applyScaleKnobName () const
const char *	maintainOffsetFrameKnobName () const
const char *	maintainOffsetKnobName () const
const char *	setMaintainOffsetFrameToCurrentKnobName () const
ndk::ConstraintMatrixParams	getConstraintParametersFromKnobs (const OutputContext *context=nullptr) const
fdk::TimeValueSet	getNeededInputTimes (const fdk::TimeValueSet &requestedTimes) const
	Returns the times we need from inputs given the times that have been requested.
ndk::ConstraintMode	getConstraintType () const
	Gets the constraint type from the constraint knob.
bool	constraintMaintainOffset () const

Protected Member Functions
AuthoringProvider *	_createAuthoringProvider (Knob *k, uint64_t componentId) override
	Create the camera-specific providers.
fdk::Hash	buildSourceSceneState (const fdk::Hash &hash) override
	Append camera knob values that affect scene load state.
ndk::XformComponents	_getTransformComponentsAt (const OutputContext &context) const override
fdk::Mat4d	_getInputParentTransformAt (const OutputContext &context) const override
fdk::Mat4d	_getLocalParentAxisTransformAt (const OutputContext &context) const override
fdk::Mat4d	_getLocalAxisTransformAt (const OutputContext &context) const override
fdk::Mat4d	_getWorldTransformAt (const OutputContext &context) const override
virtual void	_updateDefaultKnobsForProjection (ProjectionFunc *projPlugin)
virtual void	_enableDefaultProjectionKnobs (bool enable)
int	_doProjectionFuncKnobChanged (Knob *, int callAgain)
	Called from knob_changed when projection selection is changed via knob interaction.
void	_writeScenePrims (usg::LayerRef &layer, bool appendTo, const fdk::TimeValueSet &times=fdk::TimeValueSet()) override
	SceneOpI: Subclass portion of writeScenePrims().
bool	_isLegacyAxisOp () const override
Protected Member Functions inherited from DD::Image::CameraOp
	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_length_ has been deprecated, use _params.optics.focalLength instead.") double focal_length_
	Deprecated, use _params.optics.focalLength instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("haperture_ has been deprecated, use _params.sensor.apertureSize.x instead.") double haperture_
	Deprecated, use _params.sensor.apertureSize.x instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("vaperture_ has been deprecated, use _params.sensor.apertureSize.y instead.") double vaperture_
	Deprecated, use _params.sensor.apertureSize.y instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("fstop_ has been deprecated, use _params.lensAperture.fStop instead.") double fstop_
	Deprecated, use _params.lensAperture.fStop instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("near_ has been deprecated, use _params.lensAperture.clipNearDistance instead.") double near_
	Deprecated, use _params.lensAperture.clipNearDistance instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("far_ has been deprecated, use _params.lensAperture.clipFarDistance instead.") double far_
	Deprecated, use _params.lensAperture.clipFarDistance instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_mode_ has been deprecated, use projectionMode() instead.") int projection_mode_
	Deprecated, use MultiProjectionCamera::projectionMode() instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("focal_point_ has been deprecated, use _params.optics.focusDistance instead.") double focal_point_
	Deprecated, use _params.optics.focusDistance instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("win_translate_ has been deprecated, use _params.sensor.apertureTranslate instead.") Vector2 win_translate_
	Deprecated, use _params.sensor.apertureTranslate instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("win_scale_ has been deprecated, use _params.sensor.apertureScale instead.") Vector2 win_scale_
	Deprecated, use _params.sensor.apertureScale instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("win_roll_ has been deprecated, use _params.sensor.apertureRotate instead.") double win_roll_
	Deprecated, use _params.sensor.apertureRotate instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_a_, use _params.optics.opticalDistortionA instead.") double lens_distort_a_
	Deprecated, use, use _params.optics.opticalDistortionA instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_b_, use _params.optics.opticalDistortionB instead.") double lens_distort_b_
	Deprecated, use, use _params.optics.opticalDistortionB instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_c_, use _params.optics.opticalDistortionC instead.") double lens_distort_c_
	Deprecated, use, use _params.optics.opticalDistortionC instead.
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_D_ has been deprecated") double lens_distort_D_
	Deprecated.
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distortion_ has been deprecated") double lens_distortion_
	Deprecated.
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_power_ has been deprecated") double lens_power_
	Deprecated.
	mFnDeprecatedLegacy3DSystemInNuke14 ("lens_distort_enabled_ has been deprecated") bool lens_distort_enabled_
	mFnDeprecatedLegacy3DSystemInNuke14 ("use_vertical_lock_ has been deprecated") bool use_vertical_lock_
	Deprecated.
	mFnDeprecatedLegacy3DSystemInNuke14 ("projection_ has been deprecated, use Mat4d _projectionMatrix instead.") Matrix4 projection_
	Camera's projection matrix - deprecated.
void	_validateCamera () override
bool	_setProjectionFuncPlugin (const char *projectionClassName)
	Sets _newProjectionPlugin. _projectionPlugin gets updated in _validate().
Protected Member Functions inherited from DD::Image::AxisOp
	mFnDeprecatedLegacy3DSystemInNuke14 ("axis_knob has been deprecated") Axis_KnobI *axis_knob
virtual ndk::XformComponents	_getTransformComponentsAt (const OutputContext &context) const
virtual fdk::Mat4d	_getInputParentTransformAt (const OutputContext &context) const
virtual fdk::Mat4d	_getLocalParentAxisTransformAt (const OutputContext &context) const
virtual fdk::Mat4d	_getLocalAxisTransformAt (const OutputContext &context) const
virtual fdk::Mat4d	_getWorldTransformAt (const OutputContext &context) const
	mFnDeprecatedLegacy3DSystemInNuke14 ("localtransform_ has been deprecated, use Mat4d AxisSceneOp::_localAxisMatrix instead.") Matrix4 localtransform_
	Local 'axis' matrix that Axis_Knob fills in - deprecated.
	mFnDeprecatedLegacy3DSystemInNuke14 ("local_ has been deprecated, use Mat4d _xformParams.local instead.") Matrix4 local_
	Local matrix after look at performed - deprecated.
	mFnDeprecatedLegacy3DSystemInNuke14 ("matrix_ has been deprecated, use Mat4d _xformParams.l2w instead.") Matrix4 matrix_
	Object matrix - local&parent - deprecated.
	mFnDeprecatedLegacy3DSystemInNuke14 ("imatrix_ has been deprecated, use Mat4d _xformParams.w2l instead.") Matrix4 imatrix_
	Inverse object matrix - deprecated.
Protected Member Functions inherited from DD::Image::Op
	Op (Node *node)
	The constructor is protected so only subclasses can create the base class.
virtual void	_setInput (int32_t input, const OpGraphLocation &connection, int32_t base, int32_t offset)
	The subclass-specific portion of setInput(). See that method for more info.
virtual void	_knobStorePrep (const OutputContext &opStoreContext)
	The subclass-specific portion of knobStorePrep(). See that method for more info.
virtual void	_knobStorePost (const OutputContext &opStoreContext, Hash &newOpHash, Hash &newOpEditVersionHash)
	The subclass-specific portion of knobStorePost(). See that method for more info.
virtual void	_invalidate ()
virtual void	_validate (bool for_real)
virtual void	_open ()
virtual void	_close ()
Op *	create (Node *node, const char *name)
Op *	create (const char *name)
HandlesMode	anyInputHandles (ViewerContext *)
	return if any of the inputs (recursively) wish to draw handles
HandlesMode	anyKnobHandles (ViewerContext *)
	return if any of the knobs on this node wish to draw handles
void	build_input_handles (ViewerContext *)
void	build_knob_handles (ViewerContext *)
void	disallowNoTrees ()
	Call this to tell the op that it should always have op trees for normal behaviour (for internal use)
virtual HandlesMode	doAnyHandles (ViewerContext *ctx)
virtual void	_setRecycling (bool recycling)
virtual PrevalidateResult	doPreValidate (ViewerContext *ctx=nullptr, PreValidateContext *=nullptr)
Protected Member Functions inherited from DD::Image::LookAt
void	perform_lookat (Matrix4 &concatMatrix, const Matrix4 &axisMatrix)
Protected Member Functions inherited from DD::Image::SceneOpI
virtual AuthoringProvider *	_createAuthoringProvider (Knob *k, uint64_t componentId)
virtual fdk::Hash	buildSourceSceneState (const fdk::Hash &hash)
virtual void	getExtractKeyRange (SceneOpNodeI::SharedData &data, fdk::TimeValue &firstKey, fdk::TimeValue &lastKey)
virtual bool	extractSceneData (SceneOpNodeI::SharedData &data, const fdk::TimeValueSet &addlSampleTimes=fdk::TimeValueSet())
virtual void	extractSceneXformData (SceneOpNodeI::SharedData &data, AxisValsArray &axisValsSamples, bool &isDefaultXforms, const fdk::TimeValueSet &addlSampleTimes=fdk::TimeValueSet()) const
virtual AxisVals	getXformDataAt (SceneOpNodeI::SharedData &data, const OutputContext &context) const
virtual void	_validateTransforms (bool for_real, ndk::XformParameters &outputXformParams)
virtual void	_buildLocalTransforms (const ndk::XformComponents &xformComponents, fdk::Mat4d &preConstraintXform, const ndk::ConstraintMatrixParams &constraintParams, ndk::XformParameters &finalLocalXforms) const
virtual bool	_buildConstraintParams (AxisOp *constrainSourceOp, const ndk::XformComponents &xformComponents, fdk::Mat4d &preConstraintXform, ndk::ConstraintMatrixParams &constraintParams) const
virtual bool	_getLocalParentTransformAnimation (fdk::TimeValueSet *keyTimes=nullptr, int32_t *nAnimatedExpressions=nullptr, int32_t view=-1) const
virtual bool	_getLocalTransformAnimation (fdk::TimeValueSet *keyTimes=nullptr, int32_t *nAnimatedExpressions=nullptr, int32_t view=-1) const
virtual const ndk::XformComponents &	_getSceneOpTransformComponents () const
	Return the transform components built _validateTransforms().
virtual ndk::XformComponents	_getSceneOpTransformComponentsAt (const OutputContext &context) const
	Calculate the transform components at a specific OutputContext.
virtual const fdk::Mat4d &	_getSceneOpInputParentTransform () const
	Return the input parent transform built in _validateTransforms().
virtual fdk::Mat4d	_getSceneOpInputParentTransformAt (const OutputContext &context) const
	Calculate the input parent transform at a specific OutputContext.
virtual const fdk::Mat4d &	_getSceneOpLocalParentAxisTransform () const
	Return the local parent axis transform built in _validateTransforms().
virtual fdk::Mat4d	_getSceneOpLocalParentAxisTransformAt (const OutputContext &context) const
	Calculate the local parent axis transform at a specific OutputContext.
virtual const fdk::Mat4d &	_getSceneOpParentTransform () const
	Return the total local parent transform built in _validateTransforms().
virtual const fdk::Mat4d &	_getSceneOpLocalAxisTransform () const
	Return the local axis transform built in _validateTransforms().
virtual fdk::Mat4d	_getSceneOpLocalAxisTransformAt (const OutputContext &context) const
	Calculate the local axis transform at a specific OutputContext.
virtual const fdk::Mat4d &	_getSceneOpLocalTransform () const
	Return the total local transform built in _validateTransforms().
virtual fdk::Mat4d	_getSceneOpWorldTransformAt (const OutputContext &context) const
void	_sceneOpResetTargetState ()
void	_sceneOpUpdateScenePrimState (const DD::Image::Hash &newOpEditVersionHash)
void	_appendKnobToDefineGeometryTarget (Knob *k)
void	_appendKnobToModifyValuesTarget (Knob *k)
virtual int	_sceneOpKnobChanged (Knob *k, int32_t callAgain)
usg::LayerRef	buildGeometryLayer (bool appendTo, const fdk::TimeValueSet &sampleTimes) override
virtual void	_createParentPrims (usg::LayerRef &layer, const usg::Path &basePrimPath)
virtual void	_writeScenePrims (usg::LayerRef &layer, bool appendTo, const fdk::TimeValueSet &times=fdk::TimeValueSet())=0
virtual void	_writeTransformOps (usg::LayerRef &layer, usg::XformablePrim &xformable, bool appendTo, const fdk::FrameValueSet &times=fdk::FrameValueSet())
bool	writeKnob (const char *knobName, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyTypeHint) const
bool	writeKnob (const char *knobName, bool ignoreDefaultTest, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyTypeHint) const
bool	writeKnob (Knob *knob, bool ignoreDefaultTest, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyTypeHint) const
	Same but with a Knob*.
bool	writeKnob (const ArrayKnobRefList &knobRefs, bool ignoreDefaultTest, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName, usg::Value::Type targetPropertyType) const
bool	writeInputOpAsAssetPath (int32_t input, const fdk::FrameValueSet &times, usg::Prim &outputPrim, const usg::Token &targetPropertyName) const
	Write an input Op connection as an AssetPath, typically for texture sources.

Protected Attributes
bool	_useSceneScaleMetadata
	Use incoming scene world scale metadata for lens value conversions.
Protected Attributes inherited from DD::Image::CameraOp
int32_t	_projectionSelection
	Projection menu knob index.
ShutterControls	_shutter
	Shutter controls which may be referenced by a renderer.
double	_shutterBias
	Weights the shutter samples towards shutter close with a power function.
bool	_glWorldSizeIcon
	Always draw the camera icon at the 'real' world size (defined by worldToLens factor)
bool	_glSolidFrustum
	Draw the camera frustum as solid.
bool	_glInsideFrustum
	Indicated whether to draw the frustum as an inside or outside box.
double	_worldToMeters
	Is converted to sensor.sceneToCameraFactor.
ProjectionFunc *	_newProjectionPlugin
	New projection plugin selected, non-null if changed.
ProjectionFunc *	_projectionPlugin
	Projection func plugin to use, if applicable.
Protected Attributes inherited from DD::Image::AxisOp
ndk::XformParameters	_xformParams
	Axis xform params.
union {
bool   _xformInversionValid
	Is _xformParams.w2l valid?
};
int	display3d_
	GUI display setting - deprecate or translate to new system?
union {
bool   selectable_
	GUI selectable checkmark - deprecate or translate to new system?
bool   _selectable
};
bool	_editable
	Can the user change the knobs? (i.e. knobs not disabled)
WorldMatrixProvider *	_worldMatrixProvider
	'world_matrix' output knob
Protected Attributes inherited from DD::Image::Op
bool	_haveHash
	whether the _hash actually has been set by a call to invalidate(Hash) ever.
bool	_varyingOutputHash
	whether the hash value will animate over time
Hash	_editVersionHash
	Op's current edit version state, usually the combination of input Op & knob edit version states.
Protected Attributes inherited from DD::Image::LookAt
Matrix4	lookat_matrix_
	Matrix for rotating to look at the look input.
Matrix4	my_local
	For the Axis_Knob to store into.
bool	my_transform_normals
int	my_lookat_axis
bool	my_rotate_x
bool	my_rotate_y
bool	my_rotate_z
bool	my_lookat_use_quat
double	my_lookat_strength
Protected Attributes inherited from DD::Image::SceneOpI
ndk::XformComponents	_xformComponents
	Transform components.
fdk::Vec3d	_localParentTranslate
	Local-parent translation knob value.
fdk::Vec3d	_localParentRotate
	Local-parent rotate knob value.
fdk::Vec3d	_localParentScale
	Local-parent scale knob value.
SnapKnobs	_snapKnobs
	Snap menu options.
bool	_applyConstraintToParent
	Snap/constraint is applied to the local parent, not the local axis.
DD::Image::Hash	_parentHash
	Does parent path or transform need to be updated?
DD::Image::Hash	_constrainHash
	The hash for the constrain input set in validate().
WorldMatrixProvider *	_worldXformProvider
	'world_matrix' output knob - valid ONLY on firstOp()!
SceneOpNodeI *	_sceneOpNode
	Node owner, set by SceneOpNode.
Protected Attributes inherited from DD::Image::ConstrainOpI
Knob *	_constraintKnob
Knob *	_lookAxisKnob
Knob *	_strengthKnob
Knob *	_rotateXKnob
Knob *	_rotateYKnob
Knob *	_rotateZKnob
Knob *	_applyTranslateKnob
Knob *	_applyRotateKnob
Knob *	_applyScaleKnob
Knob *	_maintainOffsetFrameKnob
Knob *	_maintainOffsetKnob
Knob *	_setMaintainOffsetFrameToCurrentKnob
int	_constraint
fdk::AxisDirection	_lookAxis
bool	_rotateX
bool	_rotateY
bool	_rotateZ
double	_strength
bool	_applyTranslate
bool	_applyRotate
bool	_applyScale
bool	_maintainOffset
float	_maintainOffsetFrame

Additional Inherited Members
Static Public Member Functions inherited from DD::Image::CameraOp
static CameraOp *	default_camera ()
static void	ToFormat (fdk::Mat4f &, const Format *)
static void	FromFormat (fdk::Mat4f &, const Format *)
Static Public Member Functions inherited from DD::Image::AxisOp
static ndk::XformComponents	GetTransformComponentsAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the transform components of axisOp at a specific OutputContext.
static fdk::Mat4d	GetInputParentTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the input parent transform of axisOp at a specific OutputContext.
static fdk::Mat4d	GetLocalParentAxisTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the local parent axis transform of axisOp at a specific OutputContext.
static fdk::Mat4d	GetLocalAxisTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the local axis transform of axisOp at a specific OutputContext.
static fdk::Mat4d	GetWorldTransformAt (const AxisOp *axisOp, const OutputContext &context)
	Calculate the world transform of axisOp at a specific OutputContext.
Static Public Member Functions inherited from DD::Image::Op
static int	treeVersion ()
static bool	nukeBusy ()
	is nuke processing something on a parallel thread?
static Op *	create (Node *node, const char *name, Op *p_op)
static Op *	create (const char *name, Op *p_op)
static void	resetTimers ()
	reset all the performance timers
static void	setTimingEnabled (bool enabled)
	turn performance timing on or off
static bool	isTimingEnabled ()
	return whether performance timing is on or not
static const char *	script_result (bool py=false)
static void	script_unlock ()
static Op *	BuildOpAt (Op *baseOp, const OutputContext &context, GenerateType type=EXECUTABLE_SKIP)
static Op *	retrieveOp (const char *node_path, GenerateType generate_op_type, const OutputContext *generate_op_context=nullptr)
static Op *	retrieveOp (const char *node_path, const Hash &op_hash, int tree_version)
static void	all_forget_request ()
static void	new_request_pass ()
static double	callPendingClose (double seconds)
static void	clearPendingClose ()
static Op *	error_op ()
static const char *	error_message ()
static void	clearAbortAndError ()
	To be removed.
static void	SetDefaultPopUpEnable (bool lEnable)
	This is used by Nuke to indicate when ops using the default pop-up scheme should show pop-ups. Not recommended for customisation.
static std::string	getVersionInfoStr (const VersionInfo &versionInfo)
	Helper function to convert a VersionInfo tuple into a string.
static const Description *	find_description (const char *name, const Op *op_)
static int	message_f (char t, const char *,...)
static int	message_vf (char t, const char *, va_list)
static void	add_timeout (float t, TimeoutHandler, void *v=nullptr)
static void	repeat_timeout (float t, TimeoutHandler, void *=nullptr)
static bool	has_timeout (TimeoutHandler, void *=nullptr)
static void	remove_timeout (TimeoutHandler, void *=nullptr)
Static Public Member Functions inherited from DD::Image::SceneOpI
static std::string	localAxisXformOpName (const Op *op)
	Returns the name of the local axis xformOp for the xform given by Op.
static std::string	localParentXformOpName (const Op *op)
	Returns the name of the local parent xformOp for the xform given by Op.
Static Public Member Functions inherited from DD::Image::GeometryProviderI
static void	BuildStage (usg::StageRef &stage, const usg::ArgSet &requestArgs, const OpGraphLocation &geometryProviderOp, const fdk::TimeValueSet &sampleTimes)
static void	BuildStage (usg::StageRef &stage, const OpGraphLocation &geometryProviderOp, const fdk::TimeValueSet &sampleTimes)
	Same as buildStage(OpSet) but with no request args.
static void	BuildStage (usg::StageRef &stage, const OpGraphLocation &geometryProviderOp, const fdk::TimeValue &sampleTime)
	Same as buildStage(OpSet) but with only one sample time.
Static Public Member Functions inherited from DD::Image::ConstrainOpI
static fdk::AxisDirection	GetLookAxis (int lookAxisIndex)
Public Attributes inherited from DD::Image::AxisOp
Matrix4 &	const
Public Attributes inherited from DD::Image::Op
const MetaData::Bundle *	metaCache
Hash	metaCacheHash
Op *	op
Op int	input
Op int int	offset
Static Public Attributes inherited from DD::Image::CameraOp
static const char *	projection_modes []
static const char *	projection_modes_renderer []
Static Public Attributes inherited from DD::Image::Op
static unsigned	current_request_pass
static void(*	node_redraw_cb )(const Op *)
static void(*	print_name_cb )(std::ostream &, const Op *)
static void(*	status_callback )(const Op *, float, float, const char *, StatusFlags)
static const int	kInvalidVersion
static const VersionInfo	kUnsetVersion
Protected Types inherited from DD::Image::LookAt
enum	{   kAxisZPlus , kAxisZMinus , kAxisYPlus , kAxisYMinus ,   kAxisXPlus , kAxisXMinus }
Static Protected Member Functions inherited from DD::Image::SceneOpI
static bool	BuildConstraintParamsAt (const SceneOpI *sceneOp, const OutputContext &context, const ndk::XformComponents &xformComponents, fdk::Mat4d &preConstraintXform, ndk::ConstraintMatrixParams &constraintParams)
Static Protected Attributes inherited from DD::Image::LookAt
static const char *const	ms_lookat_axis_choices []

Detailed Description

Op that defines a 3D camera which can be imported and exported.

Member Enumeration Documentation

anonymous enum

anonymous enum

Which component of the camera to provide. CameraProvider subclass can extend this to support additional custom components (stereo vars, rigging info, etc) to expose via output knobs.

Member Function Documentation

cameraSceneOp() [1/2]

const CameraSceneOp * DD::Image::CameraSceneOp::cameraSceneOp ( ) const

inlineoverridevirtual

Cast to a CameraSceneOp. This is much cheaper and safer than using dynamic_cast.

Reimplemented from DD::Image::Op.

cameraSceneOp() [2/2]

CameraSceneOp * DD::Image::CameraSceneOp::cameraSceneOp ( )

inlineoverridevirtual

Reimplemented from DD::Image::Op.

parentInput()

int32_t DD::Image::CameraSceneOp::parentInput ( ) const

inlineoverridevirtual

AxisOp: Return the node input to use for the parent axis source. Defaults to input 0.

Reimplemented from DD::Image::AxisOp.

Referenced by parentInputSceneOp().

sceneInput()

int32_t DD::Image::CameraSceneOp::sceneInput ( ) const

inlineoverridevirtual

SceneOpI: Return the node input to use for the scene source. Defaults to input 1.

Reimplemented from DD::Image::SceneOpI.

Referenced by sceneInputOp().

constrainInput()

int32_t DD::Image::CameraSceneOp::constrainInput ( ) const

inlineoverridevirtual

SceneOpI: Return the node input to use for the parent axis source. Defaults to input 2.

Reimplemented from DD::Image::AxisOp.

Referenced by constrainInputSceneOp().

parentInputSceneOp()

SceneOpI * CameraSceneOp::parentInputSceneOp ( ) const

overridevirtual

SceneOpI: Return the parentInput() input cast to a SceneOpI, if possible.

Reimplemented from DD::Image::SceneOpI.

References parentInput().

sceneInputOp()

GeomOp * CameraSceneOp::sceneInputOp ( ) const

overridevirtual

SceneOpI: Return the sceneInput() input cast to a GeomOp, if possible.

Reimplemented from DD::Image::SceneOpI.

References sceneInput().

constrainInputSceneOp()

SceneOpI * CameraSceneOp::constrainInputSceneOp ( ) const

overridevirtual

SceneOpI: Return the AxisOp::constrainInput() input cast to a SceneOpI, if possible.

Reimplemented from DD::Image::SceneOpI.

References constrainInput().

primarySchemaType()

const usg::Token & DD::Image::CameraSceneOp::primarySchemaType ( ) const

inlineoverridevirtual

SceneOpI: Return the name of the primary USD schema this node is handling.

Implements DD::Image::SceneOpI.

primPathFilter()

const char * DD::Image::CameraSceneOp::primPathFilter ( ) const

inlineoverridevirtual

SceneOpI: Return the default filter string to apply in the prim path knob.

Reimplemented from DD::Image::SceneOpI.

minimum_inputs()

int CameraSceneOp::minimum_inputs ( ) const

overridevirtual

Default is 3: axis, scene and constrain.

Reimplemented from DD::Image::AxisOp.

maximum_inputs()

int CameraSceneOp::maximum_inputs ( ) const

overridevirtual

Default is 3: axis, scene and constrain.

Reimplemented from DD::Image::AxisOp.

optional_input()

int CameraSceneOp::optional_input ( ) const

overridevirtual

Optional input index is the scene-importer input. This returns (maximum_inputs()-1).

Reimplemented from DD::Image::AxisOp.

References DD::Image::Op::optional_input().

test_input()

bool CameraSceneOp::test_input ( int  node_input, Op *  op  ) const

overridevirtual

AxisOp and null works on 0, and GeomOp or null on input 1.

Reimplemented from DD::Image::AxisOp.

default_input()

Op * CameraSceneOp::default_input ( int  node_input ) const

overridevirtual

Returns null for all inputs. Override this so Op::test_input() doesn't produce warnings.

Reimplemented from DD::Image::AxisOp.

input_label()

const char * CameraSceneOp::input_label ( int  node_input, char *  buf  ) const

overridevirtual

Reimplemented from DD::Image::AxisOp.

knobs()

void CameraSceneOp::knobs ( Knob_Callback  f )

overridevirtual

Default knobs puts the transform controls on the front tab, and the projection, shutter, and lens controls on tab 'Projection'.

Reimplemented from DD::Image::CameraOp.

References DD::Image::SceneOpI::_sceneOpNode, DD::Image::SceneOpI::addConstrainOptionsKnobs(), addDisplayOptionsKnobs(), DD::Image::SceneOpI::addExportOptionKnobs(), addExtraFrontPanelKnobs(), DD::Image::SceneOpI::addImportOptionKnobs(), DD::Image::SceneOpI::addTransformKnobs(), DD::Image::SceneOpI::addXformExtractOptionKnobs(), DD::Image::BeginClosedGroup(), DD::Image::Divider(), DD::Image::EndGroup(), and DD::Image::Tab_knob().

_knobStorePrep()

void CameraSceneOp::_knobStorePrep ( const OutputContext &  opStoreContext )

overridevirtual

Called by Nuke just BEFORE Op::knobs(EARLY_STORE). This is used to update the scene states.

We use _knobStorePrep() to reset the exporter local GeomStateTargets that are built from Knobs during the store pass.

Reimplemented from DD::Image::Op.

References DD::Image::Op::_knobStorePrep(), and DD::Image::SceneOpI::_sceneOpResetTargetState().

_knobStorePost()

void CameraSceneOp::_knobStorePost ( const OutputContext &  opStoreContext, Hash &  newOpHash, Hash &  newOpEditVersionHash  )

overridevirtual

Called by Nuke immediately AFTER Op::knobs(). This is used to update the scene states.

We use _knobStorePost() to update the imported state right after knobs() has been called, but before append() or _validate().

Reimplemented from DD::Image::Op.

References DD::Image::Op::_knobStorePost(), and DD::Image::SceneOpI::_sceneOpUpdateScenePrimState().

projectionSelectorKnob()

Knob * CameraSceneOp::projectionSelectorKnob ( ) const

overridevirtual

Return the knob which provides projection selection.

Reimplemented from DD::Image::CameraOp.

References DD::Image::Op::knob().

Referenced by _writeScenePrims(), and projectionFuncClassName().

projectionFuncClassName()

const char * CameraSceneOp::projectionFuncClassName ( Knob *  selectorKnob = nullptr ) const

overridevirtual

Retrieves the class name from the projectionSelectorKnob()'s current value in the enumeration list. Default implementation supports either an EnumerationKnob's or StringKnob's current value. selectorKnob is optional to override the default retrieval of the selector Knob from projectionSelectorKnob().

Reimplemented from DD::Image::CameraOp.

References DD::Image::StringKnobI::get_text(), DD::Image::Enumeration_KnobI::getItemValueString(), DD::Image::Enumeration_KnobI::getSelectedItemIndex(), DD::Image::Op::nodeName(), DD::Image::Op::outputContext(), and projectionSelectorKnob().

Referenced by _writeScenePrims(), and addProjectionKnobs().

SetShutterKnobAuthoringProvider()

void CameraSceneOp::SetShutterKnobAuthoringProvider	(	Knob_Callback	f,
		ShutterControls &	shutter
	)

Assigns AuthoringProviders to the shutter component knobs using the SHUTTER_* component ids. Always call this right after called ShutterControls.knobs() as the Knob* stored in shutter is only valid for this node during f.makeKnobs()==true mode.

References _createAuthoringProvider(), and DD::Image::SceneOpI::addAuthoringProvider().

Referenced by addShutterKnobs().

addExtraFrontPanelKnobs()

void CameraSceneOp::addExtraFrontPanelKnobs ( Knob_Callback  f )

overridevirtual

Adds additional front-panel knobs, primarily the projection controls. Called before addTransformKnobs().

Reimplemented from DD::Image::SceneOpI.

References DD::Image::CameraOp::_newProjectionPlugin, DD::Image::CameraOp::_projectionPlugin, _updateDefaultKnobsForProjection(), DD::Image::Op::add_knobs(), addLensKnobs(), addProjectionKnobs(), addShutterKnobs(), addWindowKnobs(), DD::Image::BeginGroup(), DD::Image::Divider(), and DD::Image::EndGroup().

Referenced by knobs().

addDisplayOptionsKnobs()

void CameraSceneOp::addDisplayOptionsKnobs ( Knob_Callback  f )

overridevirtual

Adds the frustum visualization controls.

Reimplemented from DD::Image::SceneOpI.

References DD::Image::AxisOp::_editable, DD::Image::CameraOp::_glWorldSizeIcon, DD::Image::SceneOpI::addDisplayOptionsKnobs(), DD::Image::Bool_knob(), DD::Image::AxisOp::display3d_, DD::Image::display3d_names_source, DD::Image::Enumeration_knob(), DD::Image::Newline(), DD::Image::Knob::NO_ANIMATION, DD::Image::SetFlags(), DD::Image::Knob::STARTLINE, and DD::Image::Tooltip().

Referenced by knobs().

_validate()

void CameraSceneOp::_validate ( bool  for_real )

overridevirtual

Reimplemented from DD::Image::CameraOp.

knob_changed()

int CameraSceneOp::knob_changed ( Knob *  k )

overridevirtual

Reimplemented from DD::Image::CameraOp.

localParentAxisTransform()

const fdk::Mat4d & DD::Image::CameraSceneOp::localParentAxisTransform ( ) const

inlineoverridevirtual

Local parent axis transform matrix.

Reimplemented from DD::Image::AxisOp.

setLocalParentAxisTransform()

void DD::Image::CameraSceneOp::setLocalParentAxisTransform ( const fdk::Mat4d &  localParent )

inlineoverridevirtual

Set the local parent axis transform matrix. Note this only persists until the next knobs()/validate() pass.

Reimplemented from DD::Image::AxisOp.

localAxisTransform()

const fdk::Mat4d & DD::Image::CameraSceneOp::localAxisTransform ( ) const

inlineoverridevirtual

Result of the local-axis TRS Axis_Knob (without lookat rotations.) Calculated in _validateTransforms().

Reimplemented from DD::Image::AxisOp.

setLocalAxisTransform()

void DD::Image::CameraSceneOp::setLocalAxisTransform ( const fdk::Mat4d &  localAxis )

inlineoverridevirtual

Set the local axis transform matrix. Note this only persists until the next knobs()/validate() pass.

Reimplemented from DD::Image::AxisOp.

localParentTransformVaries()

bool DD::Image::CameraSceneOp::localParentTransformVaries ( ) const

inlineoverridevirtual

Does the local parent transform animate? This is only an indicator that the transform -MAY- vary in time, not that its value actually does.

Reimplemented from DD::Image::AxisOp.

localTransformVaries()

bool DD::Image::CameraSceneOp::localTransformVaries ( ) const

inlineoverridevirtual

Does the local transform animate? This is only an indicator that the transform -MAY- vary in time, not that its value actually does.

Reimplemented from DD::Image::AxisOp.

doAnyHandles()

Op::HandlesMode CameraSceneOp::doAnyHandles ( ViewerContext *  ctx )

overridevirtual

Reimplemented from DD::Image::CameraOp.

build_handles()

void CameraSceneOp::build_handles ( ViewerContext *  ctx )

overridevirtual

Reimplemented from DD::Image::CameraOp.

draw_handle()

void CameraSceneOp::draw_handle ( ViewerContext *  ctx )

overridevirtual

Draws a lovely camera, I think it is a Mitchell.

Reimplemented from DD::Image::CameraOp.

References DD::Image::CameraOp::_glSolidFrustum, DD::Image::CameraOp::_glWorldSizeIcon, DD::Image::AxisOp::_xformParams, DD::Image::ViewerContext::display3d(), DD::Image::ViewerContext::draw_hidden_lines(), DD::Image::DRAW_OPAQUE, DD::Image::ViewerContext::draw_solid(), DD::Image::DRAW_STIPPLED, DD::Image::ViewerContext::draw_unpickable_lines(), drawCameraIcon(), drawNodeName(), DD::Image::ViewerContext::event(), DD::Image::ViewerContext::fg_color(), DD::Image::glColor(), DD::Image::ViewerContext::hit_detect(), DD::Image::ViewerContext::icon_size(), DD::Image::CameraOp::isBaseProjectionLinear(), DD::Image::ViewerContext::modelmatrix, DD::Image::ViewerContext::node_color(), DD::Image::Op::node_selected(), DD::Image::Op::nodeName(), DD::Image::ViewerContext::pImpl(), DD::Image::CameraOp::projectionModeMatrix(), DD::Image::PUSH, DD::Image::ViewerContext::selected_color(), DD::Image::style_needs_wireframe(), DD::Image::ViewerContext::viewer_mode(), and DD::Image::VIEWER_PERSP.

drawAperture()

void CameraSceneOp::drawAperture	(	const fdk::Vec3d &	P,
		bool	dashed_lines = false
	)

Draw the aperture rectangle in millimeters, centered on xyz position P.

Draw the aperture rectangle in millimeters, centered on 'P'.

drawSolidFrustum()

void CameraSceneOp::drawSolidFrustum	(	const fdk::Vec3d &	near_corner,
		const fdk::Vec3d &	far_corner
	)

Draw the camera's frustum.

Draw the camera's frustum.

drawWireFrustum()

void CameraSceneOp::drawWireFrustum	(	const fdk::Vec3d &	near_corner,
		const fdk::Vec3d &	far_corner,
		bool	dashed_lines = false
	)

Draw the camera's frustum outline, dashed if 'dashed_lines'=true.

Draw the camera's frustum.

getAxisOp()

AxisOp * DD::Image::CameraSceneOp::getAxisOp ( )

inlineoverridevirtual

SceneOpI: Return the AxisOp the interface is attached to.

Implements DD::Image::SceneOpI.

sceneOpI() [1/2]

SceneOpI * DD::Image::CameraSceneOp::sceneOpI ( )

inlineoverridevirtual

Cast to a SceneOpI.

Reimplemented from DD::Image::Op.

sceneOpI() [2/2]

const SceneOpI * DD::Image::CameraSceneOp::sceneOpI ( ) const

inlineoverridevirtual

Reimplemented from DD::Image::Op.

getGeometryProviderOp()

Op * DD::Image::CameraSceneOp::getGeometryProviderOp ( )

inlineoverridevirtual

GeometryProviderI: Return the Op the interface is attached to.

Implements DD::Image::GeometryProviderI.

geometryProvider() [1/2]

GeometryProviderI * DD::Image::CameraSceneOp::geometryProvider ( )

inlineoverridevirtual

Cast to a GeometryProviderI interface. This is much cheaper and safer than using dynamic_cast.

Reimplemented from DD::Image::Op.

geometryProvider() [2/2]

const GeometryProviderI * DD::Image::CameraSceneOp::geometryProvider ( ) const

inlineoverridevirtual

Reimplemented from DD::Image::Op.

buildCameraSchemaPrimPath()

usg::Path CameraSceneOp::buildCameraSchemaPrimPath ( ) const

virtual

Builds a path from buildBasePrimPath(), appending the Node displayName() to use as the camera schema's prim name.

For example if the Node class name is 'MyFisheyeCamera_v4' we want it to show up in the scenegraph as 'MyFisheyeCamera', while the camera schema name may be 'FisheyeCamera'.

References DD::Image::SceneOpI::buildBasePrimPath().

Referenced by _writeScenePrims(), and buildBasePrimPath().

buildBasePrimPath()

usg::Path CameraSceneOp::buildBasePrimPath ( ) const

overridevirtual

SceneOpI: Prepends the parent connection if there is one.

Reimplemented from DD::Image::SceneOpI.

References buildCameraSchemaPrimPath().

getExtractKeyRange()

void CameraSceneOp::getExtractKeyRange ( SceneOpNodeI::SharedData &  data, fdk::TimeValue &  firstKey, fdk::TimeValue &  lastKey  )

overridevirtual

Reimplemented from DD::Image::SceneOpI.

isBaseCameraComponent()

bool CameraSceneOp::isBaseCameraComponent ( uint64_t  componentId ) const

virtual

Return true if the component id is a base camera component shared by most cameras. Default implementation tests if id is within range PROJECTION...LAST_BASE_CAMERA_PARAM.

Referenced by _createAuthoringProvider().

isTypedCameraComponent()

virtual bool DD::Image::CameraSceneOp::isTypedCameraComponent ( uint64_t  componentId ) const

inlinevirtual

Return true if the component id is a typed camera component. Default implmentation returns false.

getCameraComponentAt()

bool CameraSceneOp::getCameraComponentAt ( const usg::StageRef &  stage, const usg::CameraPrim &  cameraPrim, const OutputContext &  context, uint64_t  componentId, double *  values, size_t  nValues  ) const

virtual

Retrieve the camera component value for a single time sample at OutputContext. Component value element count must not exceed nValues. If element count is less than nValues then fill the remaining elements with an appropriate default.

References _useSceneScaleMetadata, DD::Image::Op::close(), DD::Image::Op::open(), DD::Image::RoundToFourDecimalPlaces(), and DD::Image::RoundToThreeDecimalPlaces().

_createAuthoringProvider()

AuthoringProvider * CameraSceneOp::_createAuthoringProvider ( Knob *  k, uint64_t  componentId  )

overrideprotectedvirtual

Create the camera-specific providers.

Reimplemented from DD::Image::SceneOpI.

References DD::Image::SceneOpI::_createAuthoringProvider(), and isBaseCameraComponent().

Referenced by SetShutterKnobAuthoringProvider().

buildSourceSceneState()

fdk::Hash CameraSceneOp::buildSourceSceneState ( const fdk::Hash &  hash )

overrideprotectedvirtual

Append camera knob values that affect scene load state.

Reimplemented from DD::Image::SceneOpI.

References _useSceneScaleMetadata, and DD::Image::Op::hash().

_getTransformComponentsAt()

ndk::XformComponents CameraSceneOp::_getTransformComponentsAt ( const OutputContext &  context ) const

overrideprotectedvirtual

Calculate the transform components of this node at a specific OutputContext. Subclass implementation of GetTransformComponentsAt(AxisOp), redirects to SceneOpI::_getSceneOpTransformComponentsAt().

Reimplemented from DD::Image::AxisOp.

References DD::Image::SceneOpI::_getSceneOpTransformComponentsAt().

_getInputParentTransformAt()

Mat4d CameraSceneOp::_getInputParentTransformAt ( const OutputContext &  context ) const

overrideprotectedvirtual

Calculate the input parent transform of this node at a specific OutputContext. Subclass implementation of GetInputParentTransformAt(AxisOp), redirects to SceneOpI::_getSceneOpInputParentTransformAt().

Reimplemented from DD::Image::AxisOp.

References DD::Image::SceneOpI::_getSceneOpInputParentTransformAt().

_getLocalParentAxisTransformAt()

Mat4d CameraSceneOp::_getLocalParentAxisTransformAt ( const OutputContext &  context ) const

overrideprotectedvirtual

Calculate the local parent transform of this node at a specific OutputContext. Subclass implementation of GetLocalParentAxisTransformAt(AxisOp), redirects to SceneOpI::_getSceneOpLocalParentAxisTransformAt().

Reimplemented from DD::Image::AxisOp.

References DD::Image::SceneOpI::_getSceneOpLocalParentAxisTransformAt().

_getLocalAxisTransformAt()

Mat4d CameraSceneOp::_getLocalAxisTransformAt ( const OutputContext &  context ) const

overrideprotectedvirtual

Calculate the local axis transform of this node at a specific OutputContext. Subclass implementation of GetLocalAxisTransformAt(AxisOp), redirects to SceneOpI::_getSceneOpLocalAxisTransformAt().

Reimplemented from DD::Image::AxisOp.

References DD::Image::SceneOpI::_getSceneOpLocalAxisTransformAt().

_getWorldTransformAt()

Mat4d CameraSceneOp::_getWorldTransformAt ( const OutputContext &  context ) const

overrideprotectedvirtual

Calculate the world transform of this node at a specific OutputContext. Subclass implementation of GetWorldTransformAt(AxisOp), redirects to SceneOpI::_getSceneOpWorldTransformAt().

Reimplemented from DD::Image::AxisOp.

References DD::Image::SceneOpI::_getSceneOpWorldTransformAt().

_updateDefaultKnobsForProjection()

void CameraSceneOp::_updateDefaultKnobsForProjection ( ProjectionFunc *  projPlugin )

protectedvirtual

Calls _enableDefaultProjectionKnobs based on the projPlugin's needsDefaultCameraOpKnobs and shows/hides a divider knob before the custom projection knobs based on if the projPlugin has custom knobs to add.

References _enableDefaultProjectionKnobs(), DD::Image::Op::knob(), DD::Image::ProjectionFunc::needsDefaultCameraOpKnobs(), and DD::Image::Knob::visible().

Referenced by addExtraFrontPanelKnobs().

_enableDefaultProjectionKnobs()

void CameraSceneOp::_enableDefaultProjectionKnobs ( bool  enable )

protectedvirtual

Enables/Disables the default knobs on the projection tab for the CameraOp. This function is called from _updateDefaultKnobsForProjection.

References DD::Image::Knob::enable(), and DD::Image::Op::knob().

Referenced by _updateDefaultKnobsForProjection().

_writeScenePrims()

void CameraSceneOp::_writeScenePrims ( usg::LayerRef &  layer, bool  appendTo, const fdk::TimeValueSet &  times = fdk::TimeValueSet()  )

overrideprotectedvirtual

SceneOpI: Subclass portion of writeScenePrims().

Implements DD::Image::SceneOpI.

References DD::Image::SceneOpI::_createParentPrims(), DD::Image::SceneOpI::_sceneOpNode, DD::Image::CameraOp::_shutter, DD::Image::CameraOp::_worldToMeters, DD::Image::SceneOpI::_writeTransformOps(), buildCameraSchemaPrimPath(), DD::Image::ShutterControls::calcOffset(), DD::Image::Knob::get(), DD::Image::ShutterControls::getDuration(), DD::Image::Op::knob(), DD::Image::Op::nodeName(), DD::Image::Op::parent(), DD::Image::AxisOp::parentInputOp(), projectionFuncClassName(), projectionSelectorKnob(), and DD::Image::SceneOpI::writeKnob().
